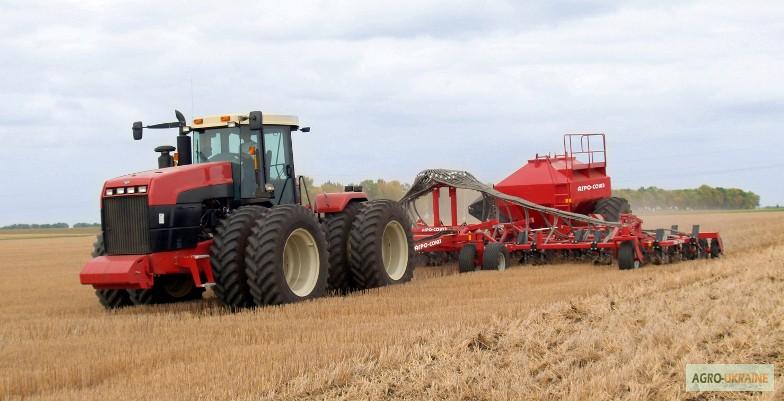

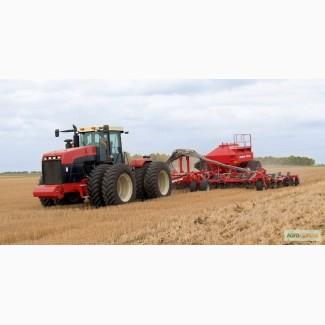

Agro-Soyuz ATD 9.35 anchor planter, Kievskaya region.

High-performance anchor seed drills "Agro-Soyuz ATD 9.35" in one pass carry out sowing (including stubble), applied fertilizer exactly under the sowing horizon and rolling.
The combination of these operations leads to a reduction in soil compaction, a reduction in sowing time, and an economy of fuel and lubricants.
The sowing complex ATD 9.35 consists of a pneumatic seeder with 4 rows of coulters, rollingwheels and a hopper (for seeds and fertilizer).
The double coulter "duet" provides uniform wide-band sowing on 20 cm with a sowing depth of up to 7 cm, increasing the feeding area of each sprout by 3-4 times, which increases the overall yield.
The seeder is equipped with safety blocks that protect coulters from damage.
To work in fields with a large amount of crop residues, the seed drills are optionally equipped with split discsдисками.Disks perfectly cut the large harvest residues of corn and sunflower, ensuring high-quality sowing.
The sowing device is a reel. Allows sowing of various types of seed material - cereal, coarse-grained, small-seeded (grain size - from 1 to 10 mm).
The control system with the help of special sensors installed on the seed pipes, in the seed hopper, as well as on the sowing coils, monitors not only each seed pipe, but also each pneumatic hose for the supply of granular fertilizer.(//tractor-service.com)

Working width - 9.8 m.
Number of coulters - 28.
The distance between coulters is 0.35 m.
Bunker (two-section) - 10.5 cubic meters.
The required power of the tractor is 320-350 hp.

Producer - OOO "Proizvodstvennoe predpriyatie "Agro-Soyuz" (Dnipropetrovsk).
