Z and H type smoking carts, Lviv region.

"H smoking frame"
Intended for smoking meat products on sticks in smoking chambers. For smoking meat, sausages or fish. The frame is made of stainless rectangular profiles. The design allows easy loading and unloading of products. Depending on the variation, you can order frames with the number of shelves from 4 to 11.
Technical characteristics:
Dimensions (mm): 1000x1000x2000
Material: AISI 304/AISI 321 food-grade stainless acid-resistant steel
Number of shelves: 4-11 pcs.
Wheels heat-resistant (polyamide) with a melting temperature of 250 C°; D160-200mm. 3 pcs. from each side of the cart
The thickness of the shelf is 2 mm.
The number of slots for sticks on the shelf is 14 and 15 pcs. (optionally any)
The frames are made of profiles - 40 x 40 mm and 50 x 50 (at the bottom) mm.
Handles for movement - made of 12 mm rod.
Wheel fastening - 20 mm rod.
Wheel mounting bolt - M12x70 mm
depending on the needs, the trolleys have from 4 to 11 shelves
6 shelves - Weight: 51 kg.
8 shelves - Weight: 56 kg.
11 shelves - Weight: 63 kg.
a frame made of a profile with a thickness of 2 mm.
Warranty 12 months.(//tractor-service.com)
(manufacture of reinforced frames to order)
PRICE: 240 EUR (euro)

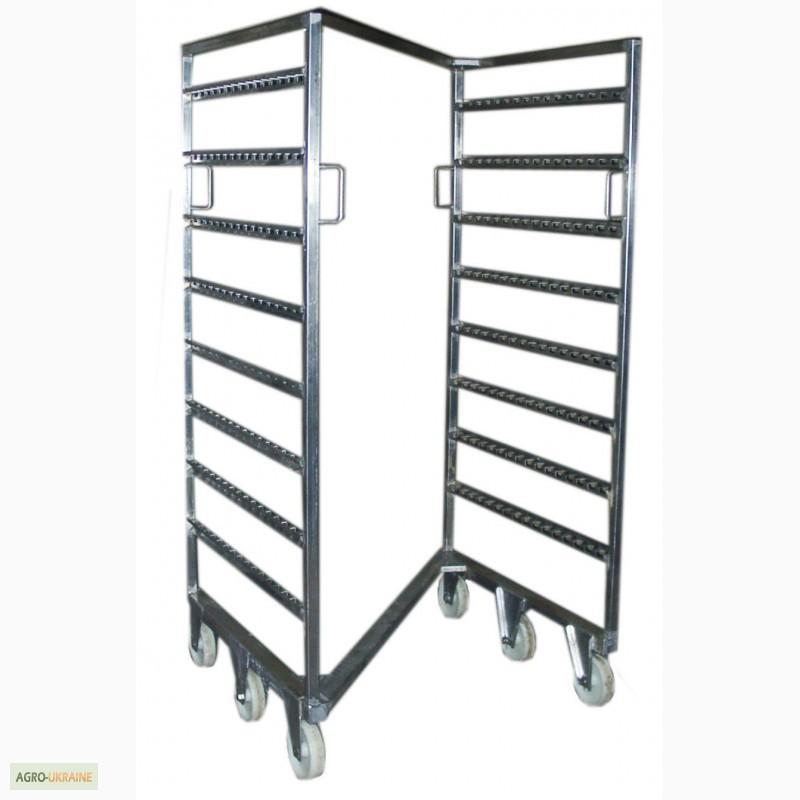

"Cart-frame for sausages Z"
Intended for placing sausages, meat products,poultry, fish in the process of their transportation and heat treatment at meat and fish processing enterprises
Technical characteristics:
load capacity up to 500 kg.
mass 60 kg
the size of the shelves is 920 mm.
profile pipe 40x40x2, 60x40x2
overall dimensions 1000x1020x1960
Material - AISI 304 acid-resistant stainless steel
The number of shelves is 6 pcs. - the number of shelves at the request of the customer
The execution of the lodge is a stamped profile.
Wheels for trolleys are made of glass-filled polyamide with
by adding nylon 6 to increase heat resistance and wear resistance.
Temperature regime from -20 C° to +120 C°.
Warranty 12 months.
(production of reinforced frames to order)
PRICE: 230 EUR (euro)
