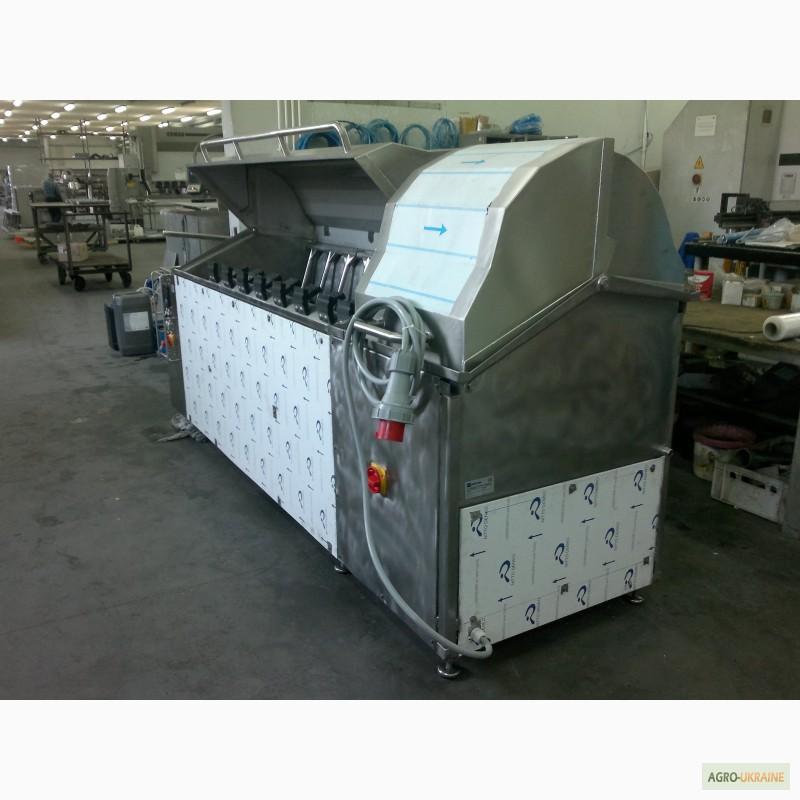

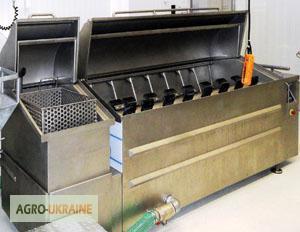

Sparchan scraper with separator, Lviv region.

The scalder has two opening lids, which make it possible to load pork carcasses from the back and front of the installation. A convenient bristle separator is mounted on the side of the scalder. The construction is made entirely of acid-resistant steel. The working part consists of a scalder as well as a moving part, a control unit. Inside the scalder, a tubular system of heating through water vapor, two scraper shafts and a device for the discharge of pig carcasses are installed. A bath insulated with mineral wool and lined with metal plates. The two-shell heating system ensures low energy consumption.
The temperature is regulated by a microprocessor programmer.
High level of safety.
The machine consists of:
1 – ejector structure,
2 - 2 shafts for removing bristles
3 – bristle separator
4 –suction pump bristles
5 – control panel,
6 – water tap ¾ '',
7 – discharge valve 2

Productivity: Up to 20 pieces/hour(//tractor-service.com)
Power, kW: 28
Engine power, kW 2.2
Powerpump, kW 0.75
Supply V: 400v
Height without cover: 1080mm
Width: 2800mm
Depth: 990mm
Volume, dm: 3450
Steam consumption kg/h: 5.5
Gas consumption GZ 50m3/h: 2.3
Fuel oil consumption, kg/hour: 2
Installation power kW: 28
Execution: The construction is made entirely of acid-resistant stainless steel 0H18N9
