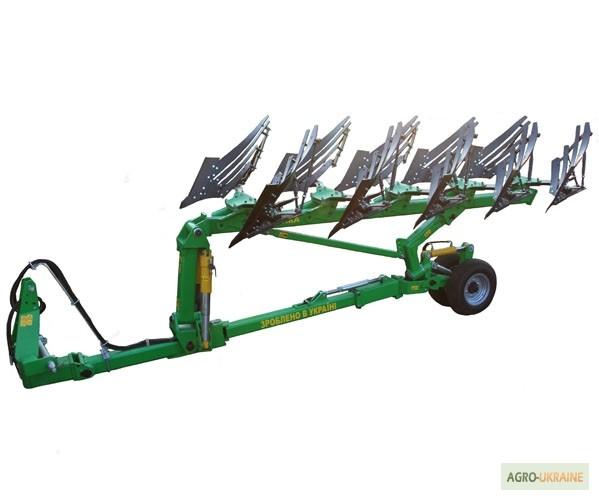

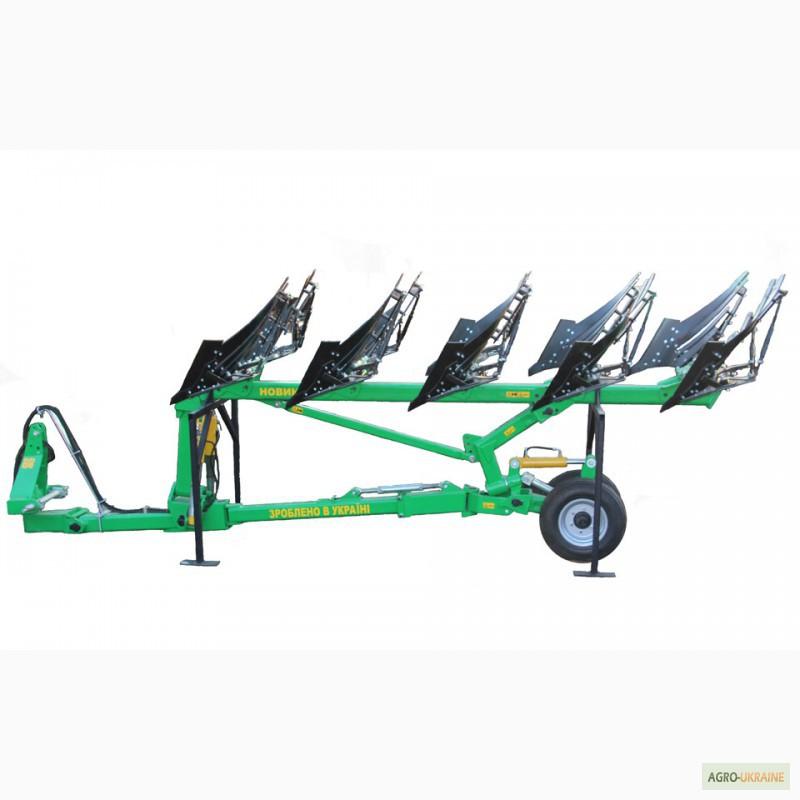

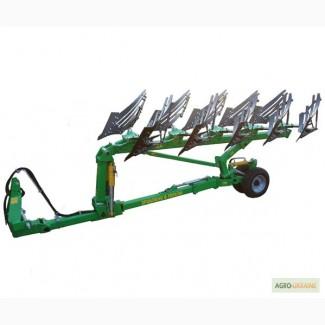

Reversible plow PON-5-40+1, Dnipropetrovsk region.

PLOWREVERSIBLE SEMI-HINGED MON-5‒40+1
intended for plowing soils for grain and technical crops to a depth of 18-35 cm, not clogged with stones, slate and other obstacles, with specific soil resistance up to 0.09 MPa and hardness up to 3.5 MPa. (furrow)
При создании плуга, было поставлено задание обратить внимание пользователей сельскохозяйственных машин к снаружи привлекательному и удобному в эксплуатации плугу.

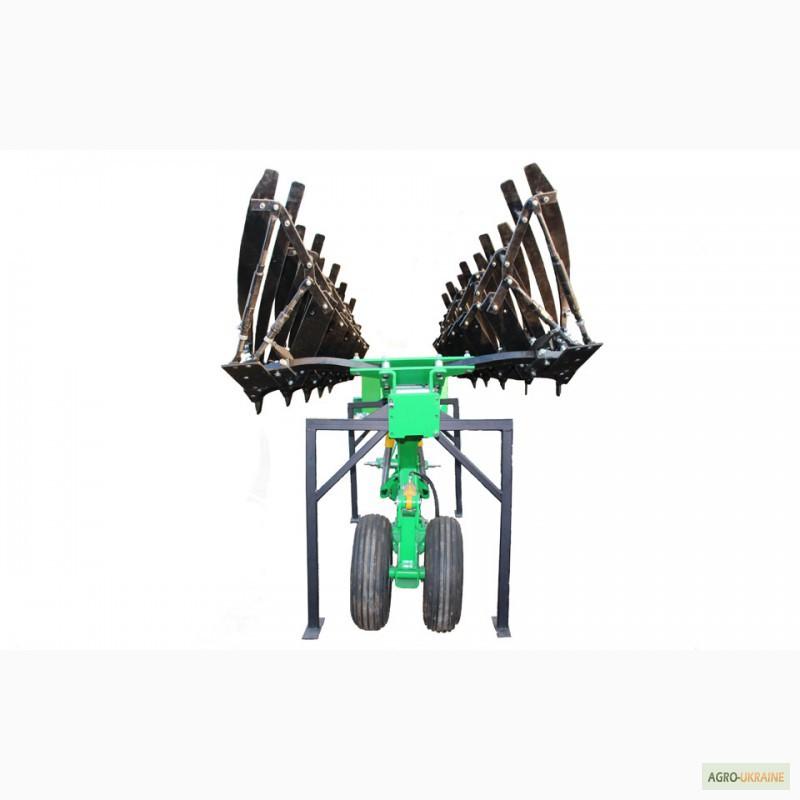

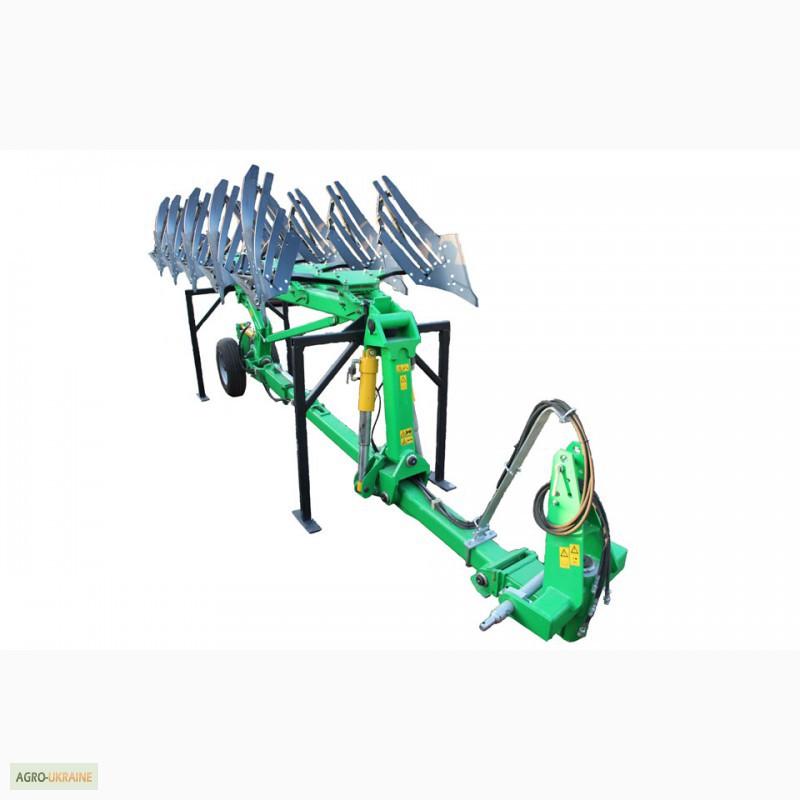

The reversible semi-mounted plow consists of a frame together with a turning mechanism, bodies (right and left), a rear support wheel mechanism, a drawbar with a tower.
— the plow has five right and five left hulls on the main beam.
— each case is made with a strip blade.

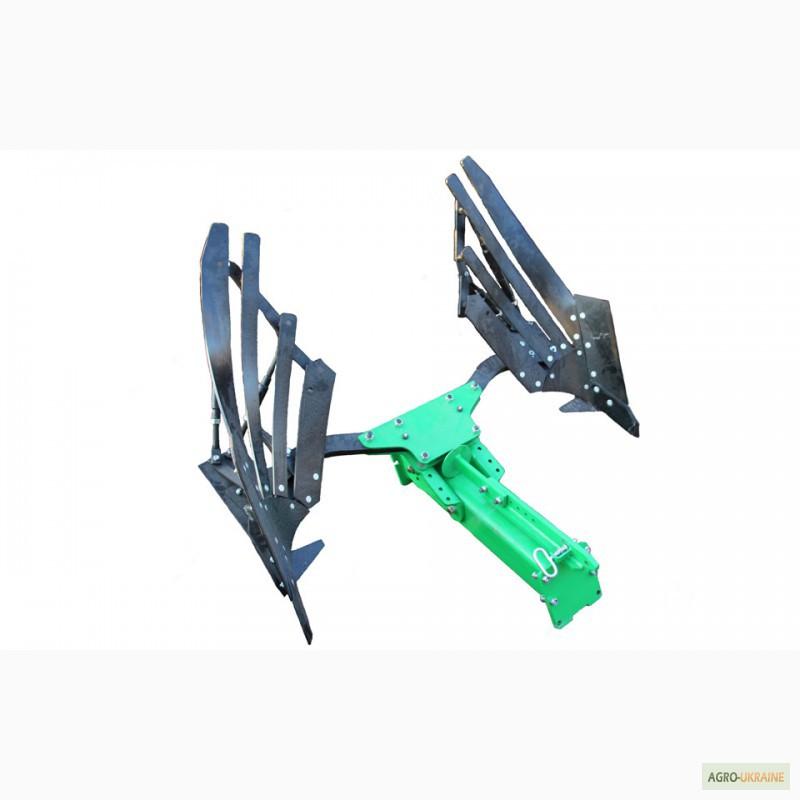

The working body of the plow:

The frame is the main supporting link and serves for mounting all assembly units. It consists of beams of square cross-section, which are hingedly attached to each other. On one and the other side, the main beam of the frame is hingedly connected by a swivel beam to the supporting beam. The main beam is also equipped with a diagonal stop connecting the main beam and the rear pivot beam. On the side adjacent to the tractor, the drawbar is provided with a fastening unit (tower), and on the opposite side with a support wheel mechanism and twowheels, it contains 5 double bodies.
Its constructive features allow you to have a number of advantages:
Maneuverability: with maximum productivity, a quick turn on a narrow turning lane is ensured.
It is possible to easily change the width of the working case (33, 38, 44 and 50 cm for each case).
The high strength of the plow frame is the key to the unit's long service life.
The plow efficiently processes the edge of the field, as well as places along ditches and fences.
The ability to transport the plow at high speed without causing a load on the tractor hitch.
The high wear resistance of the working bodies produced by "VELES-AGRO" ensures savings in plowing costs.
grip width from 165 to 400 cm (number of cases from 5 to 8); 180
Предложенный плуг, внешний вид которого заявляется, пригодный для использования для гладкой пахоты почв под зерновые и технические культуры на глубину до 35 см.

CHARACTERISTICS
Unit type(//tractor-service.com)
half spring
Width of capture (m)
1.98‒3.0
Cover width (mm)
330/380/440/500
Processing depth (cm)
18‒35
Number of working bodies (pieces)
5+1
Габаритные размеры
see below
Length (mm)
7050‒8050
Width (mm)
1720
Height (mm)
3010
Mass of the unit (kg)
2500‒2750
Required power of the tractor (HP)
225‒270
