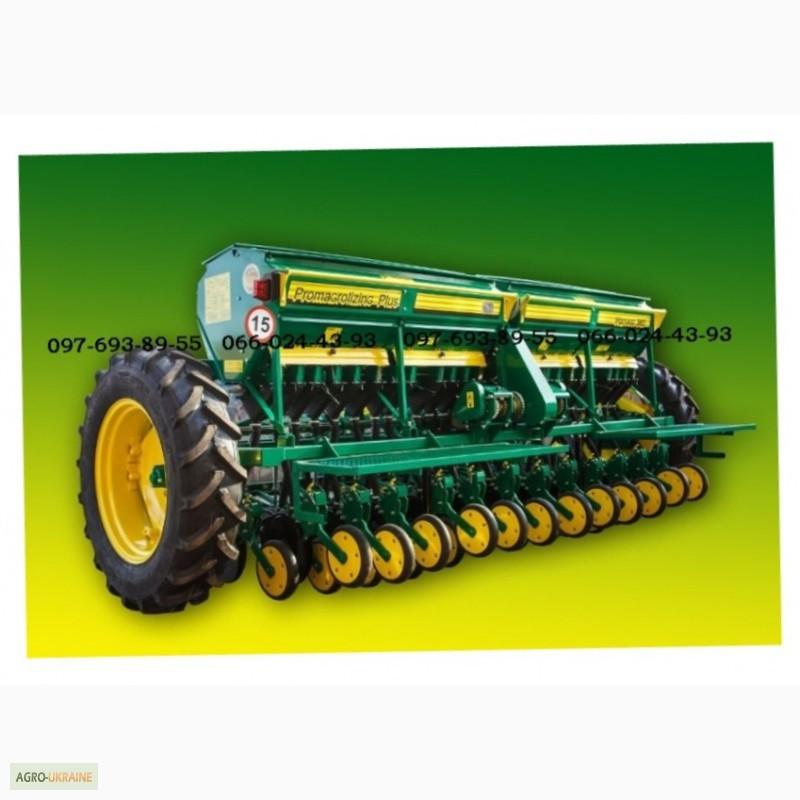

Harvest 360 grain seeder, Dnipropetrovsk region.

Usforsehletovannaya harvest harvest seeder 360 mechanical seeding device drive, designed for regular sowing on prepared (ploughed and cultivated) soilgrains (wheat, rye, barley, oats), leguminous crops (peas, beans, soybeans, lentils, beans, plantains, chickpeas, lupins) with simultaneous application of mineral fertilizers. It can be used for sowing seeds of other crops, close to grain crops in terms of seed size and sowing rates (buckwheat, millet, sorghum, etc.).
Models of Harvest 360 Harvest 3.6 seed drills with finger wrappers
Harvest 3.6 - 01 Intercity 7.5
Harvest 3.6 - 02 with rollingrollers
The seeder is aggregated with tractors equipped with engines with a power of 80 hp.
Powder coating

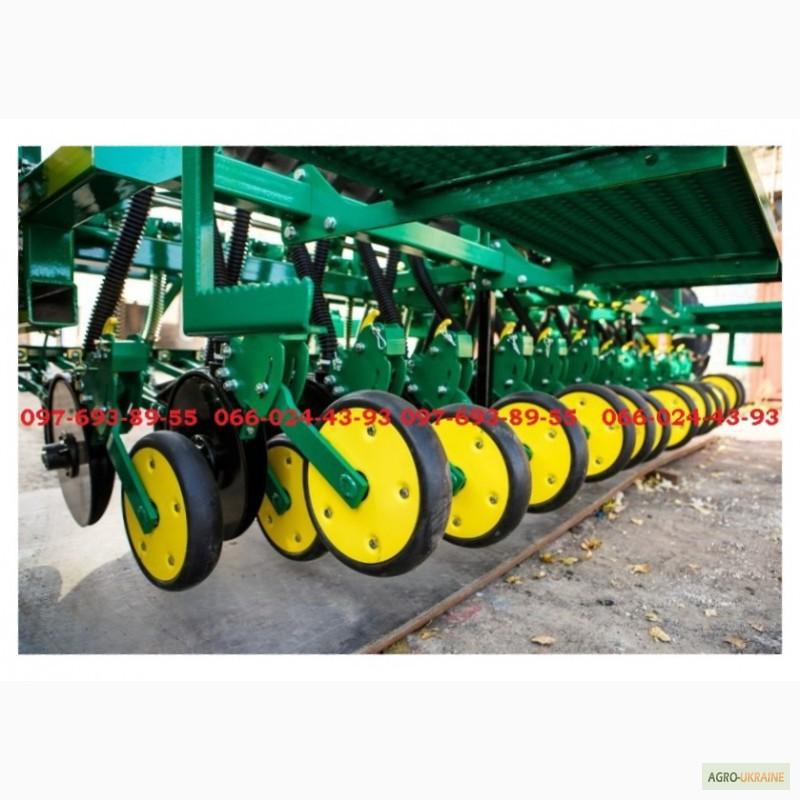

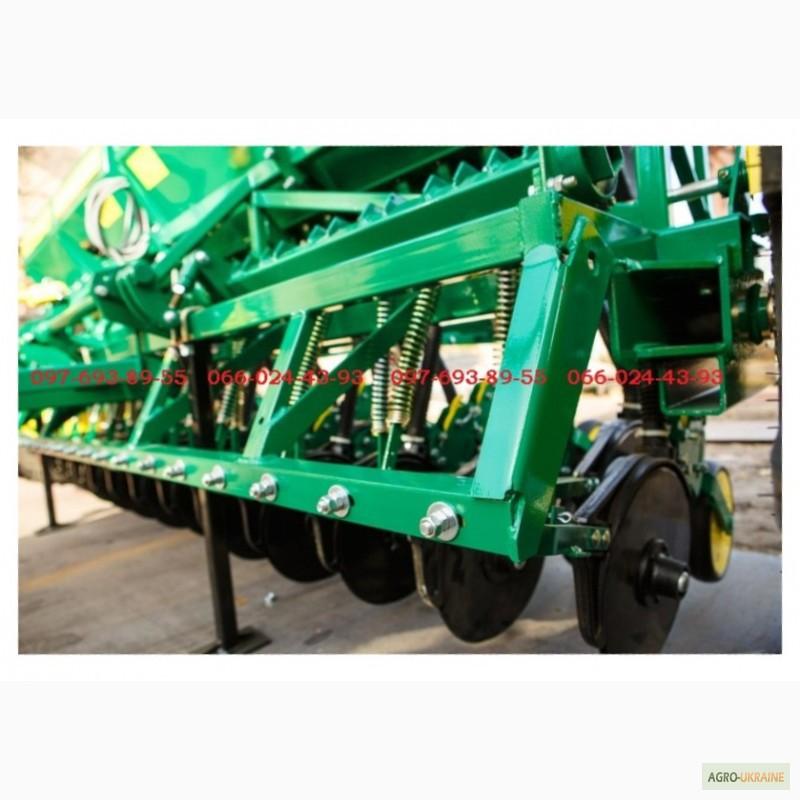

The type of opener is two-disc withshifted discs.

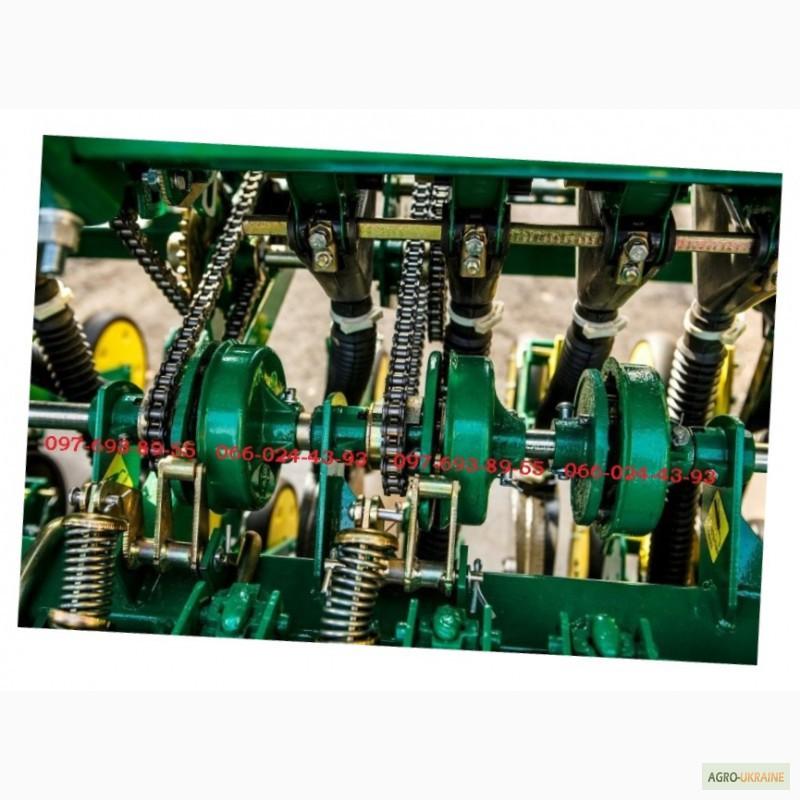

The seeding rate is set by adjusting the working length of the coil, group adjustment of the valves of seeding devices and changing the frequency of rotation of the shaft of seeding devices. Adjusting the rate of fertilizer application is done with a handle.

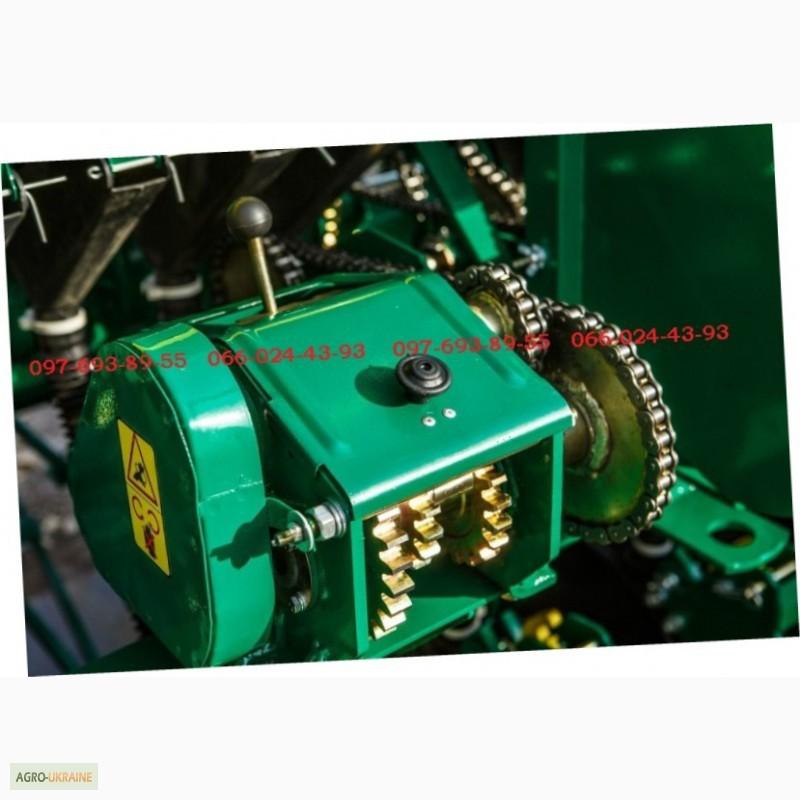

The gearbox has three main speeds, which are switched using a lever, the cassette is replaced by an open gear. Mechanically processed steel gears are installed in the gearboxes, which increases the reliability of their work.

Width of capture
m
3.6
Number of lines
pcs.
24
Width between rows
cm
15
Sowing norms:
kg/ha

- for seeds

5-400
- for fertilized
(//tractor-service.com)
25-200
The depth of planting seeds and fertilized.
mm
40-80
Working speed
km/h
9-12
Productivity
ha/h
3.2-4.3
Hopper capacity:
dm3

- for seeds

680
- for fertilized

320
Dimensions (length x width x height)
mm
4300x3700x1650
Mass.
kg
1380
It is aggregated with tractors with a capacity of 192
л.с.
to 85
