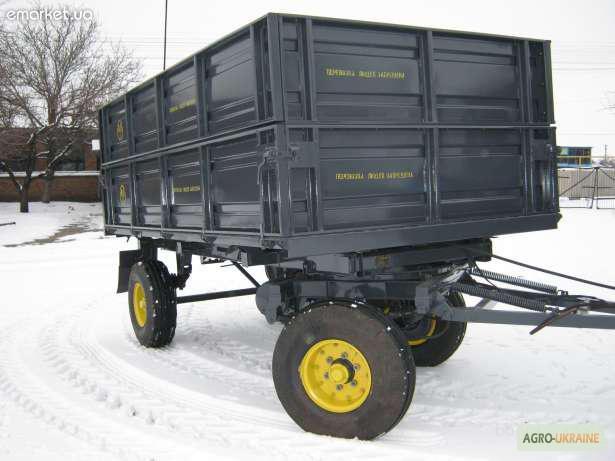

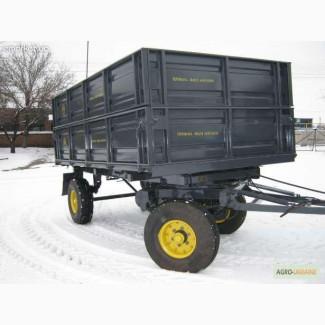

Trailer 2pts-4,, Zaporizhia region.

Technical characteristics of tractor trailer 2PTS-4
No.
Name

Ed. ism.

Значение

1 Mass of transported cargo kg 4000
2 Weight of the unequipped trailer kg 1710
3 Gross weight kg 5710
4 Dimensions of the trailer: mm

-length
6255

-width
2500

-height
2500
5 Internal dimensions of the platform mm

-length
4082

-width
2318(//tractor-service.com)

-height
530
6 Platform area m2 9.5
7 Platform volume m3 5
8 Maximum driving speed Km/h 35
9 Angle of overturning of the platform degrees

-back
50

-siders
50
10 Platform lifting mechanism
3-stage telescopic hydraulic cylinder
11 Operating pressure in the system MPa (kgf/cm2) 17(170)
12 Lifting time of the loaded body, no more than 30
13 Time for lowering the empty body, no more than 60 173
14 Шины
9.00-16, GOST 7463-80
15Wheels
disks
16 Number of wheels pcs 4
17 Pressure intyres MPa (kgf/cm2) 0.35(3.5)
18 Working brake system
pneumatic, single-wire with pad brakes on the front axle
19 Parking brake system
mechanical with manual drive on working brakes
