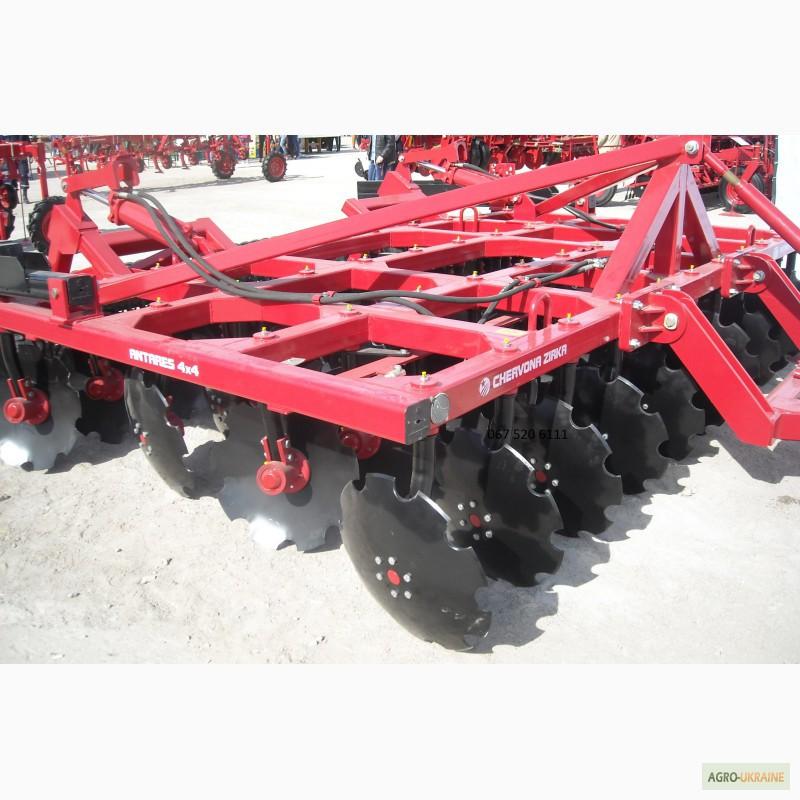

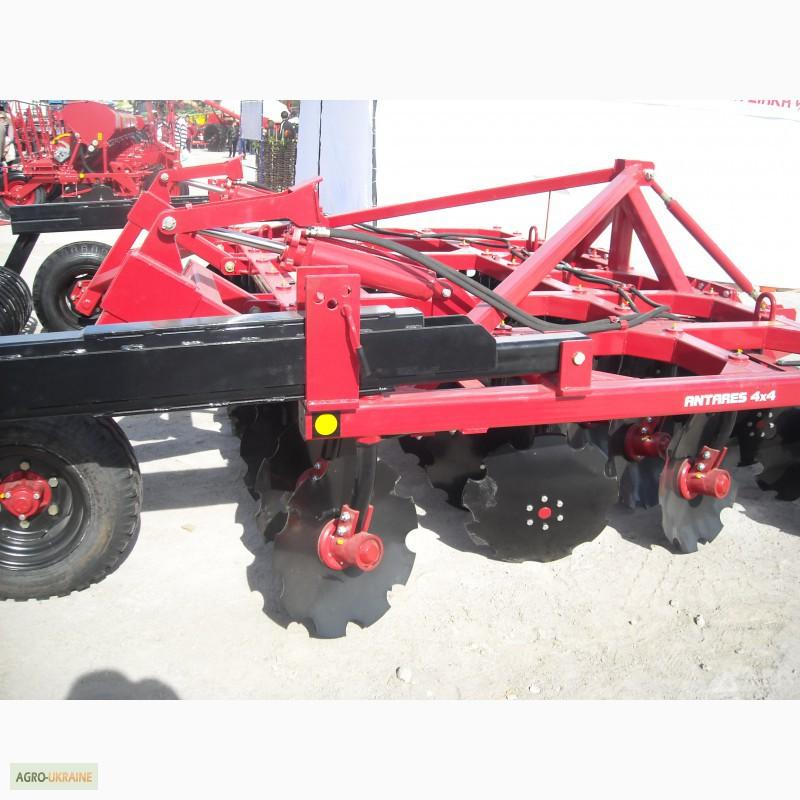

Antares 4x4 disc harrow modular trailer, Kirovohrad region.

Delivery to the household.
Antares 4x4a modular disk harrow trailed is intended for resource-saving pre-sowing soil treatment for sowing grain, technical and fodder crops, weed destruction and grinding of crop residues after harvesting crops, as well as grinding, leveling and compaction of the soil after disking.
The disc harrow is intended for use in soil and climatic conditions with soil moisture up to 40%, as well as in fields with a large amount of crop residues.
Each disc of the harrow is installed on an individual stand, which allows the harrow to work in fields with a large amount of plant residues and weeds, excluding the winding of plant residues on the axis of the disk and clogging of the space between the disks, and also ensures high maintainability of the unit.
The design of the unit provides smooth adjustment of the angle of attack of each row of disks within the range from 0° to 30°, which allows you to optimally adjust the harrow for different types of soil.

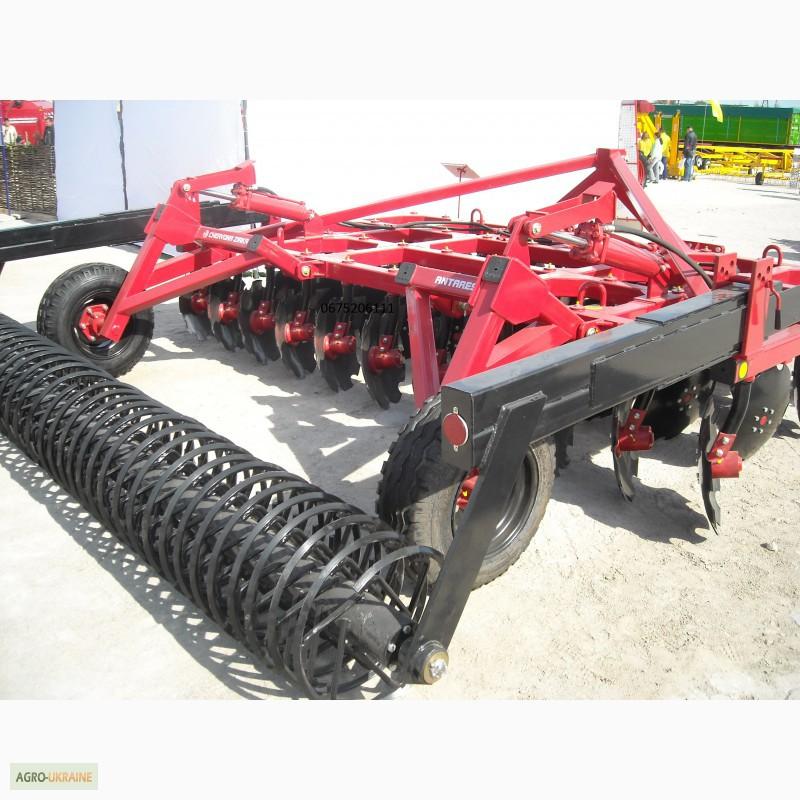

The spiral train-roller is intended for mixing plant residues with the soil, leveling and compacting the soil, as well as "combing out" weeds.
MAIN CHARACTERISTICS
The type of unit is trailed.
Productivity ha/hour up to 2.8-5.1
Working speed km/h up to 12
Transport speed km/h up to 20(//tractor-service.com)
Width of capture m 4
Processing depth mm 80-180
The angle of attack of the disks degrees. 0...30
Number of rows pcs. 4
Number of cutting units pcs. 42
The distance between the rows of discs is 700
Diameter of working bodies mm 560
The distance between the disk blades is mm 400
Overall dimensions in working position mm 5950x4340x1440
Structural weight kg 3750
Tractor power (not less) HP 200
