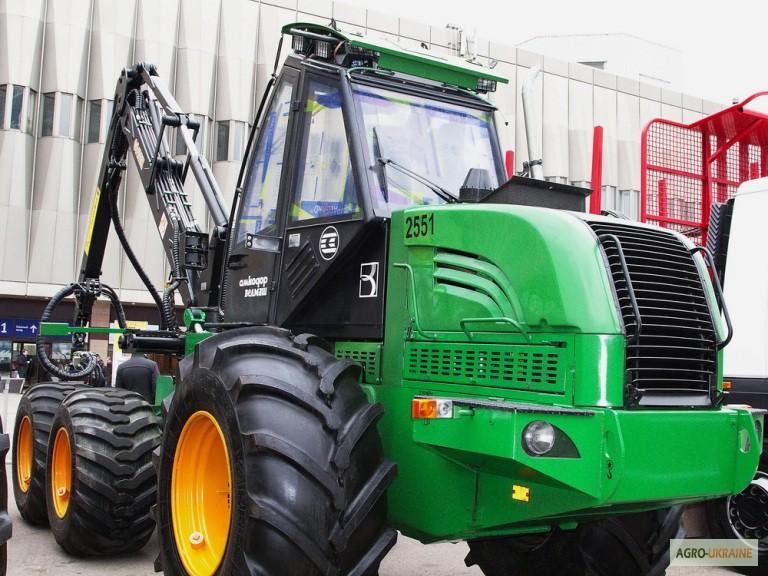

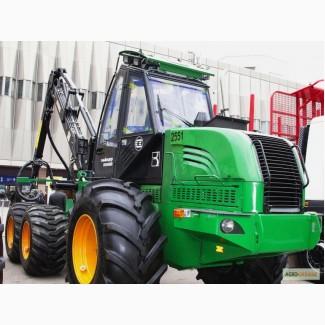

Harvester Amkodor-2551, Kyiv

Wheeled harvester of high cross-country ability Amkodor-2551 is intended for felling trees, pruning branches and cutting into assortments of a given length.
Main characteristics:
Boom reach, mm 9500
Lifting moment (gross), kNm 132
Angle of rotation of the manipulator, degree 260
Maximum cutting diameter, mm 670
The maximum opening of the rollers, mm 580
The optimal diameter of the tree trunk, mm 400
Operating mass, kg 15500
Mass on the front axle, kg 6000
Mass on the rear axle, kg 9000
Diesel D-260.9
Operating power, kW (hp) 132 (180)
Hydrovolume transmission
Speed of movement, forward/backward, km/h:
1st 8/8
2nd 26/26
Swing angle of the front axle, degrees. ±15(//tractor-service.com)
Front axle differential Increased friction
Blocking of the front bridge is available.
Rear axle Balancing axle with locking differential made by NAF (Germany)
Steering Articulated frame, with hydraulic drive, hydraulic feedback and emergencypump
Tires:
front 30.5L-32LS
rear 700/50-26.5
Type of hydraulic system Load-sensing with adjustable pump
Refueling tanks, l:
fuel tank 190
hydraulic tank 200
Dimensions in transport position, mm: 178
длина 10250
width 2900
height 4000
ground clearance 600

Modification Amkodor-2551-01
Execution with harvester head Kesla Foresteri 25RH (Finland) and manipulator СФ-032Н "Solombalets" (Russia).
