Home appliance harrow -2.1Н, АГД-2.5Н, АГД-2.8Н, АГД-3.5Н, АГД-4.5Н, Dnepropetrovsk region.

Harrow AGD-2.1Н, AGD-2.5Н, AGD-2.8H, AGD-3.5H, AGD-4.5H TRAILED - price, sale, characteristics.

AGD harrow - 2.1H Technical characteristics: Grip width, m 2.1
Productivity, ha 1.5 - 1.8
Depthtillage of soil , cm 8 - 18
Weight of the product (without accessories), kg 1050
Working speed, km/h 8-12 Overall dimensions, mm (length / width / height) 4800 / 2800 / 1300
Трактор с которым Агрегатируется МТЗ - 80/82/100/102
Габаритные размеры , мм (длина / ширина / высота) 4800 / 2800 / 1300
Guaranteed resource, 1,030 hectares

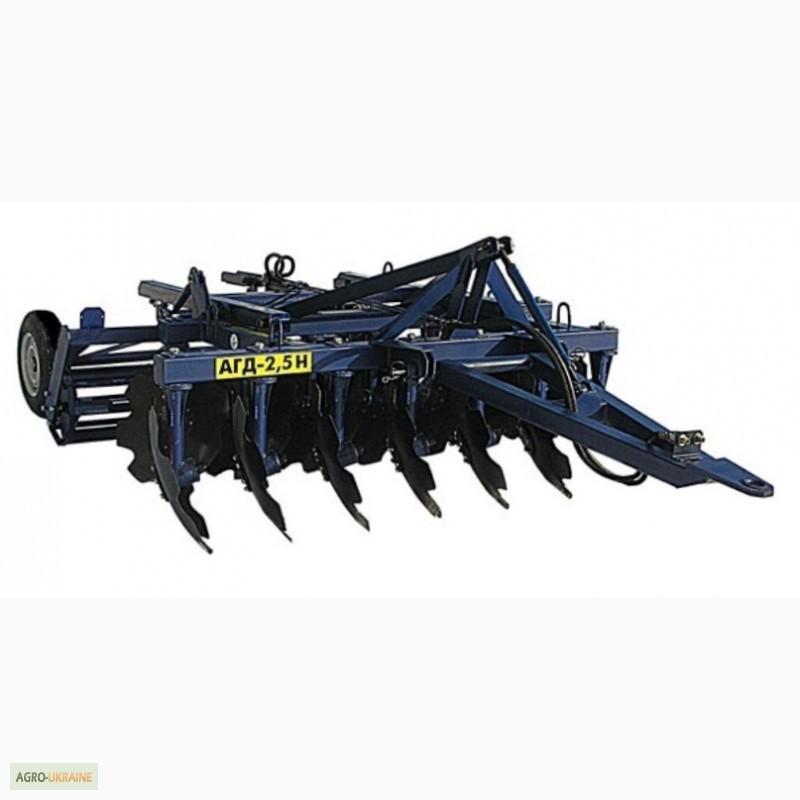

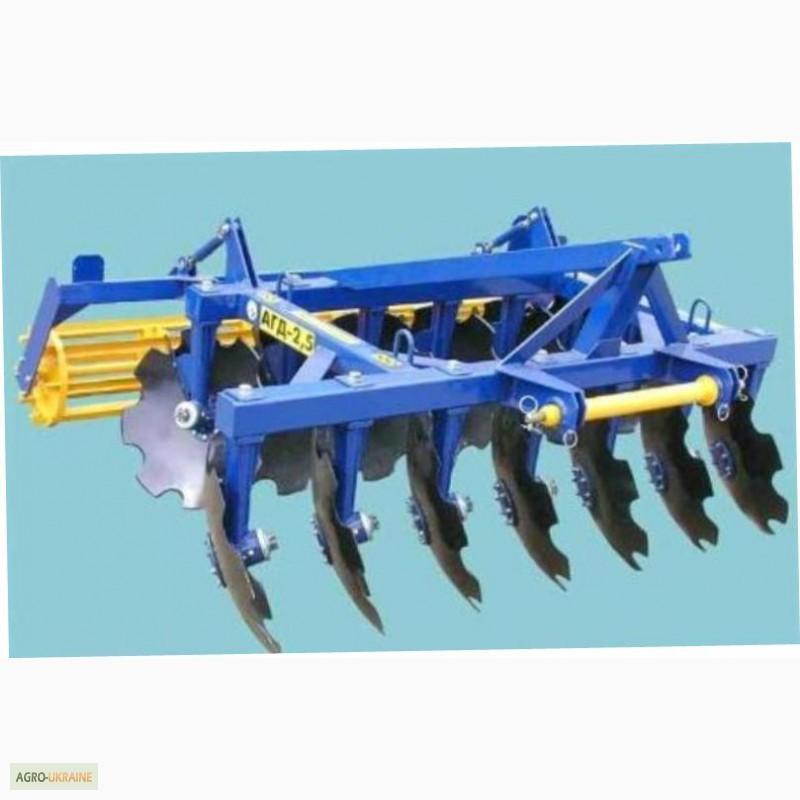

AGD harrow - 2.5N (patented)

The unit is intended for cultivation of soils of different mechanical composition with grinding and embedding of plant residues in the soil under the following conditions:

- soil hardness is no more than 3.5 MPa, 166

- влажность почвы не более 27%,

- height of harvest and plant residues up to 30 cm.

The unit is designed for work with tractors of the 14 kN class (1.4 ts)

The unit can be operated in all soil and climatic zones.

TECHNICAL CHARACTERISTICS

Trailer type

Construction width, m 2.5 minus 0.1

Productivity ha / time, 1.8...2.2

Depth of tillage, cm 8...18

Working speed of movement, km/h 8.0...12.0

Transport speed, km/h 20

Weight of the product (without accessories), kg 1160 minus 50 Dimensions, mm, no more

length 4800 minus 150

width 2800 minus 150

height 1000 minus 150

Ground clearance, mm, not less than 300

Service personnel, people (tractor driver) 1

Guaranteed resource, 1240 ha.

Transfer to transport and working position hydraulic.

Options for using AGD-2, 5H:

- as a trailing unit, it is attached to the tractor with the help of a trailing device;

- as an intermediate option, half-mounted;

- as a mounted tool, the towing device will be moved to a vertical position,

disconnect the wheel drive, hang the unit on the three-point systemtractor;

AGD harrow - 2.8N

The unit is intended for cultivation of soils of different mechanical composition with grinding and embedding of plant residues in the soil.

TECHNICAL CHARACTERISTICS

Trailer type

Construction width, m 2.8 minus 0.1

Fuel consumption, l/ha 7.4 8.9...

Productivity ha / time, 2.0...2.6

Depth of soil cultivation, cm 8...20

Working speed of movement, km/h 8.0...12.0

Transport speed, km/h 20

Weight of the product (without accessories), kg 1160 minus 20 Dimensions, mm, no more

length 2300

width 3150
(//tractor-service.com)
height 1500

Ground clearance, mm, not less than 300

Service personnel, people (tractor driver) 1

Guaranteed resource, 1,600 hectares

AGD harrow - 3.5 N

The unit is intended for cultivation of soils of different mechanical composition with grinding and embedding of plant residues in the soil under the following conditions:

- soil hardness is no more than 3.5 MPa,

- soil moisture not more than 27%,

- height of harvest and plant residues up to 30 cm.

The unit is designed for work with tractors of the 30 kN class ( T-150 )

The unit can be operated in all soil and climatic zones.

TECHNICAL CHARACTERISTICS

Trailer type

Working width, constructive, m 3.5 minus 0, Depth of soil cultivation, cm 8...18

Productivity, ha / time 2.6 4.2...

Working speed, km / h 8.0...12.0

Weight of the product (without accessories), kg 1750

Transfer to the transport and working position hydraulic Dimensions, mm, no more

length 5300

width 4200

height 1000

Ground clearance, mm, not less than 300

Service personnel, people (tractor driver)1

Guaranteed resource, ha 1830

AGD harrow - 4.5N

The unit is intended for cultivation of soils of different mechanical composition with grinding and embedding of plant residues in the soil.

TECHNICAL CHARACTERISTICS:

Half-mounted type

Gripping width, constructive, m 4.5 minus 0.1

Productivity over time

of the main time, ha 3.6 5.1...

Depth of soil cultivation, cm 8.0 18.0...

Working speed, km / h 8.0...12.0

Transport speed, km / h, 20

no more

Weight of the product (without accessories), kg 2100 minus 20

Dimensions, mm,

no more:

- length 5300

- width 4250

- height 1000

Ground clearance, mm, not less than 300

Fuel consumption, l/ha 11.5,,,13,0

Service personnel,

person (tractor driver) 1

Guaranteed resource, 2000 hectares
