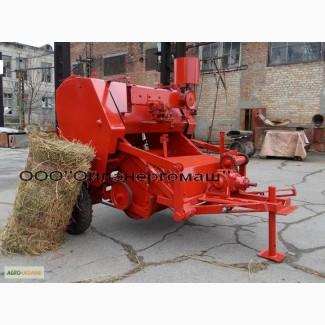

Rolled baler with subsequent twine wrapping PPR-50 "Kazachek", Ivano-Frankivsk region.

The "Oylenergomash" plant produces: Roll pick-up pressroll PPR -50, intended for selection of rolls of hay, pressing them into bales of a cylindrical shape - rolls with subsequent bindingtwine . Application in flat land use zones. The type of machine is semi-trailer, aggregated with domestic and foreign tractors (T-25, T-40, YuMZ, MTZ-80, MTZ-82, Xintai, Dongfeng, Photon, Jinma and others.) Operating frequency 540 rpm. , with a capacity of 10 to 80 hp.

During the translational movement of the unit, the mass from the roll is picked up and fed into the pressing chamber, where it is twisted into a roll with the help of a pressing mechanism. As the density of the roll increases, the rear chamber moves away from the front one, the pointer signals the end of the roll formation and the need to feed the twine into the pressing chamber. Tying the roll and cutting the twine occurs automatically when the unit is stopped. After tying the roll with twine, the rear camera opens, and the roll rolls back to the ground. After closing the camera, the process repeats itself.

The equipment of our enterprise is constantly improved, taking into account the designs of the designers and the wishes of the village workers. You can familiarize yourself with our products on our website http://oilenergomash.com.ua/

TECHNICAL CHARACTERISTICS :

working width of capture - 0.8 m
working speed of movement - 4-6 km / h(//tractor-service.com)
roll dimensions - diameter 50 cm, length - 80 cm
the weight of a hay roll is up to 25 kg.
Weight of the baler dry construction (without binding material and zip), 350 kg
Overall dimensions (baler in storage position), mm, not more than:
length 2.4.-2.5 m
height 1.5-1.6 m
width 1.45-1.5 m
UNFORTUNATELY, THE PRICE MAY CHANGE DUE TO THE GROWTH OF METAL PRICES!!! SEE THE SALES DEPARTMENT FOR DETAILED INFORMATION.
