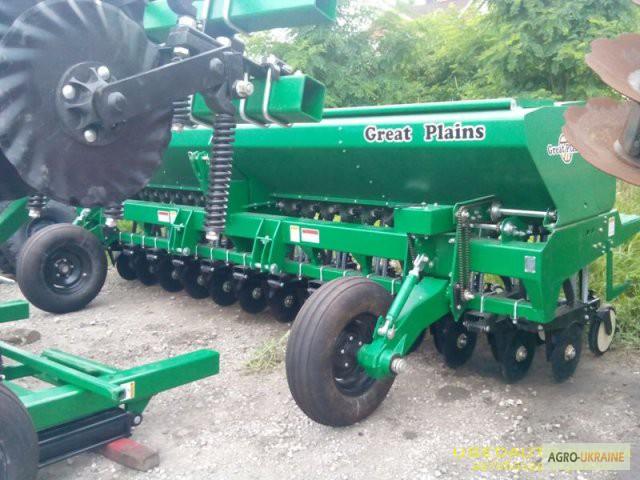

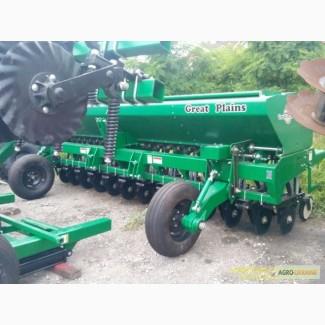

Seeder Great Plainse CPH-1500, Dnepropetrovsk region.

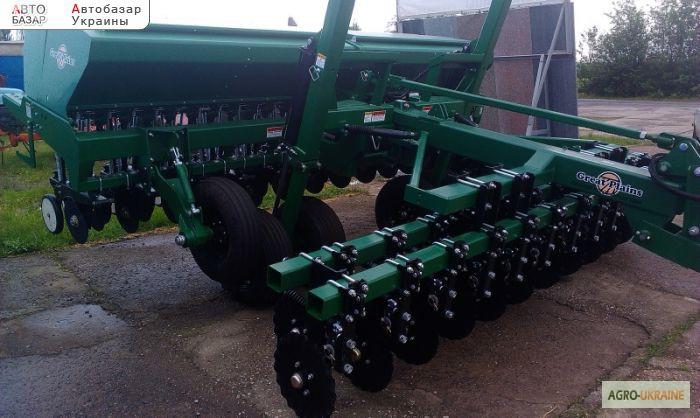

Seeder Great Plainse CPH-1500, working width 4.5 meters, dry fertilizers, no-till, after full overhaul, new condition.No-till hitch converts an ordinary seeder into a stubble machine

The unique design of the coupling allows the seeder to move constantly following the cutters.

disks even when turning

Simple hinged locks rigidly connect the seeder and hitch for transportation.

A rigid quick coupler allows you to attach the 3-point attachment of the seed drill without effort.

with setting pins

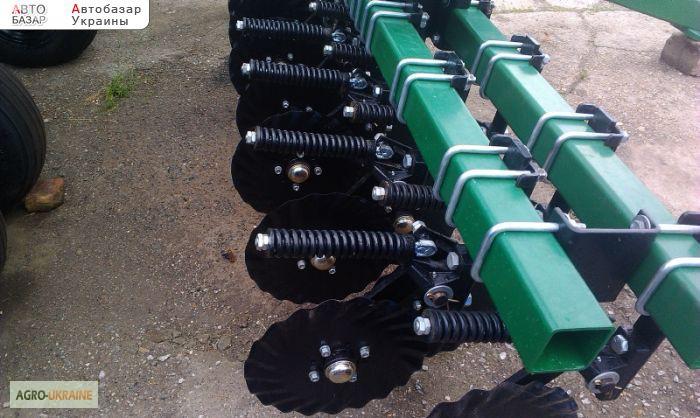

Preload on the cutting disc 204 kg The cutting disc is held at the specified depth during operation until the moment of meeting c

obstacle

Depth gauge The highly visible depth gauge gives you the opportunity to adjust and

control the working depth of the cutting discs directly from the tractor cab(//tractor-service.com)

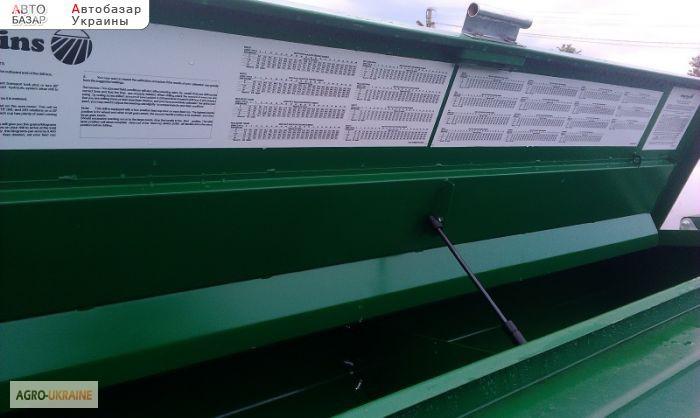

Changing the seeding rate The accuracy of the seeding rate is controlled by the flight of all coils of seeding devices.

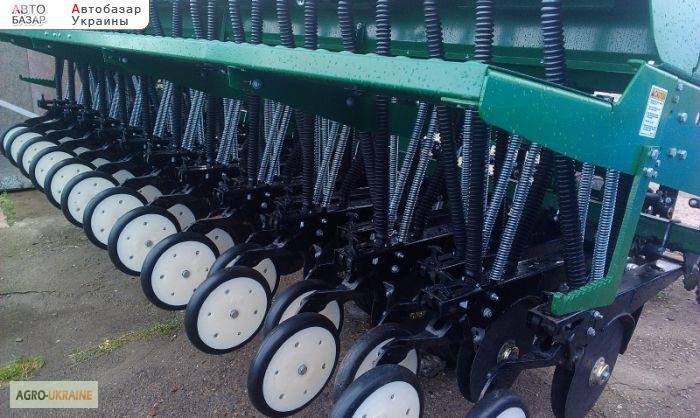

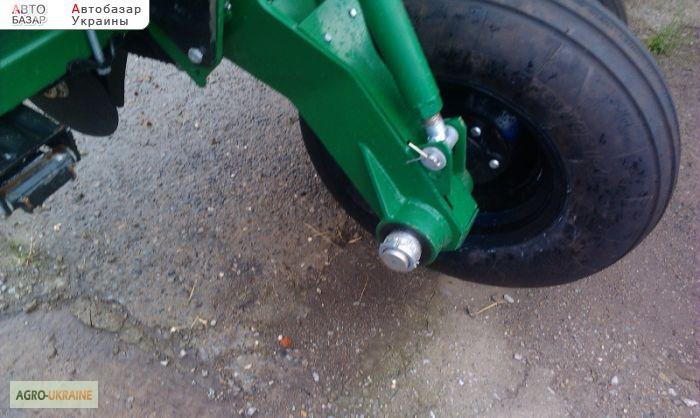

Driving copierwheel The drive of seeding devices is simple and does not require any switches

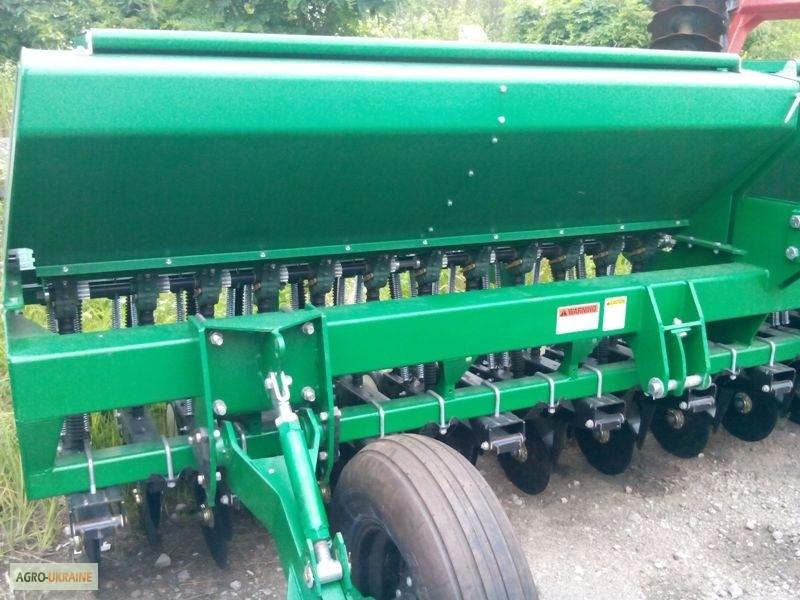

Large waterproof boxes for seeds Bunkers for seeds with a volume of 285 l per meter of the sowing width have deflectors for

seeds, lid stops, V-shaped bottom and a wide footrest.

Between rows, see 19 Number of coulters, pcs. 24 Weight, kg 3577 Working width, m 4.5 Transport width, m 4, Transport clearance, cm 43 Height, m ​​2.5 Length, m 6.7 Volume of seed boxes, l 1307 Volume of boxes for dry fertilizer (option), m3 0.42 Sizetyre 9.5 x 15 Coulter travel, cm 16.5 Sowing depth, cm 0-9 Pressure on coulter, kg 41-82

Working depth of the cutting disc, cm 0-10.2

Preset pressure of the cutting disc, kg 204

Required power of the tractor (approx.), HP 100-125

Dry fertilizers, No-till

Seeder Great Plainse Solid Stand 1500, working width 4.5 meters, dry fertilizers, no-till, after complete overhaul, new condition.
