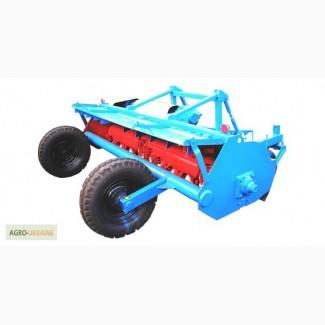

Мулчирователь растытельных остатков мр 2.7, Cherkasy region.

Designed for grinding residues (including thick-stemmed ones from the root) with simultaneous uniform scattering of a homogeneous mass over the soil surface.

It is aggregated with tractors of traction class 1.4
Method of aggregation: semi-mounted.
Productivity for 1 hectare/hour: 142
- основного времени от 1,35 до 2,7
- shift time not less than 1.15
- operational time not less than 1.0
Speed, km/h:
- working from 5 to 10
- transport no more than 20.0
Working width of capture, m 2.7
Service personnel, people 1 (tractor driver)
Ability to work on slopes, hail. no more than 7
Overall dimensions in working position, mm, not more than
- length 3200
- width 3250(//tractor-service.com)
- height 1200
Constructive mass, kg 1300
Pruning post-harvest residues, %, not less than 98
Length ofshredded straw, mm, no more than 120
The height of the cut, mm, no more than 200
The angle of transverse static stability of the mulcher attached to thetractor, degrees, not less than 30
Typewheels:
- front tire 5.00-10 GOST 5652-89 2 pcs.
- rear tire 6.50x16 GOST 7463-80 2 pcs.
The number of revolutions of the PTO during grinding, rev/min: 171
- послежатвенных остатков, не более 540
- crushing of straw in rolls, no more than 1000
The number of revolutions of the rotor during grinding, rpm:
- post-harvest residues, no more than 970
- crushing of straw in rolls, no more than 1800
