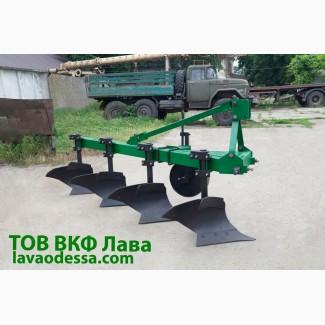

Plow PBN 4-35 on high round stands (MTZ 1025), semi-screw dump, Odesa region.

Furrow plow PBN 4-35 is intended for plowing soils undercereals and technical crops to a depth of up to 30 cm, not clogged with stones, slabs and other obstacles, with a specific soil resistance of up to 0.09 MPa and a hardness of up to 4.0 MPa.
It is assembled with tractors with a power of 80-100 hp (MTZ 80/82, MTZ 1025), the rightwheels which are in the furrow during operation.

Technical characteristics:
1. The width of the plow is 1.4 m.
2. Plowing depth - 20-30 cm
3. The distance from the support plane of the housing to the lower plane of the frame - 680 mm
4. Mass - 550kg±30
5. The working speed of the main operations is 7-9 km/h.
6. Transport speed, no more than 15 km/h.
7. Productivity in 1 hour. - 0.9-1.2 ha/h
Overall dimensions, mm: 161
довжина - 3400±100
width - 1500±50(//tractor-service.com)
height - 1200±50

Advantages:
1. Installation of the body with a semi-screw dump provides effective wrapping of the harvest residues.
2. The use of a frame rack with a round section prevents the plow from clogging in fields with a large amount of crop residues.
3. Fastening of the housing stand on the sides of the frame, due to this, the toes of the housings are brought out from under the frame, which allows you to avoid clogging when working at increased speeds of soil processing.
4. The attachment of the housing stand to the frame with pressure bars and staples makes it possible to easily adjust the grip of the housing in case of deviation from the straight-line movement of the plow.
5. A strong and reinforced frame is used.

Announcement from the manufacturer's company.
Any form of payment (cash, non-cash, postpaid).
Shipping across Ukraine is carried out by any courier service.
Self-delivery is possible.
Questions can be asked at the indicated phone number.
