KZK-6P gear and ring rink, Dnepropetrovsk region.

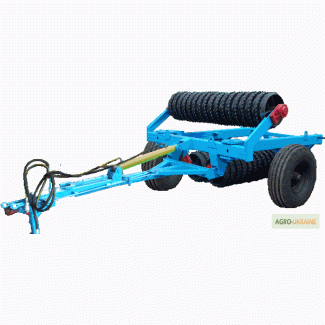

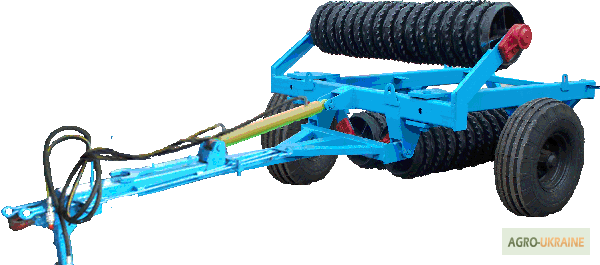

Katok toothed-ring KZK-6P
The roller is intended for compaction of the upper layers of the soil with simultaneous crushing and partial leveling of the surface.
Semi-trailer, in the transport position on pneumatic tires, hydraulic, interchangeable nodes.
The use of a roller improves the uniformity of seedlings, protects crops from being blown away by the wind and from being destroyed by birds, which allows you to increase the yield by up to 30%.

Technical characteristics KZK-6P KZK-6P-01 KZK-6P-02(//tractor-service.com)
Productivity, ha/h 13 13 13
Working speed, km/h 15 15 15
Transport speed, km/h up to 20 up to 20 up to 20
Grip width, mm 6,000 6,000 6,000
Diameter of the working disc, mm 460 360 520
The material of the working disc is cast iron cast iron.
Shaft diameter, mm 60 60 60 Mass, kg 2800 2300 3000
