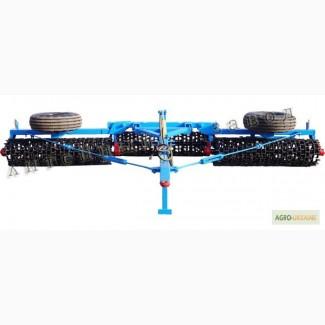

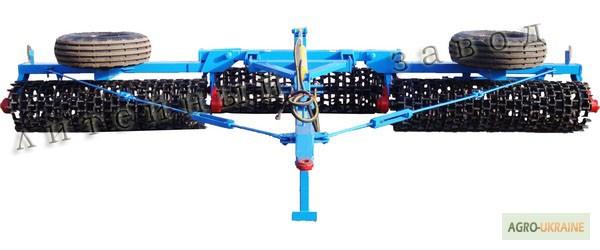

KZSh-6G cog-spur rink, Dnipropetrovsk region.

KZSH-6G cog-spur roller, working width of 6 m, mass 2250 kg, aggregated with tractors of class 1.4.|| |145
Прикатывания почвы — обязательный инструмент ресурсосберегающего земледелия для повышения урожайности.

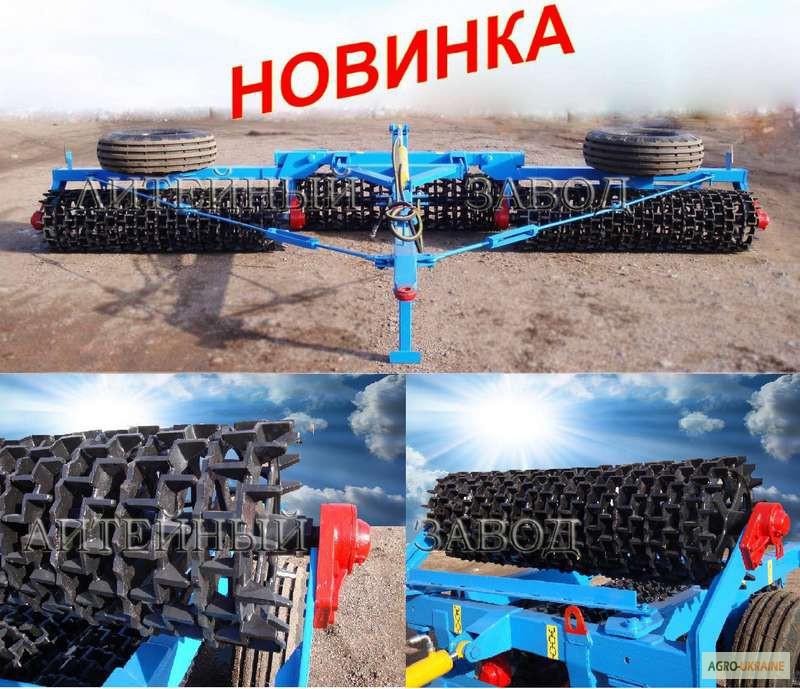

The use of a combination of two working bodies - a ring-spur disc F520 and a toothed KZK ring F530 made it possible to make the roller a universal and highly efficient unit due to:
- finer grinding of lumps of earth. A toothed ring is installed between the ring-spurdisks;
- more dense rolling of the soil. The weight of the roller is increased by 250 kg compared toroller KKSH-6G.
- self-cleaning of working bodies due to the oscillatory motion of the gear ring.
The rink was created on the basis of the design of the KZK-6P rink.
Constructive changes aimed at increasing reliability and durability were implemented during the production of the rink:
- the use of ring-spur disks F520 mm in combination with gear rings KZK F530;
- adjustment of the axial clearances of the working bodies without disassembling the bearing assembly;
-strengthening of the frame in highly loaded nodes;
-increasing the rigidity of the rink structure due to stretching; 160
-использование быстросъемных соединений;
- the use of an improved design of the hinged assembly of the frame.
Ring-toothed field rink
KZK-6G steel KZK-6G cast iron
Productivity, ha/h(//tractor-service.com)
13 13
Working speed, km/h
15 15
Transport speed, km/h
20 20
Width of capture, mm
6,000 6,000
Diameter of the working disc, mm
520 520
Diameter of spur, mm
520 520
Material
steel cast iron
Shaft diameter, mm
60 60
Overall dimensions 3580x6240x970
Mass, kg
2,250 2,700
