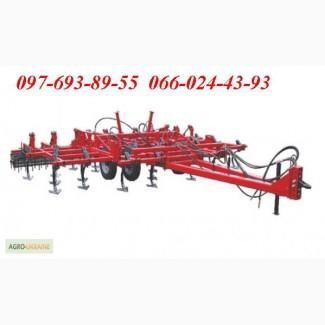

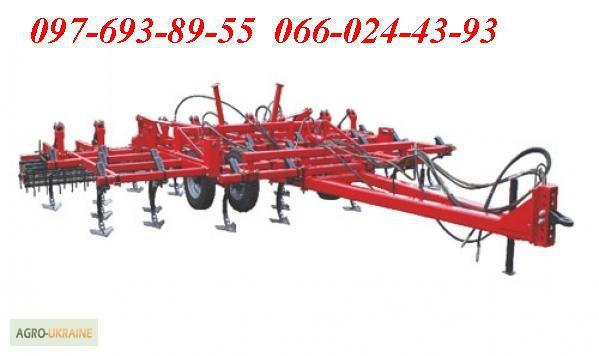

Cultivator KPG-6, Dnipropetrovsk region.

CultivatorKPG-6 is intended for continuouspre-sowing soil treatment and steam treatment with simultaneous harrowing, with specific soil resistance up to 0.5 kgf/cm² (0.05 MPa) and humidity up to 27%.
According to the customer's order, the cultivator can be supplied with various arrow legs from 180 to 330 mm, while the number of working parts of the unit varies. Due to the placement of the working bodies of the unit in 5 rows, uniform passage of even coarse-stalked harvest residues is ensured without clogging the unit.

To level the surface of the field, a spring comb with an adjustable angle of attack of the teeth is located behind the working bodies. The final crushing of earth blocks and leveling of the field surface is carried out by tubular rollers. If necessary, the specified functions can be easily dismantled completely or partially (comb or roller). The processing depth is regulated by the limiters of the stroke of the hydraulic cylinder rod by simply repositioning the adjustment stop rings. The power required for cultivator operation depends on the type and humidity of the soil, the shape of the cultivator paw, the amount of harvest residues on the surface of the field, the depth of soil treatment, working speed and many other factors. A capacity of at least 20 — 27 liters may be required. with. per meter of width of capture
Processing depth 4 -14
Working width (m) 6(//tractor-service.com)
Number of working bodies (pieces) 26
Paw grip width (mm) 260 -330
Tractor power (hp) 120
Transport width (m) 3
High transport (m) 2.8
Mass (kg) 2700
Productivity (ha/h) 6 -10
