MTZ air conditioner,

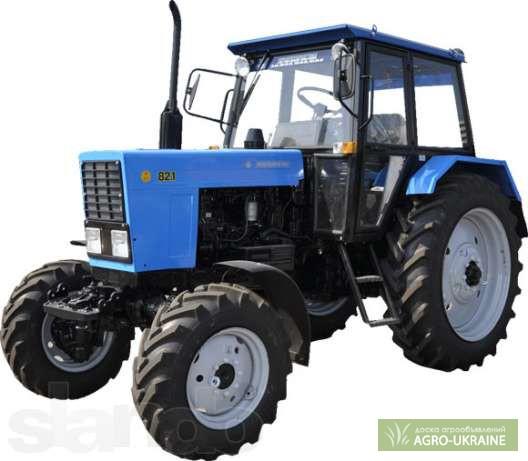

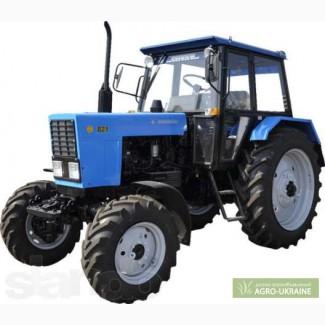

This air conditioner is intended for creating comfortable climatic conditions in the cab of tractors Minsk Tractor Plant of the 80th, 800th and 900th series with the MMZ engine, D-242 (and its modifications).
The air conditioner is designed taking into account all the design features of theMTZ, which significantly simplifies its installation. All consumables necessary for installation are included in the air conditioner kit. Just open the box and you will see that everything you need is included.
Complete set of air conditioner: 149
1. Компрессор SD5H14; «SANDEN» Сингапур;
Type - piston, with vertical fittings outlet-3/4-16UNF(O-ring) inlet-7/8-14UNF(O-ring); Productivity - 138 s/c;
Operating speed - 700-6000 rpm; Number of cylinders - 5 pcs.;
The power supply voltage of the electromagnetic clutch is 12V;
The power consumption of the electromagnetic clutch is 45W;
Drive pulley - 132mm. A2; Belt type - wedge.

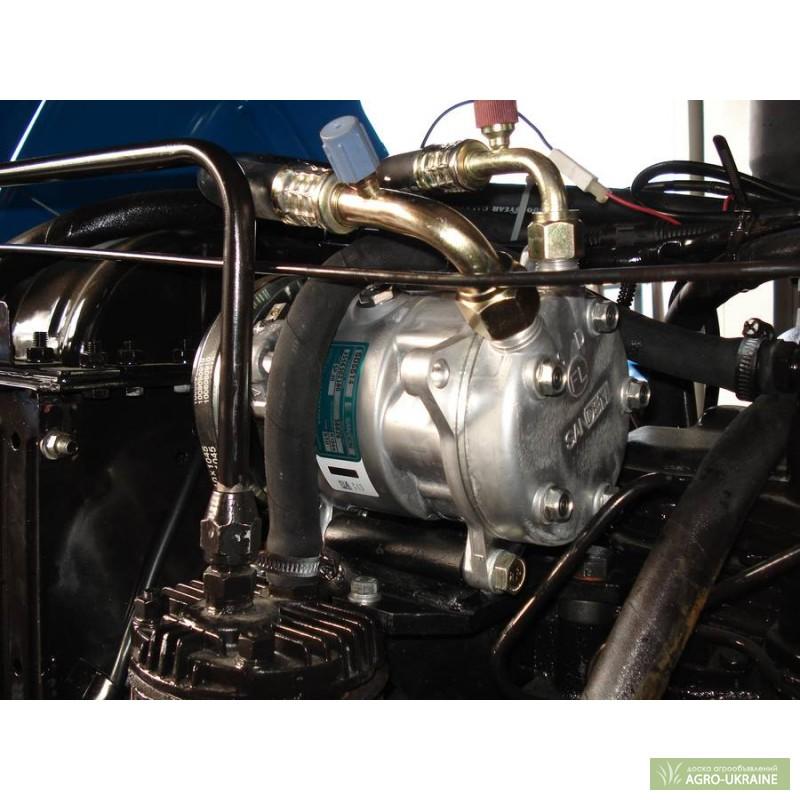

The compressor is installed on the runningtractor engine on the left in the direction of the tractor and is driven by a V-belt. The compressor bracket is specially designed for the MMZ D-242 engine (and its modifications).
2. Evaporative heating unit
With decorative panel, 12V fan, thermostat, TRV, fan speed switch (3 speeds), input 5/8-18 UNF (O-ring), output 7/8-14 UNF(O-ring); Overall dimensions (WxDxH) - 393x317x140 mm; 160
Холодопроизводительность - 5 кВт; Производительность вентилятора - 500 куб. м./час; Потребляемая эл. мощность - 150 Вт; Питание - 12В. (//tractor-service.com)
The evaporative heating unit is installed under the ceiling panel, instead of the standard heater. The air conditioner controls are placed on the ceiling panel.

3. Capacitor:
Copper or aluminum on request with an additional fan is installed in front of the main radiator of the engine.
4. Filter-drier
With a pressure sensor assembly:
incl. compressor - > 2 kg/cm2; Off compressor - > 32 kg/cm2;
5. A set of cooling wires (4 hoses); 170
6. Комплект проводки для послепродажной установки;
7. Compressor mounting bracket, pulley (two-groove).

Options for installation and equipment of the air conditioner can be changed at the request of the customer. Both universal split systems and roof blocks (monoblocks) of increased capacity are available.
