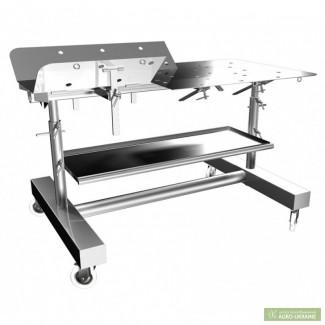

Veterinary surgical table SVH-01, Poltavska region.

Veterinary surgical table SVH-01 is intended for operations, dressings and other treatment and prevention work.

The table is made of high-quality chrome-nickel stainless steel and can be treated with any disinfectants.

Wheels on swivel brackets ensure easy movement of the table, and wheel brakes provide reliable fixation.

Tires made of special light rubber do not leave traces. The height of the table is adjustable in the range from 700 to 1100 mm with a step of 50 mm.

To change the height, it is necessary to loosen the screw fasteners 1 and remove the locking pins 2 on both table posts.

After setting the desired height, the locking pins are inserted into place and the screw fasteners are tightened.
(//tractor-service.com)
The table top consists of five sections.
The central section is immovable, and each of the four side sections can be turned at an angle from 0 to 90 degrees and fixed in the desired position.

Fixing is achieved by sliders 3 with screw clamps.

On the outer edges of the side sections, rings 4 are welded, to which straps holding the operated animal are attached.

Holes are provided in the tabletop for draining liquids, and a tray 5 is used to collect liquids.

The table can withstand up to 150 kg. distributed load.

The weight of the table is 70 kg.
