Sowing planter

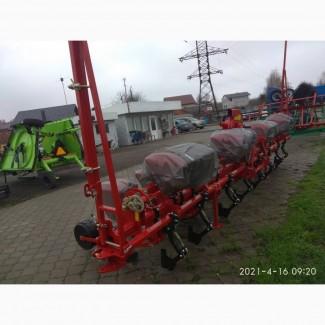

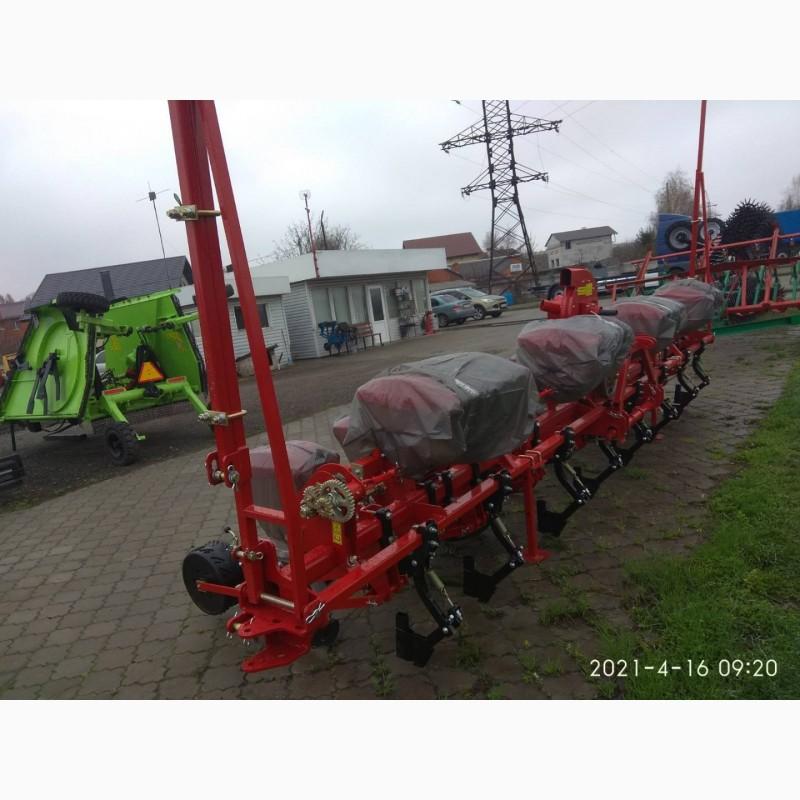

row precision seeding machine Pneumatic UPS-8 are intended for dotted sowing of corn and sunflower seeds, with simultaneous, separate application of granular mineral fertilizers and rolling of the soil in the rows.
Sowing precision seeding machines provide seeding to a final density between plants.
All drive shafts of grain and fat seeders are mounted on rolling bearings.
Due to the location of the axis of the drive wheels on the same line as the grain coulters, simultaneous copying of the field relief is achieved by both the frame and the sowing section.

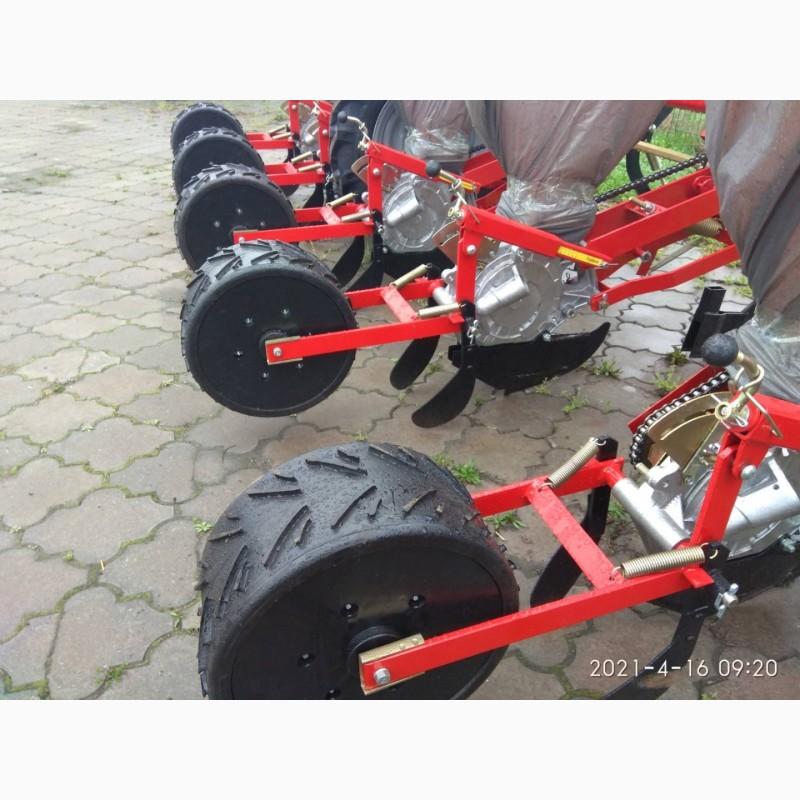

A tread with soil grips on the
tires of the support-drive wheels reduces their slippage, which ensures the specified interval between the seeds.
Planters have a strong hydrofed marker with a larger diameter disc that has the ability to change the angle of attack for a highly visible trail.
The semi-automatic hitch ensures quick and safe connection of the planter to the tractor.
UPS indicators 8
The type of machine is mounted.
Width of capture m 5.6
Number of rows approx. 8
(//tractor-service.com)
Row width mm 450, 600, 700, 900
450x900, 600x1200
Working speed km/h 3.6-9
Productivity ha/h 2-5.04
Hopper capacity (total) dm3
- for seeds 200
- for fertilizers 192
Sowing norms
- for seeds pc/p.m. 2-43
- for fertilizers kg/ha 50-250
Seed wrapping depth mm 40-120
Overall dimensions mm
- in working position 1700x6250x1430
- in transport position 6800x2300x3010
Mass kg 1278±3%
It is aggregated with tractors hp. (ts) 80
