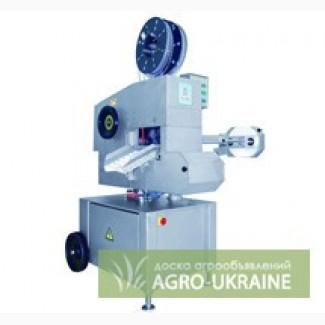

Automatic mechanical clipper HSK18, Kyiv

Clips any membranes, including fibrous and collagen ones. The clip is placed neatly and tightly. There is an adjustment of the compression pressure of the clip;

Clipper speed up to 130 cycles per minute, 9 adjustable clip speed modes;

Optionally, it can be equipped with an automatic device for marking the clip with the production date and an automatic looper;

It is equipped with an auto-cut function with the possibility of making up to 9 loaves in a chain;

It is equipped with a stuffing press that allows you to vary the filling and get clean sausage tails;

The possibility of adjusting the distance between the clips is provided, quick change of the pitch of the clips;

The size of the tightening is from 36 to 140 mm for obtaining various types of production;

Clipsator HSK18 is aggregated with syringes of any manufacturers, ensuring automatic operation mode;

Adjustment of the center of the clip from 920 to 1060 mm.

Main technical characteristics:

Model
HSK18
(//tractor-service.com)
Clipping speed, clip/min
100

Shell diameter, mm
40-160

Knife working pressure, mPa
0.5-0.6

Caliber clip,
18/15

Elektropytanie, V
220

Power, kW
3.5

Mass, kg
700

Overall dimensions, mm
1280x1000x1700
