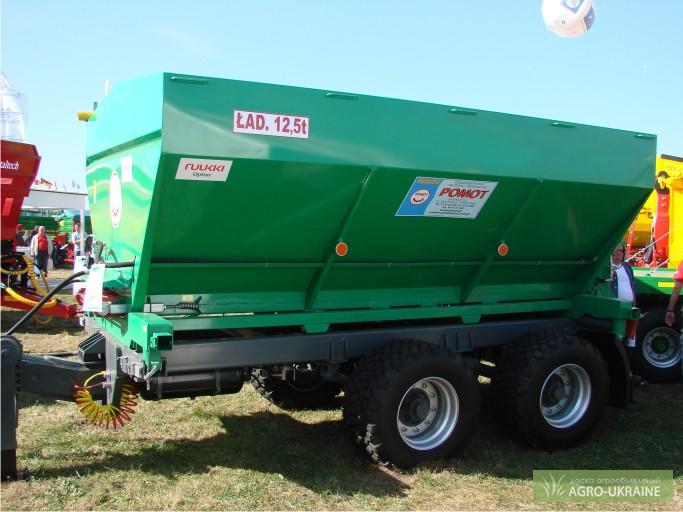

Trailed mineral fertilizer spreaders from 4 tons to 12.5 tons, Lviv region.

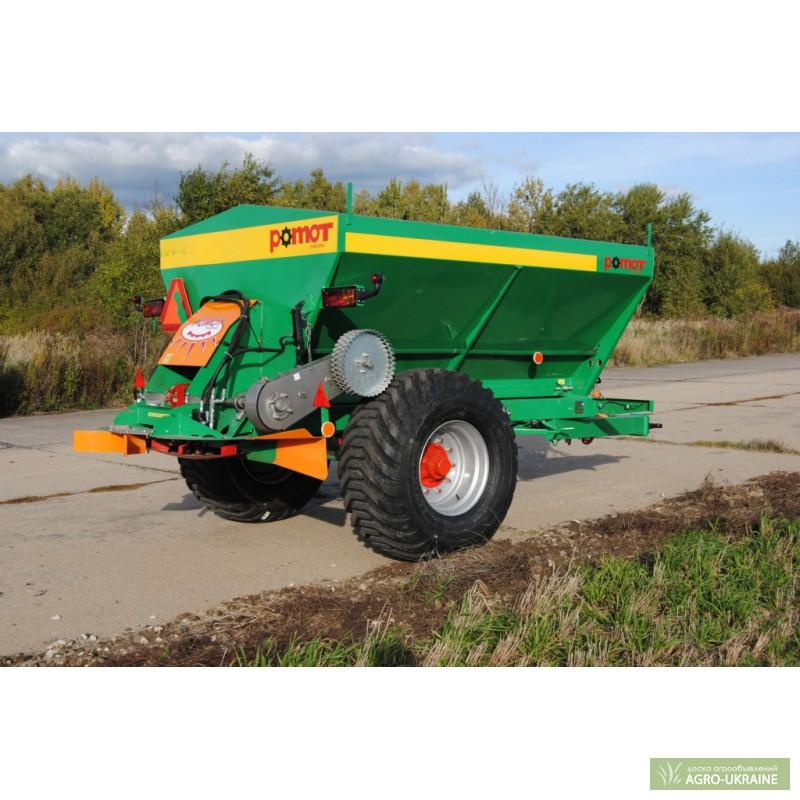

UNIVERSAL TRAILED SPREADER 4.0 T

- chain conveyor with a width of 500 mm

Tank with a capacity of 4,000 liters, max. cargo capacity up to 4 tons
The tank is made of 700mm optim metal sheet with a yield strength of 700n/mm2, which is very resistant to abrasion and mechanical damage.
Lacquered tank (possibility of coating with polyurethane mass).
The tank is located on a frame made of a RUUKKI profile and transverse reinforcing profiles.
Chain floor conveyor with a width of 500 mm.
Mechanical chain rope drive fromwheel.
A three-speed gearbox that regulates the speed of the chain rope and the required dose of fertilizer (depending on the engaged gear).
Two spreading discs made of special metal sheet raex 400.
The blades of the spreading discs are covered with a mass that ensures adhesion of manure to thediscs, which guarantees the appropriate accuracy of spreading and prolongs the service life of the spreading disc.
Regulated blades providing the required spreading width.
Mechanically opening dump valve with an opening range from 0 mm to 300 mm, with an accuracy of up to 2 mm according to 150 grade alloy steel.
Independent, hydraulic drive of spreading disks, the range of revolutions is from 10 to 1127 revolutions per minute.
Control of the speed of revolutions of the spreading disks with the help of a hydraulic-mechanical valve.(//tractor-service.com)
The possibility of individual control of the speed of the right and left spreading plates through individual hydraulic valves.
Scattering width:

Mineral fertilized from 10 m to 36 meters.

Cobblestones from 2.5 m to 18 m

Secondary substances: from 2.5 m to 40 m
Uniaxial suspension with tire 550/60 x 22.5
Mechanically adjustable support leg
Two-wire pneumatic brake system - with 3-stage regulation of braking force
Lighting equipment
Manual brake
Adapted to movement at a speed of up to 40 km per hour.
Spreaders of the POMOT company are built under the license of the TRANSPREAD company
They are ideally suited for spreading all kinds of materials in agriculture, ensuring high efficiency of work and accuracy of spreading.
Diffusers P.U.P. Pomot can be ideally used in utilities.
