Veterinary ultrasound device MyLab Five Vet, Poltava region.

MyLab Five Vet is a last-generation ultrasound device that is open and modular the system is combined with exceptional versatility and portability.

Esaote's ultrasound device differs from similar class medical and veterinary equipment from other manufacturers in terms of clinical accuracy, imaging quality, compactness, functionality, versatility and significant modular potential.

Clinical accuracy is achieved due to the latest technologies in the field of visualization: TEI (improved tissue visualization), MView (multidirectional image viewing mode, elimination of shadows, artifacts, glare), XView (processing of each image frame at the pixel level to avoid most artifacts) and the whole a number of other similar developments.

In addition, the simultaneous connection and use of several types of ultrasonic sensors, convex, linear and phased, increases the informativeness of research.

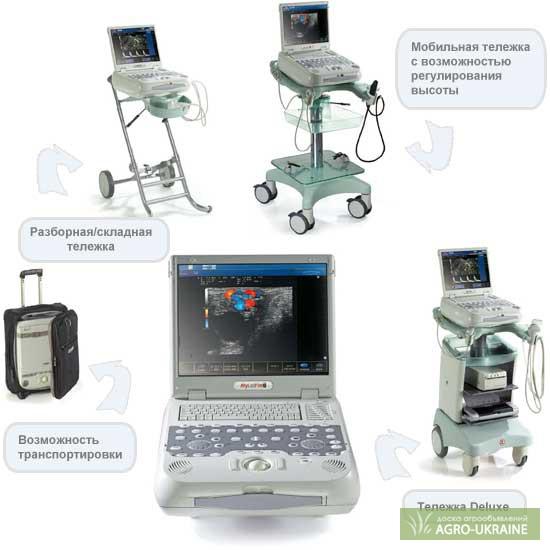

The system has a modern design, which is successfully combined with portability - 15-inch LCD - high-resolution monitor, built-in keyboard, DWD/RW. The use of a mobile cart, a safe case for transportation and a rechargeable battery makes it possible to operate MyLab Five Vet in various conditions.

The universality of the system is realized by a wide range of veterinary licenses (cardiological, abdominal and reproductive package, tendon examination), specialized technologies, as well as the use of multi-chamber and specialized sensors.

The open, modular system allows a flexible approach to the operation of MyLab Five Vet and the implementation of new developments of the Esaote company in the field of portable ultrasound systems.

Main technical characteristics:

• Scanning methods: linear, convex, microconvex, phased

• Scanning modes: B-mode, B – Steer, M – mode, Doppler modes (optional) - CW - continuous wave, PW/HPRF - pulsed wave with high pulse repetition frequency, CFM - color mapping, tissue Doppler mode (TVM (Tissue Velocity Mapping))

• Image formats: full screen, polyscreen (B / M - mode, B - mode + doppler), multiplex formats

• Connector for simultaneous connection of 3 sensors: (multi-frequency convex, microconvex, linear, phased and Doppler sensors)

• Variable aperture and dynamic focusing

• Adjustable focal point position.

• Fully digital converter of the visualization beam

• Technologies for improved visualization: TEI, Mview, Xview

• Specialized packages for research: cardiological package for the study of dogs, cats andhorses, abdominal package for the study of dogs, cats and horses, reproductive research in dogs, cats and horses, research tendon (horses)(//tractor-service.com)

• Specialized technologies: Stress Echo, Contrast(CnTI), Xstrain (only in off-line mode), CMM (anatomical M mode), V-PAN

• Color 15” LCD monitor with high resolution

• Two-processor complexes with Unix and WindowsXP software

• Windows formats (BMP, AVI) for saving images and clips

• Archiving of research results in real time mode

• Built-in hard disk, as well as an external CD/DVD reader and writer (optional)

• Software - MyLab™ Desk, DICOM, IHE, Privacy HIPAA

• Connecting ports - RS – 232, LAN RJ45, 2 USB

• Dedicated ports – audio input/output, ECG port, footswitch port, headphones, microphone

• Video input/output – XVGA output/input, XVGA output/input (auxiliary monitor), SVHS output/input, VHS output/input, RGB, video standart PAL/NTSC

• Power consumption 120/200 W, 50/60 Hz

• Power from the battery (optional)

• Weight – 8 kg
Ultrasonic sensors of the last generation

High-efficiency sensors with high crystal density guarantee maximum image quality in all diagnostic cases
The extended frequency range makes it possible to accurately adjust the frequency for all areas of use, including standard and harmonic displays of ultrasonic waves
High sensitivity of Doppler modes, including CFM color mapping. Energy (Power), directional energy (VeloPower) and spectral PW/CW Doppler/
Flexible cable for convenience and maneuverability during research.
Durability and reliability allow the MyLab Bridge VET device to be used in the most extreme conditions. 222
