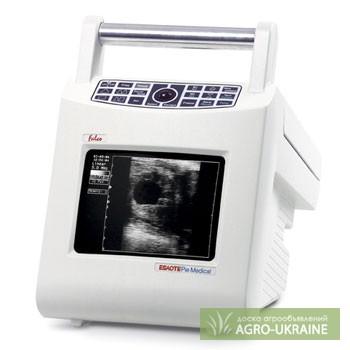

Veterinary ultrasound device 100 Falco Vet, Poltava region.|| |124

Portable portable digital scanner

It can be delivered with or without a trolley. This device has a compact design and many advanced features typical of more expensive and stationary machines. The combination of a 9-inch monitor with a high resolution, a disk drive, automatic electronic focusing and focusing over the entire scanning depth, a film loop (film memory) and a rechargeable battery make this device unique among portable machines.
An ideal solution for a practicing veterinarian. A huge software package has been developed for this model. It is used for examining horses,pigs, sheep and small animals.

Obstetrical examinations Diagnosis of pregnancy, viability of the fetus, evolution of the uterus.
Gynecological examinations Ovarian diseases, uterine pathology.
Investigations of the urinary bladder Kamna.
Ascites Location and nature of fluid.
Pleural effusion Septic or neoplastic.
Limbs Rupture or tendon inflammation.
Examination of testicles Noplasia and atrophy.

Technical characteristics(//tractor-service.com)

Linear and convex scanning method;
Display B-mode, I/V - mode, I/M, M;
Frequency 3.5; 5.0; 6.0; 7.5; 8.0;
3.5 MHz range: 0-20 cm; 5.0MHz: 0-12cm 8MHz: 0-7cm
9-inch monitor;
Frame rate 50/60 frames/min;
Digital scanning converter;
Image storage of 2 full screen blocks;
Magnification Manual control
Power supply 110/240V, 50/60Hz
Dimensions 27x38x37 cm
Weight 13 kg (with battery)
Battery 12V/7.2 A/h (Panasonic) working time - 2 hours
