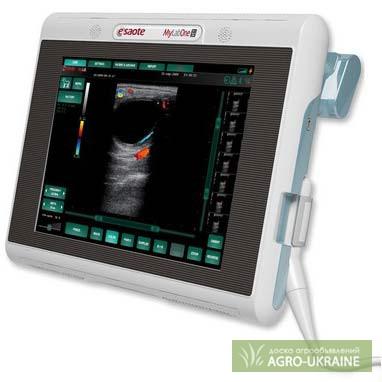

Veterinary ultrasound device MyLabONE Vet, Poltava region.

Company Esaote, European manufacturer of high-class ultrasound systems, which has been working on the market of ultrasound equipment and software in the field of veterinary medicine for more than 25 years, presents the new ultrasound device MyLabONE Vet.

MyLabONE Vet is a qualitatively new type of HIGH END class portable ultrasound devices for veterinary medicine. A new standard in diagnostics is achieved due to the latest developments in the field of electronics and software, consistently high-quality assembly, taking into account the opinion of practicing veterinarians, as well as the introduction of innovative technologies in the field of ultrasound and sensor design.

Among the technical innovations, it should be noted - a 12-inch TFT monitor with "touch screen" technology, automatic adjustment of buttons when the screen is turned over, a perfect communication system (2 USB ports, WF - communication), broadband ultrasonic sensors of the latest generation iQprobe with a frequency of up to 22 MHz.|| |139

Спектр применения нового ультразвукового аппарата MyLabONEVet расширяют ряд специализированных аксессуаров – силиконовый чехол, ремень, настольная и передвижная стойка.

The silicone cover reliably protects the equipment from the negative effects of the environment when conducting ultrasound examinations in field conditions - on farms, animal breeding complexes.

The strap provides firm fixation on the forearm and reliable support on the shoulder. This design reduces the load on the hand and allows you to conduct long-term screening studies in large agricultural complexes.

A desktop stand with an independent communication and power supply system makes it possible to work comfortably in diagnostic rooms of veterinary clinics, as well as to work with data obtained in the field.

A mobile stand with an independent power supply system, the possibility of height adjustment and a shelf for additional equipment will provide comfortable working conditions in operating veterinary clinics and hospitals during surgical interventions.

Brief technical characteristics:

Scanning methods: linear, convex

Ultrasound visualization modes: B mode, PW mode (pulse doppler), B mode and PW color mode, M mode, CFM mode (color Doppler mapping), power Doppler mode PWR D (Doppler modes optional)| ||155

Режимы монитора: горизонтальное/вертикальное расположение, черно/белая шкала на 256 оттенков, цветная шкала на 256 оттенков, ориентация влево/вправо и вверх/вниз, триплексный режим в реальном времени, В – / В – режим (CFM или PWR D) , В – / М – режим, В – / PW – режим, В – / CFM – / PW – режим, В – / PWR D – режим, В / PWR D / PW – режим, все комбинации в цвете

Специализированные лицензии: DICOM (программный пакет для интеграции в сеть ветеринарной клиники), пакеты исследований по кардиологии, абдоминальным исследованиям, репродуктивным исследованиям, а также исследований сухожилий и суставов.
(//tractor-service.com)| ||160
Специализированные технологии: XView™, XHF™, TEI™

Control panel: fully digital platform

System of archiving and display of results: "Freeze" mode, film loop, measurement of studies, body tags of various categories of animals, real-time archiving system, 128 MB film memory (500 clips of 25 seconds on average), built-in computer with 2 GB memory, hard disk 80 MB, database of the veterinary clinic, the possibility of adding notes to saved images

Software: interface using touch screen technology, WIN XP Pro operating system, MyLabDesk software package

Characteristics of the monitor: 12-inch TFT screen with "touch screen" technology, control is carried out with the help of touch buttons under the image - user (User), settings (Settings), patient and archiving (Patient & Archive), report (Report)

Communication system in a portable version: 2 USB ports, ZIF port for ultrasonic sensor, Docking station port, DC adapter port, Bluetooth or Wi-Fi wireless connection, VESA port

Desktop stand: tilt and stability mechanism, charging, additional ports: 3 USB ports, external DVI, LAN and RS 232 port, microphone, external speaker

Mobile stand: 4 self-orienting wheels with brakes, additional shelf, printer stand

Used sensors: broadband ultrasonic sensors of the latest generation with improved ergonomics (unique apple-shaped shape) with a frequency range from 2.5 MHz to 22 MHz, which meets all possible requirements in veterinary medicine.

Types of ultrasonic sensors:

Linear sensor SL3323 40mm - 6 – 13Mg with improved design (apple probe design). For the study of surface structures: tendon, bone tissue, small organs in small and large animals. Research of reproductive organs in fish.

Convex sensor SC3421 40 mm 3 – 7 MHz with an improved design (apple probe design). For diagnostics of pregnancy and abdominal studies in animals. Research on reproductive organs of fish.

Microconvex sensor SC3123 14 mm 6-10 MHz with an improved design (apple probe design). Abdominal studies of small and medium-sized animals, cardiology, pregnancy diagnostics. Research on reproductive organs of fish.

Rectal linear sensor SV3513 50 mm 5 - 10 MHz. For diagnosing pregnancy and the functional state of the ovaries and uterus. Studies of joints and tendons in horses andcattle, studies of the percentage of intramuscular fat and subcutaneous fiber (spy) inpigs, коней и крупного рогатого скота, измерение толщины и объема мышц.
