Analyzers of electrolytes and blood gases OPTI CCA TS, Poltava region.

OPTI CCA TS - Мобильный анализатор газов крови и электролитов

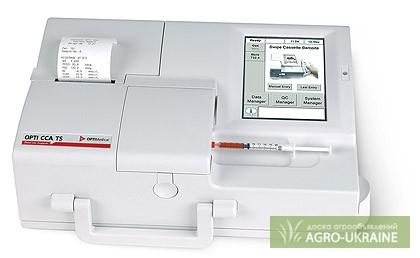

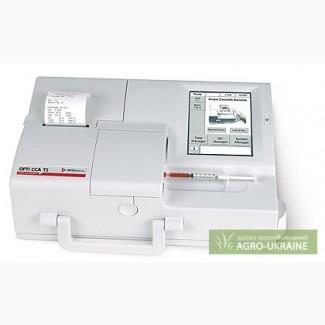

Portable analyzer of electrolytes and blood gases for use in emergency conditions outside the hospital or in the hospital. It provides the ability to measure pH, PCO2, PO2, Na+, K+, iCa++, Cl-, Glucose, Urea, Lactate, Hemoglobin, SO2. The total weight of the analyzer is less than 5.5 kg, which makes it easy to carry it to the required place. It can work from its own battery (up to 8 hours) or from the network.

Control from the built-in color touch screen.

FEATURES

OPTI CCA

Innovative technology - economy of means
Obtaining an accurate research result at minimal costs in case of downtime. Disposable cassettes stored at room temperature are used for measurement. Cassettes are based on innovative optical technologies. The analysis is performed by a non-contact method, which allows you to avoid regular service maintenance of the electrodes, as in other analyzers.

Wide temperature range
The OPTI CCA TS measuring unit maintains a temperature of up to 37 C. This allows you to work even in cold rooms, including operating rooms.

An extensive selection of tests
To meet the need for a wide range of analyses, OPTI CCA TS has a large selection of cassette configurations. Each cassette is individually packed, which excludes the possibility of damage. Cassettes are supplied in boxes of 25 pieces.

USAGE

OPTI CCA

Analysis in three steps

Install the cassette
Mix and set the pattern
Get measurement results

Ease of use

Informative touch display provides easy control of the device.
Automatic sampling excludes errors when selecting the required volume of the sample for research.
The thermostatic measuring unit allows you to use even frozen samples

TECHNOLOGIES
Opti CCA

The OPTI CCA analyzer is a microprocessor instrument that measures optical fluorescence from discrete sensors called optical electrodes. The disposable cassette contains everything needed for calibration, sample measurement and waste collection. Special calibration information is read into the analyzer using a barcode. Next, the cassette is inserted into the measuring block.

The analyzer heats the cassette to 37.0° ± 0.1°C and performs a calibration check on the sensors for PCO2 and PO2, passing the calibration gas mixture along the sensors. The pH and electrolyte channel are calibrated with the buffer contained in the cassette. After passing the calibration, the analyzer passes the sample through the cassette along the sensors. The light beam is measured after equilibration with a blood sample.

Cassette types OPTI CCA TS

Cassette B: pH, PCO2, tHb, SO2
Cassette E: pH, PCO2, tHb, SO2, Na+, K+
Cassette E-Ca: pH, PCO2, tHb, SO2, Na+, K+, Ca++
Cassette E-Cl: pH, PCO2, tHb, SO2, Na+, K+, Cl-
Cassette E-Glu: pH, PCO2, tHb, SO2, Na+, K+, Glu
Cassette E-BUN (urea): pH, PCO2, PO2, Na+, K+, BUN (urea), tHb, SO2
Cassette B-Lac: pH, PCO2, PO2, Lac, tHb, SO2

Properties of OPTI CCA TS cassettes

They are stored at room temperature, eliminating possible problems with storage and transportation.
Information about the cassette and its calibration is stored in the cassette itself.
Long shelf life, 6-8 months from the date of manufacture.
Easy and safe to maintain.
Automatic sample aspiration
The absence of electrodes eliminates regular maintenance.
Reagents are not required until the analyzer is used.

SPECIFICATION
Working characteristics
Required volume of blood
Sample type
Aspiration of the sample
Sample collection
Analysis time
Operating temperature range
Relative humidity
Principle of measurement

125μl
Whole blood,serum, plasma
From syringes, capillaries, ComfortSamplers
Automatic
<120 sec.
from 10 to 32°С
from 5 to 95%
Optical fluorescence, reflected photometry

Technical characteristics
Measured parameters Range of measurements Resolution
pH
PCO2
PO2
Na+
K+
Cl-
Ca++
Glucose
Glucose
tHb
SO2
Barometric pressure
Urea nitrogen
Urea
Lactate
from 6.6 to 7.8
from 10 to 200 mmHg
from 10 to 700 mmHg
100 - 180 mmol/L
0.8 - 10 mmol/L
50 - 160 mmol/L
0.2 - 0.3 mmol/L
30 - 400 mg/dL(//tractor-service.com)
1.7 - 22 mmol/L
5 - 25 g/dL
60 - 100%
from 300 to 800 mmHg
from 2.8 to 112
from 1 to 40
from 0.3 to 17.5
0.001
0.1 mmHg
0.1 mmHg
0.1 mmol/L
0.01 mmol/L
0.1 mmol/L
0.01 mmol/L
0.1 mg/dL
0.1 mmol/L
0.1 g/dL
0.1%
0.1 mmHg
0.1 mg/dL
0.01 mmol/L
0.01 mmol/L

Calculation parameters
Actual hydrogen carbonate (HCO3)
Excess is based (BE)
Additional surplus based on cellular fluid (BEecf)
Actual surplus based (BEacf)
Buffer base (BB)
Total CO2 (tCO2)
Standard hydrogen carbonate (st. HCO3)
Standard pH (st. pH)
Oxygen saturation (SO2)
Oxygen content (O2ct)
Hematocrit (Hct)
Concentration of hydrogen ions (cH+)
Alveolar-arterial gradient of oxygen (AaDO2)
Anion interval (AG)
Standardized ionized calcium (pH=7.4) (nCa++)
P50

1 - 200 mmol/L
-40 - +40 mmol/L
-40 - +40 mmol/L
-40 - +40 mmol/L
0 - 100 mmol/L
1 - 100 mmol/L
2 - 200 mmol/L
6.5 - 8.0
0 - 100%
0 - 56 mL/dL
15 - 75%
10 - 1000 nmol/L
0 - 800 mmHg
3 - 30 mmol/L
0.1 - 3.0 mmol/L
15 - 35 mmHg

Data management
Printer
Display
Management
Interface
Memory
Quality control

Built-in thermal
sensory
sensory
RS-232, ACII or ASTM format
200 results
30 days

Input parameters
The patient's temperature
Hemoglobin
Type of hemoglobin
.
Average concentration of red blood cells (MSCN)
P50
FIO2
RQ
Gender of the patient
ID number of the operator
ID of the patient

14°С - 44°С
1 - 26 g/dL
Adult / Fetal
29 - 37%
15 - 40 mmHg
0.21 - 1.0
0.7 - 2.0
M/F/Unknown
Up to 10 digits
Up to 15 digits

Dimensions and weight
Height X Width X Depth
Weight

124mm X 362mm X 230mm
4.5 kg without battery, 5.5 kg with battery
