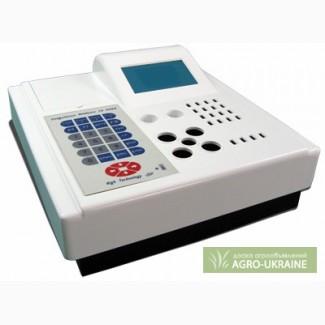

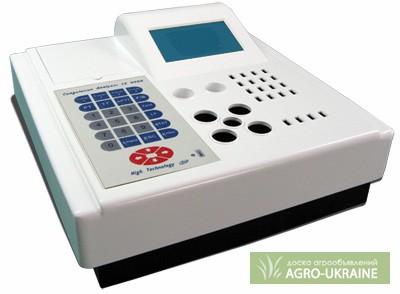

Coagulometer TS 4000+, Poltava region.

TS 4000+ is a 4-channel system , intended for the implementation of in vitro coagulation tests of citrate plasma and blood samples in a clinical laboratory

Tests
Prothrombin time;
Protein C, S;
Fibrinogen,
Thromboplastin time;
Activated partial thromboplastin time;
Coagulation factors (FII, FV, FVII, FIX, FX, FXI, FXII);
Antithrombin III;
Heparin, etc.

The incubation block of the device has the following set of thermostatically controlled cells (36.5-37.5°C): 4 measuring cells, 16 cells for samples, 5 cells for reagents. The coagulometer also has an on-board time stop function, output to an external printer, computer, and autopipette.

Technical characteristics
Voltage: 198 -242 Vac.
Frequency: 49 – 51 Hz.
Input power: 70 W.
Heating time: 20 minutes.
Measurement accuracy: +3%.
Channel stability: +3%.
Repeatability: +3%.
Accuracy of thermostat: +3%.(//tractor-service.com)

Keyboard: 4X8 matrix, soft keys. Test, functional, numbered keys.

Display: Liquid crystal monitor (240X128 pixels).

Displayed results
in seconds (coagulation time)
% activity (concentration of fibrinogen)
INR (international normalized ratio (for tested time)) mg/dl, g/l, %

Working conditions
Temperature range: 10 - 30 C.
Relative humidity: < 80%
Atmospheric pressure: 70 - 106 kPa.

Incubation block
4 positions for four-hole cuvettes,
5 positions for reagents, 1 position for measuring a 4-well cuvette.

Automatic pipette
The device includes a starting automatic pipette. Using a pipette allows you to automatically start the analysis and, therefore, minimize errors associated with the operator's work. The pipette is connected to the socket on the back panel of the coagulometer.

Dimensions: 36 cm x 32 cm x 14 cm;
Weight: 4 kg.
