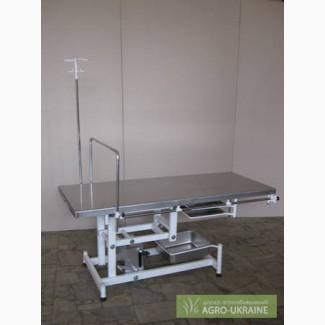

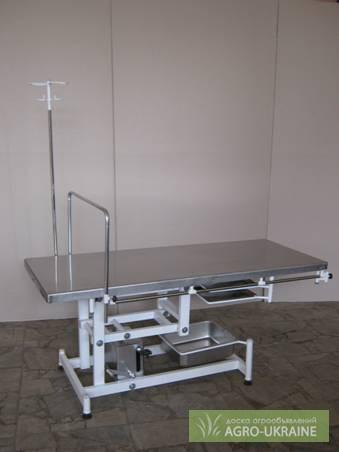

Veterinary universal SVU table, Poltava region.

1. Technical characteristics:
- Maximum load capacity, kg 100
- Panel height above floor level, mm
- minimum 645
- maximum 1000
- Panel dimensions, mm (length x width) 1300x600
- Lifting of the panel, for one press of the pedal, mm 6
- Dimensions of the table, mm 1300x850x1000
- Mass, kg, no more than 55
- Average service life, years, not less than 8

2. Structure and working principle(//tractor-service.com)

2.2. The table is a prefabricated structure consisting of a fixed base, a panel, a lever mechanism, a lifting-lowering panel and a hydraulic drive that allows vertical movement of the panel with fixation of the selected height.

2.3. The base of the table is installed on four screw supports, which serve to install the table panel at the level relative to the floor of the operating room.
A swivel bracket with a cassette for installing a large tray is located on one of the base supports.

2.4. The table panel consists of a tubular frame with vertical racks that are part of the lever mechanism for vertical movement of the panel.
The flat surface for the panel and its sides are lined with a sheet of corrosion-resistant steel (stainless steel). Under the panel there is a bracket with two rotating cassettes for installing small stainless trays. At the corners of the panel there are four swivel brackets for installing a tripod stand. Under the panel, along its long sides, staples and hooks are evenly spaced, intended for fastening belts that fix the animal's body during the operation.

2.5. The mechanism for raising and lowering the panel is located between the base and the table panel.
and consists of a system of levers controlled by a hydraulic drive. The support surface of the hydraulic drive is located on a swinging platform, strengthened on the base, and the push rod of the hydraulic drive is fixed on one of the connecting rods connecting the base racks with the vertical racks of the tubular frame of the panel.

2.6. Control of the hydraulic drive is pedal: by repeatedly pressing the right pedal, the panel is raised, by pressing the left pedal once, it is smoothly lowered (to stop the lowering of the panel, it is enough to remove your foot from the pedal).
