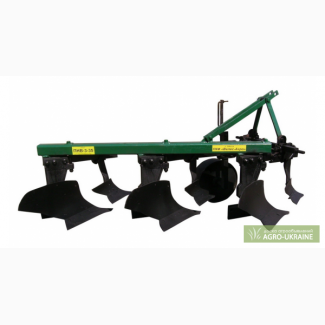

Plough PNV-3.35 with front plough, Dnipropetrovsk region.

PloughPNV-3.35with front plow

Plow PNV-3.35 with front plow is intended for plowing soils not clogged with stones, slate and other obstacles, for grain and technical crops to a depth of up to 30 cm, with specific soil resistance up to 0.09 MPa and hardness up to 4.0 MPa.

The main difference between a front plow and an angle plow is that a front plow removes the top layer of soil and lowers it to the bottom of the furrow, while an angle plow cuts only the corner of the soil layer.

Technical characteristics
Unit type
in spring
Width of capture (m)
1.05
Productivity (ha/hour)
0.63 - 0.84
Working speed (km/h)
8 - 10(//tractor-service.com)
Processing depth (cm)
18 - 30
Number of working bodies (pieces)
3
Габаритные размеры
see below
Length (mm)
2650
Width (mm)
1370
Height (mm)
1270
Mass of the unit (kg)
475
Required power of the tractor (hp)
80 - 90
