Kolchato-sporovy KKSH-6G skating rink, Kharkiv region.

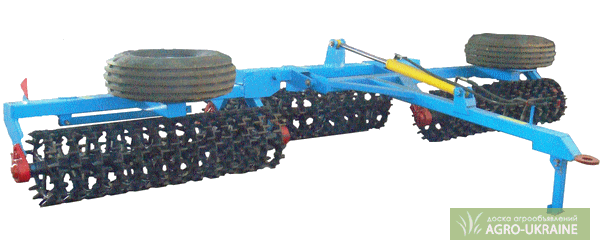

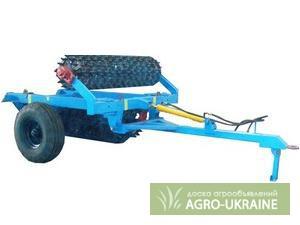

Ring and spur rink KKSH -6G The roller is intended for compaction of the upper layers of the soil with simultaneous crushing and partial leveling of the surface.
Semi-trailer, in the transport position on pneumatic tires, hydrofed, interchangeable nodes.
The rollers are equipped with working bodies: Disc F520 (steel) and in modification -01 Disc F460 (cast iron).
The use of a roller improves the uniformity of seedlings, protects crops from being blown by the wind and from being destroyed by birds, which allows you to increase the yield by up to 30%.
Ring-tooth roller KKSH-6G
Productivity, ha/h >7
Working speed, km/h up to 10
Transport speed, km/h up to 20
Working width, mm 6,000(//tractor-service.com)
Diameter of the working disc, mm 520 (460)
The diameter of the shaft in the area of ​​the working disc, mm 60
Bearing 3609

Overall dimensions:
length, mm 3 580
width, mm 6 240
height, mm 970
Mass, kg 2,900
