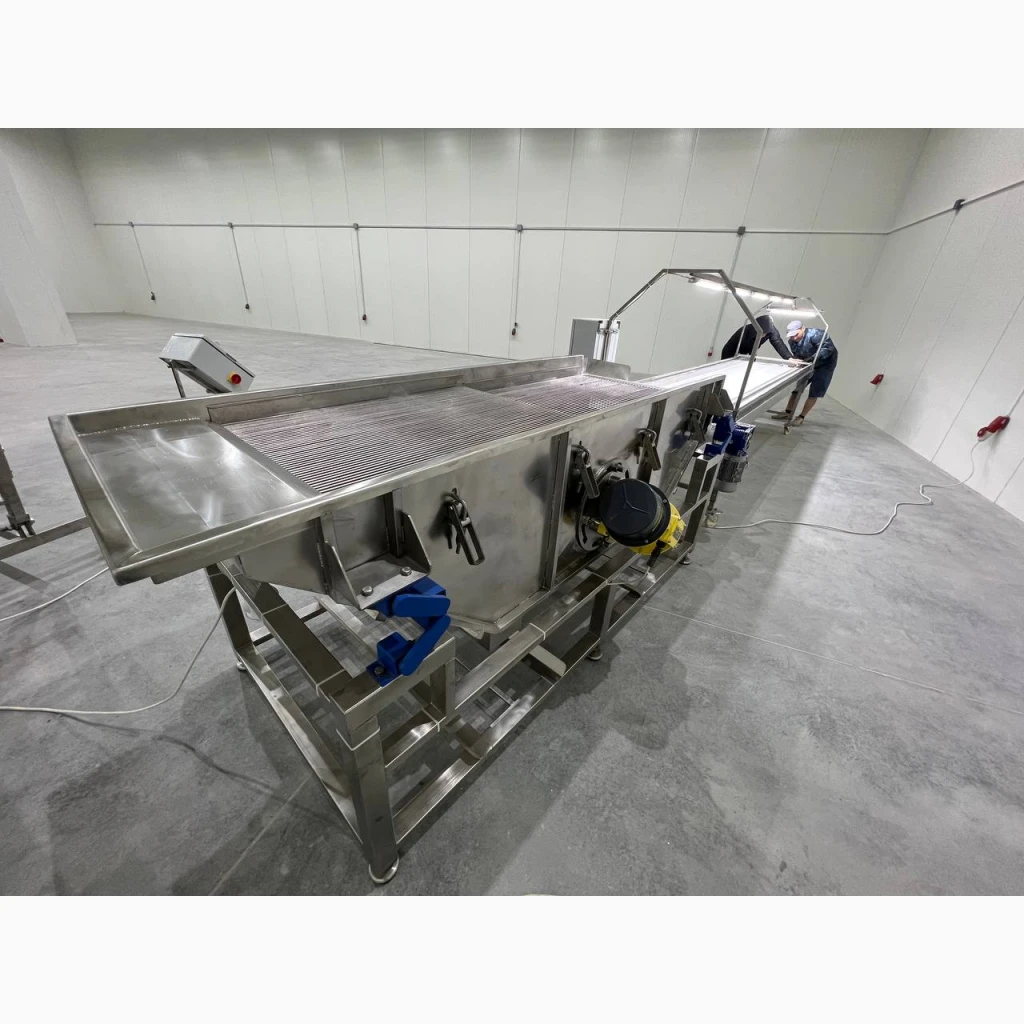

Cascade-type vibrating screen for frozen raspberries, Poltava region.

VIBROSITE CASCADE TYPE is intended for sorting frozenraspberries, two sieves are installed, which are placed in a cascade, the berry, passing from one level to another, turns over, due to which scrap and grits are effectively separated from the raspberry. The distance between the bars is chosen by the customer. The frequency of vibration is regulated using a frequency converter, which allows you to adjust the intensity of oscillations depending on the needs of the calibration process.
Productivity: 2500 kg/h.
Length: 2400 mm
Width: 800 mm(//tractor-service.com)
The size of the sieves: 800*1000 mm.
Field vibrators: 0.75 kW - 2 pcs.
Bar sieve: Ø8 mm
Oscillating supports ROSTA: 4 pcs.
Connection: 380 V
