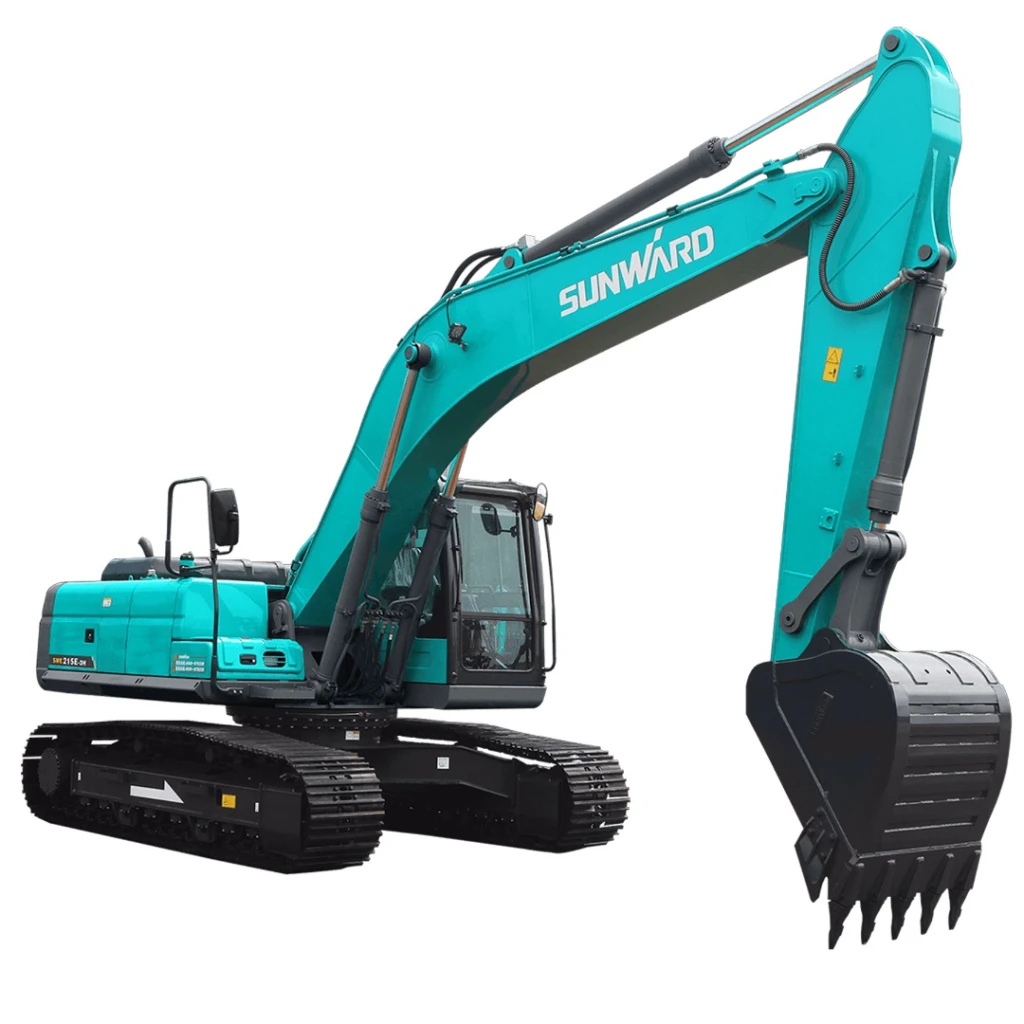

Tracked excavator Sunward SWE215E-3H, 21, 8t, bucket 1m³, Cummins 124kW, Kyiv

The Sunward SWE215E-3H tracked excavator is a reliable mid-range solution for construction, quarrying, earthmoving and utility work.

Technical characteristics:
● Operating weight: 21.8 t
● Bucket volume: 1 m³
● Bucket cutting force: 155 kN
● Cutting force of the handle: 110 kN
● Maximum clutch force: 232 kN
● Movement speed (max/min): 5.2/3.3 km/h
● Lifting angle: 35°
● Ground pressure: 47 kPa
● Platform rotation speed: 11.8 rpm
● Engine: Cummins QSB7, 4-stroke, water-cooled, turbocharged
● Working volume of the engine: 6.7 l
● Engine power: 124 kW / 2050 rpm
● Fuel tank capacity: 370 l
● Mainpump: 2-piston variable, flow rate 2×230 l/min
● Main valve pressure: 31.4/34.3 MPa
● Tank capacityhydraulic oil: 250 l

Working ranges:
● Boom length: 5700 mm
● Handle length: 2920 mm(//tractor-service.com)
● Max. digging height: 9750 mm
● Max. drop height: 6980 mm
● Max. digging depth: 6750 mm
● Max. digging depth (2.44 m, horizontal): 6560 mm
● Max. vertical digging depth: 5900 mm
● Max. digging radius: 9940 mm
● Min. turning radius of the platform: 3560 mm

Dimensions:
● Total length: 9570 mm
● Total height: 2970 mm
● Total width: 2990 mm
● Track width: 2990 mm
● Track width: 600 mm

Advantages:
● A powerful, reliable Cummins engine with a wide service network in Ukraine
● Tested hydraulic system andlarge volume pump - significant cutting force
● Sunward control technology — smooth and accurate equipment movements, low fuel consumption
● Reinforced square track frame and monolithic forged platform frame — resistance to torsion in severe conditions
● Centralized and organized places for installing additional equipment — convenience of maintenance.

New excavator, official warranty of the manufacturer Sunward, service and spare parts in Ukraine. Delivery throughout the country, leasing for legal entities is possible.
