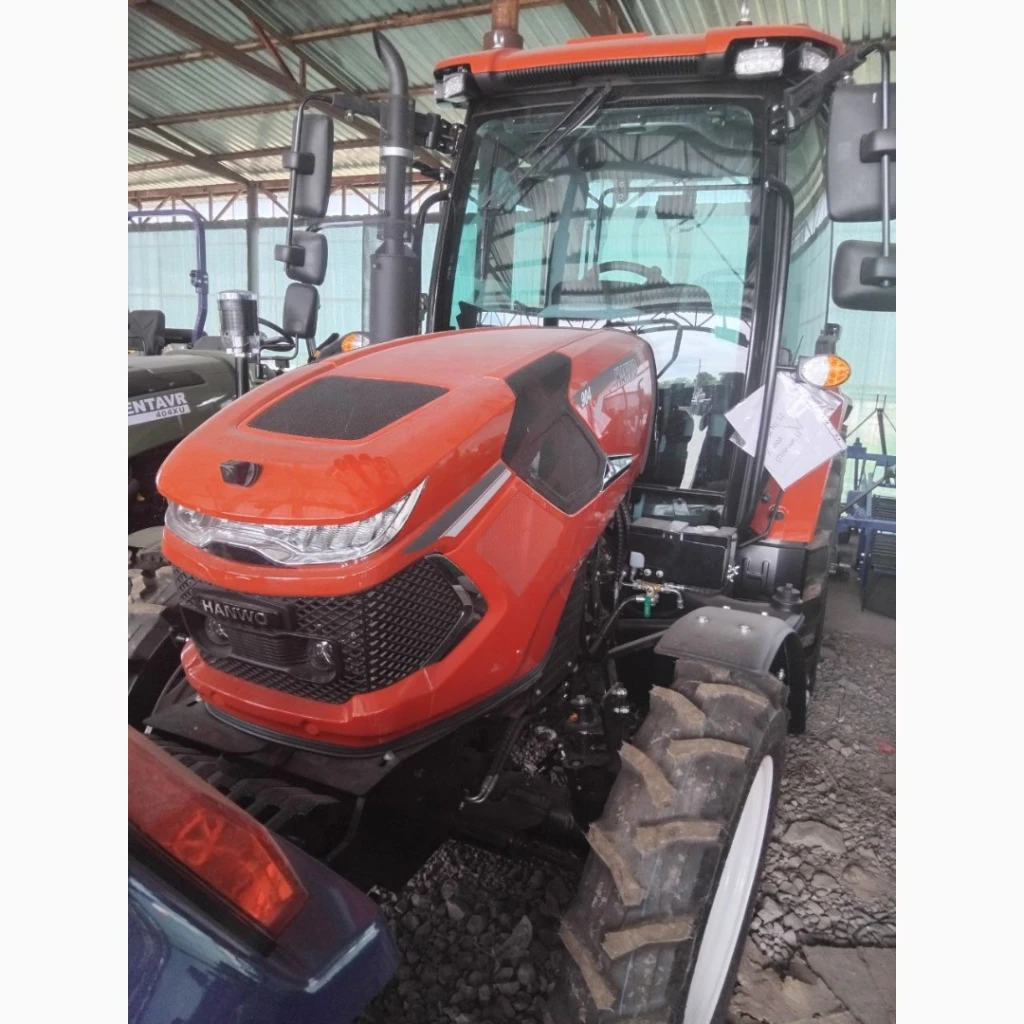

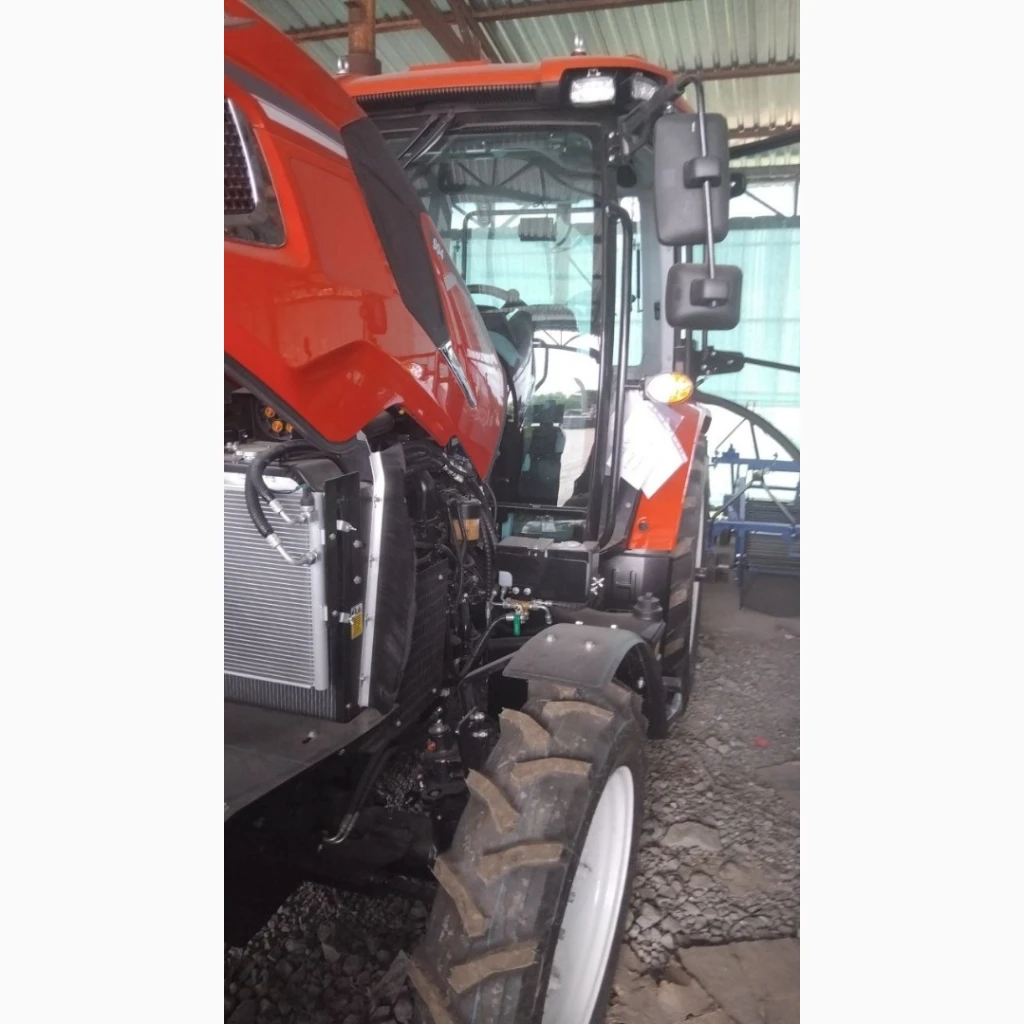

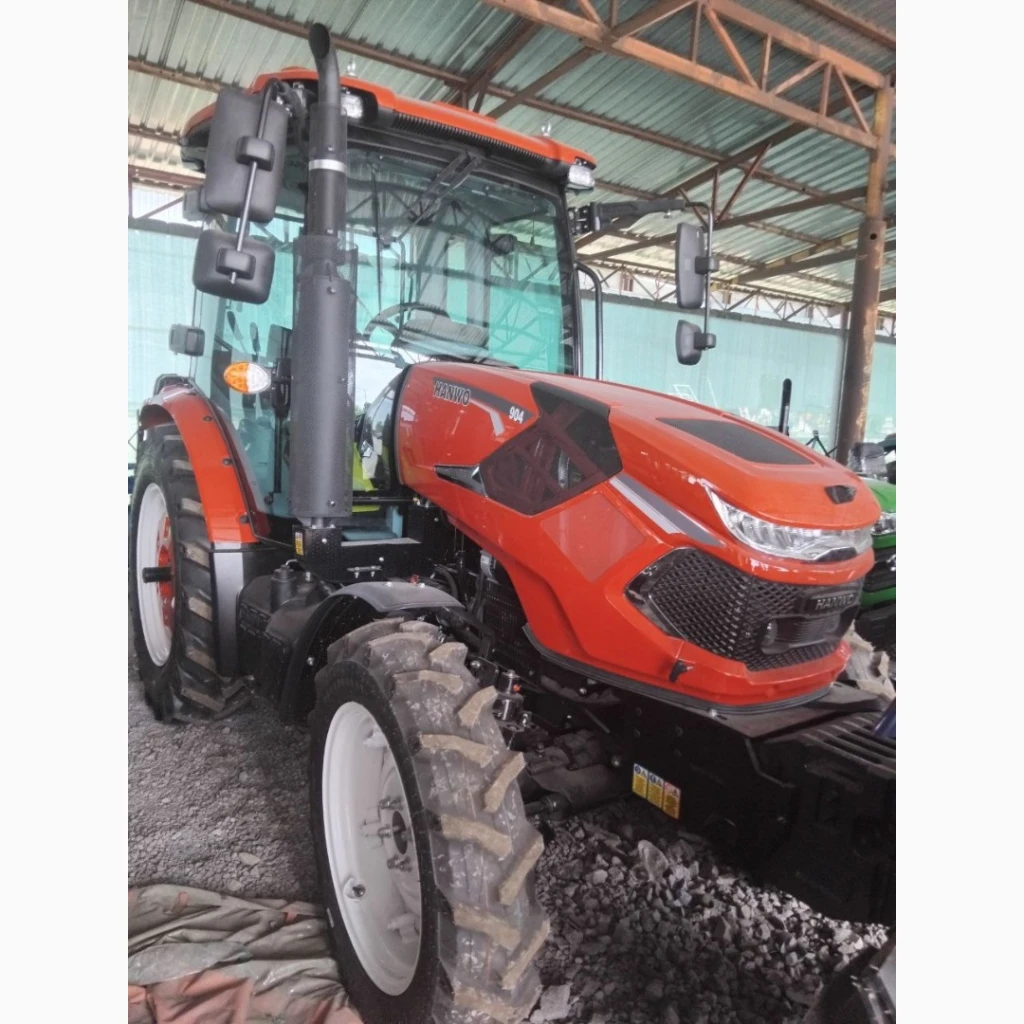

Wheel tractor Hanwo 904 for 90 forces - Red, Dnepropetrovsk region.

Nominal traction force, kN - 25.2
Overall dimensions (LxWxH), mm - 4230x1770x2785
Operating mass, kg – 3,660

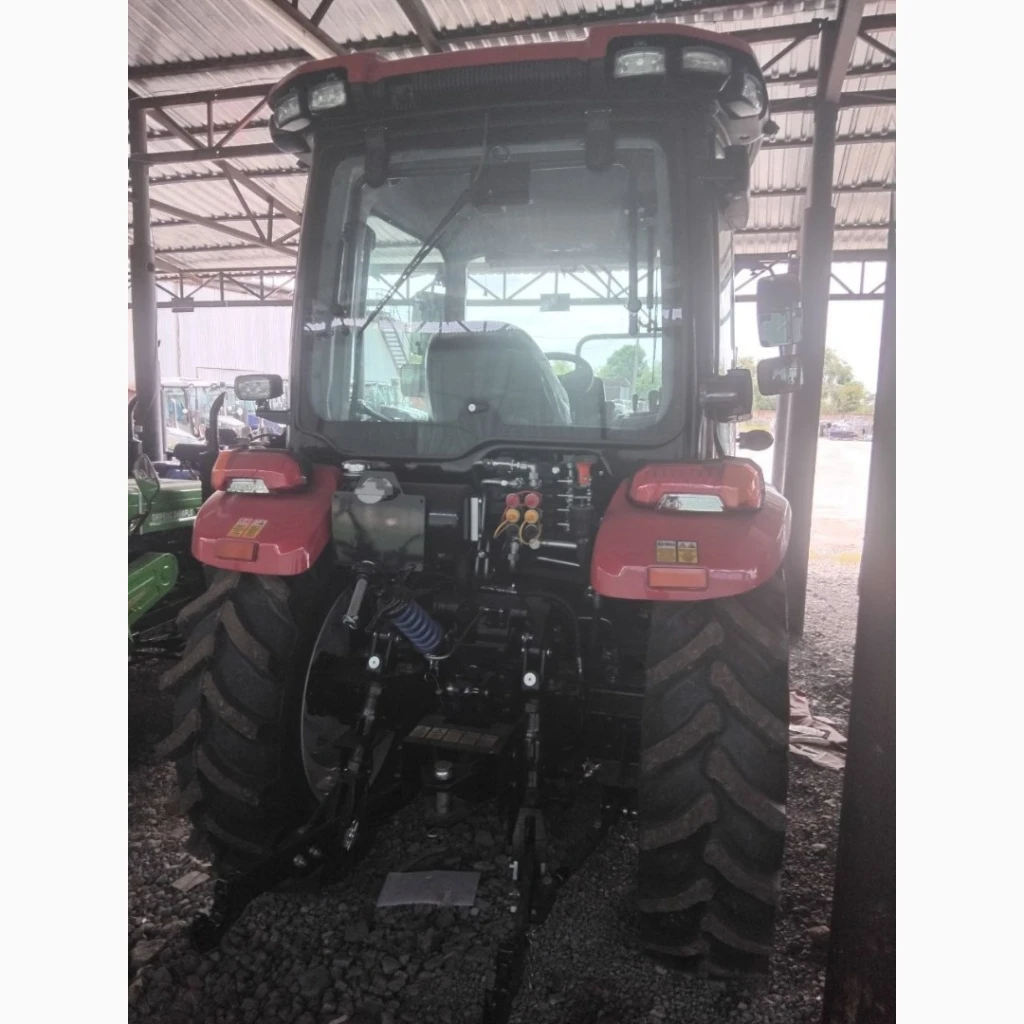

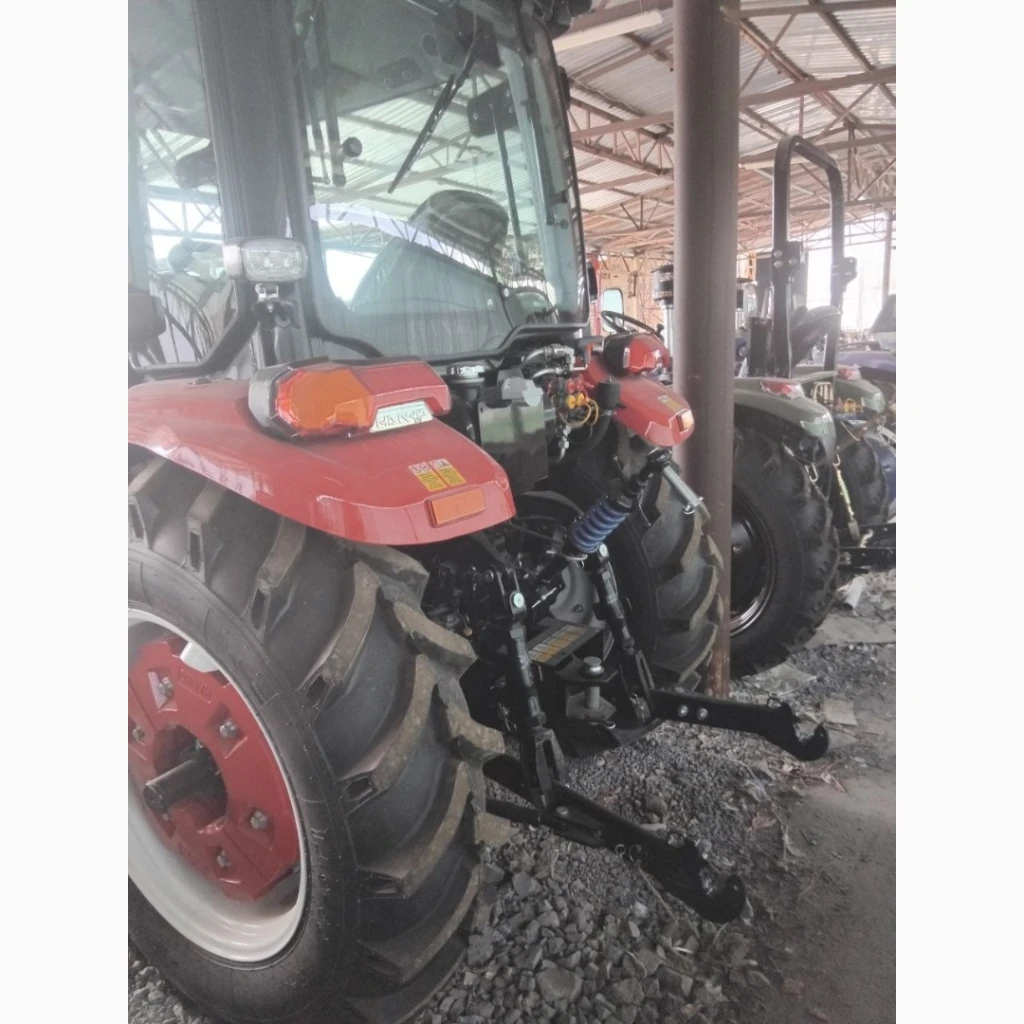

Rear attachment system - Universal, 3-point, 2 hydraulic cylinders
The maximum load of the hinged mech-mu, kg – 1610
The volume of the oil tank of the hydraulic system, l - 24
Hydraulic outputs for connecting attachments - 4 (2 pressure/drain, 2 drain) with quick-release couplings, control from the main hydraulic distributor
Air conditioning, heating, compressor
Hanwo tractor 904(//tractor-service.com)
Volume - 3470 cm turbo - 90 hp. 4C6-100M22 Quanchai engine (now they started to be installed on Lovol) Separate oil pans on hydraulics and gearbox
Tank - 80+60
The gear shifting formula is (4+3)-(4+3)
Lowered - 3 gears + neutral
The reverse is
Clutch - Single-function, double-disc, permanently closed type
The size of the fronttires - 9.5-24
The size of the rear tires is 14.9-30
Wheel base, mm - 2120
