Cultivator interrow interrow Grand Max ROW CONTROL Fold Ferti KRN-5, 6 with system, Zaporizhia region.

Cultivator inter-row pro-row Grand Max ROW CONTROL Fold Ferti KRN-5,6 with introduction of KAS and ZhKP

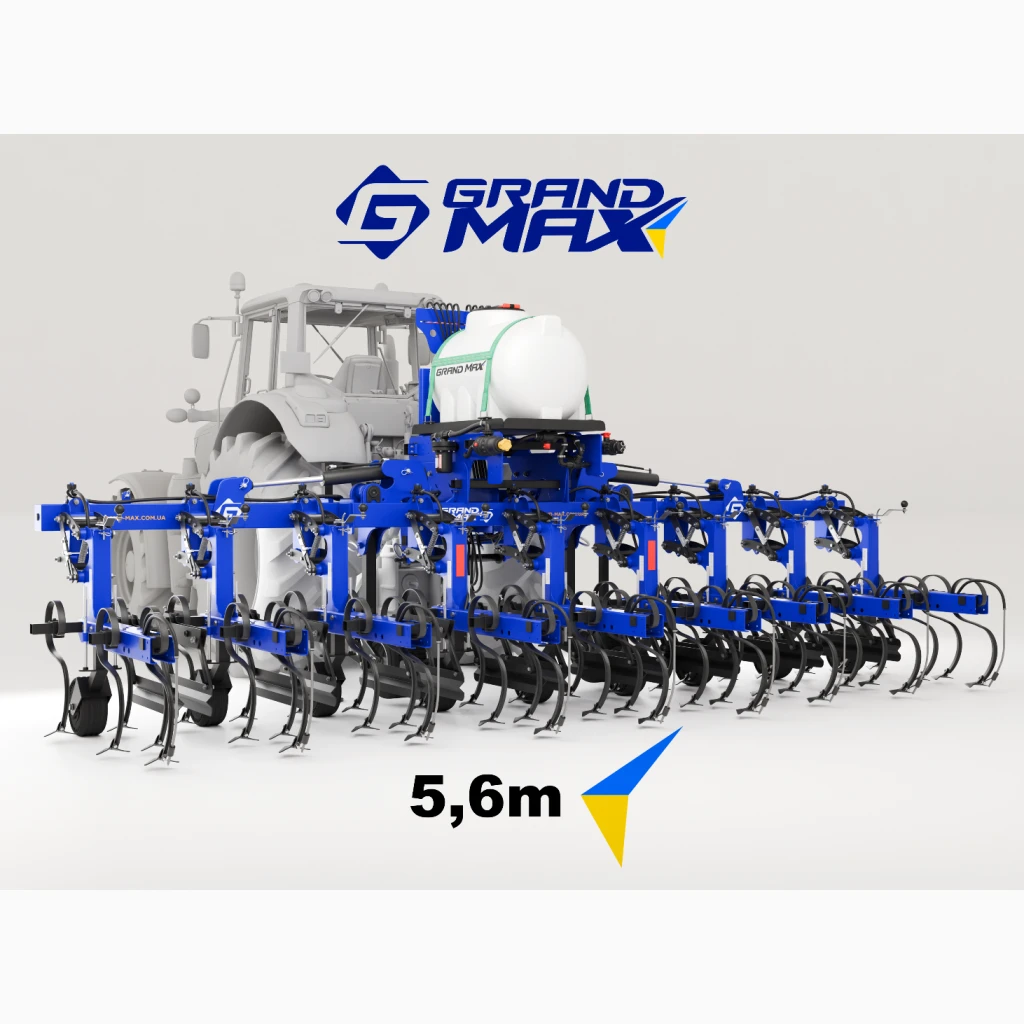

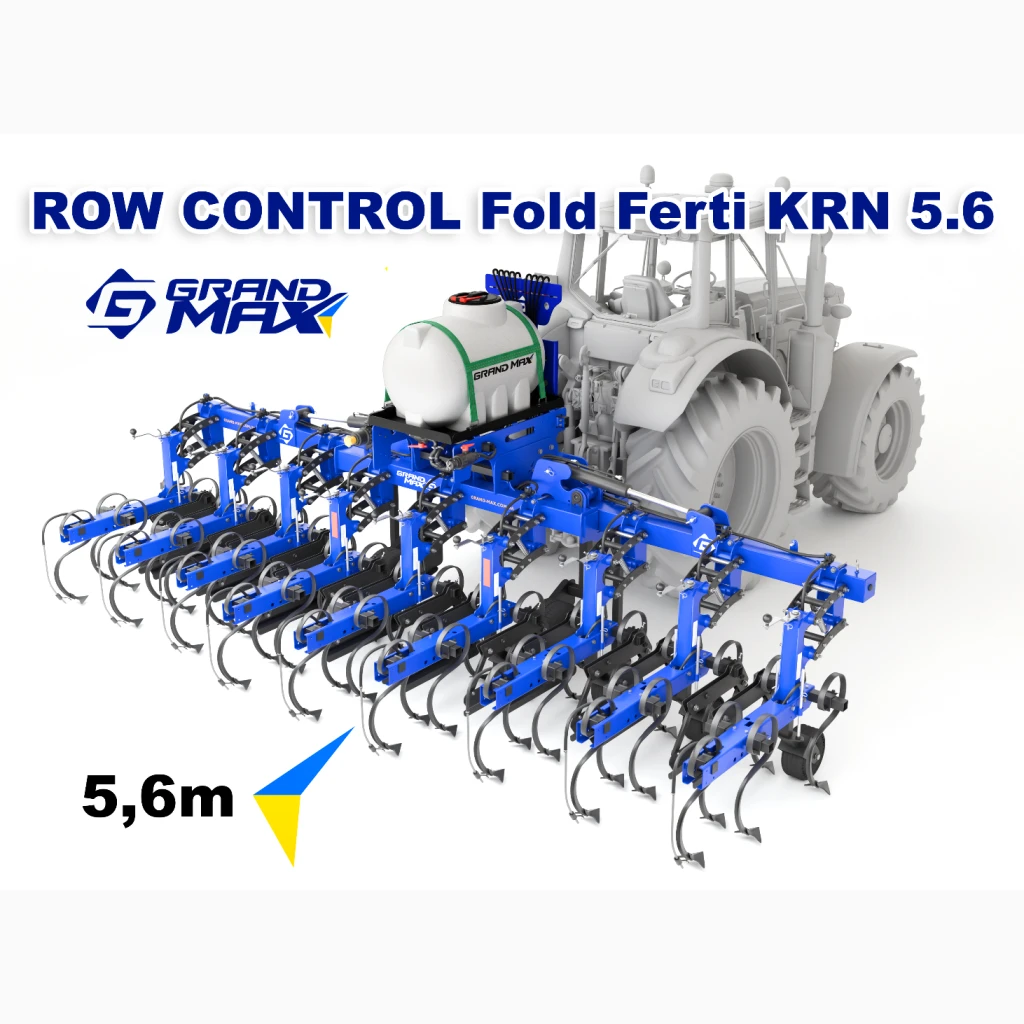

We offer a modern inter-row cultivator Grand Max ROW CONTROL Fold Ferti KRN-5,6, equipped with an integrated liquid fertilizer application system. The unit combines several technological operations at once: inter-row tillage, mechanical destruction of weeds, loosening and local introduction of KAS or ZhKP directly into the root zone of plants.

Thanks to the combination of several operations in one pass, the cultivator allows you to significantly reduce the costs of cultivating fields, reduce soil compaction and increase the efficiency of fertilizer use.

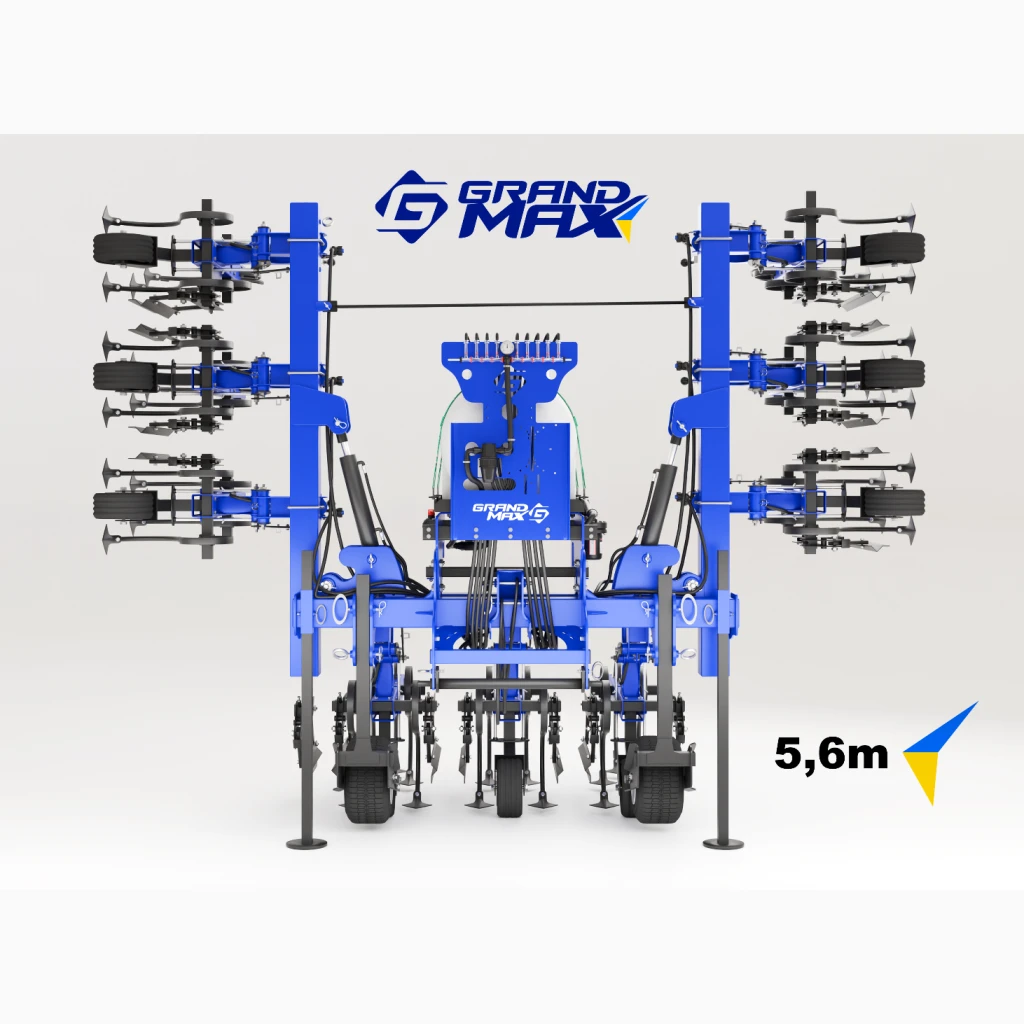

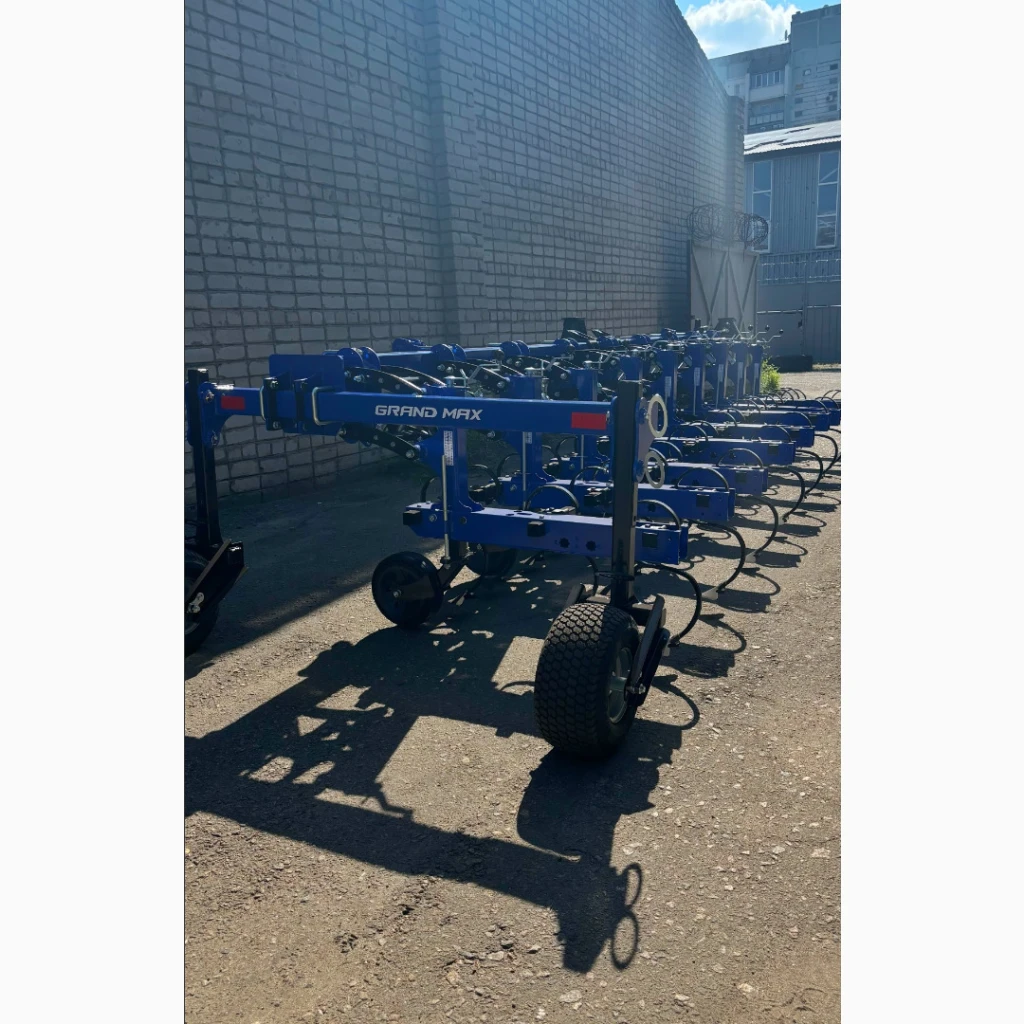

Folding frame for convenient transportation.

One of the main advantages of the model is the complex construction of the frame. In the transport position, the unit has compact dimensions, which greatly simplifies transportation between fields and public roads.

Advantages of a folding frame:

convenient transportation;
no need for escort;
saving time when moving;
reducing the risk of equipment damage;
quick transfer to working position;
high rigidity of the structure during operation.

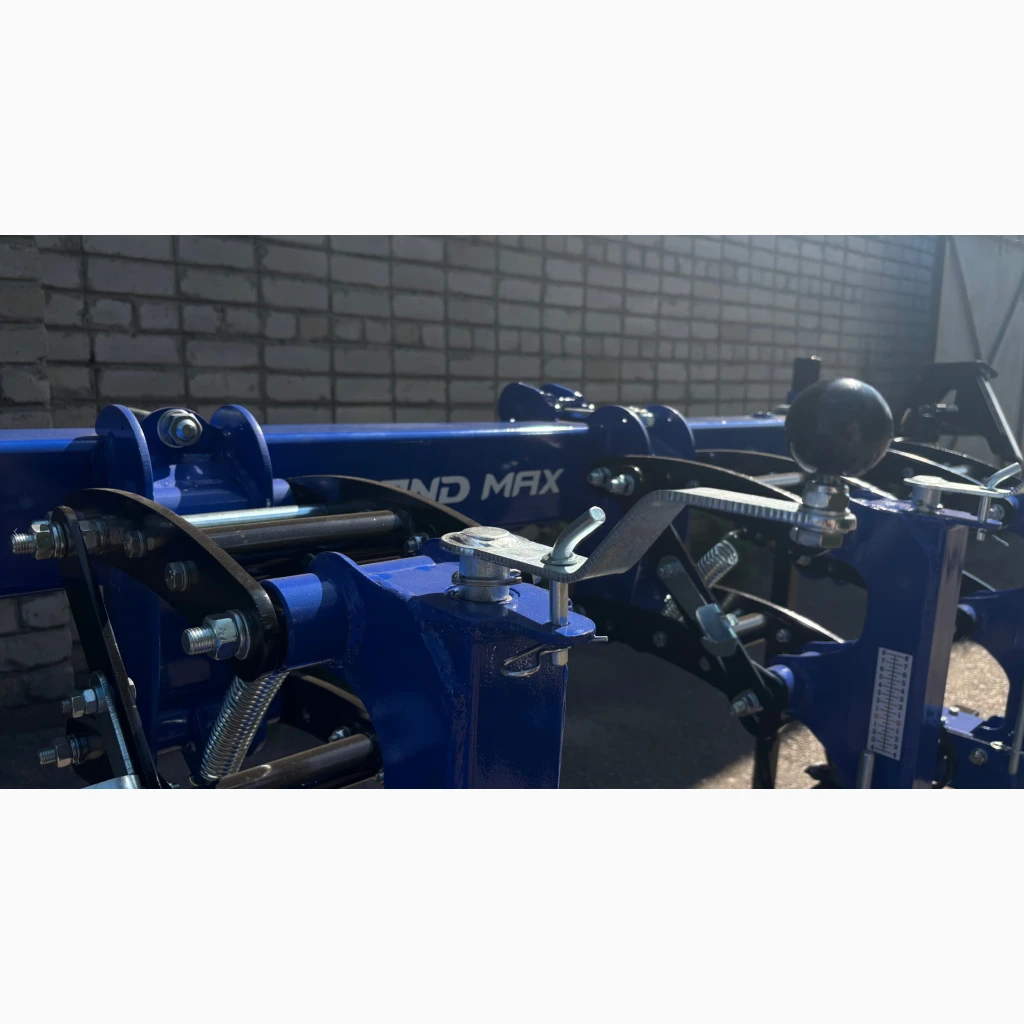

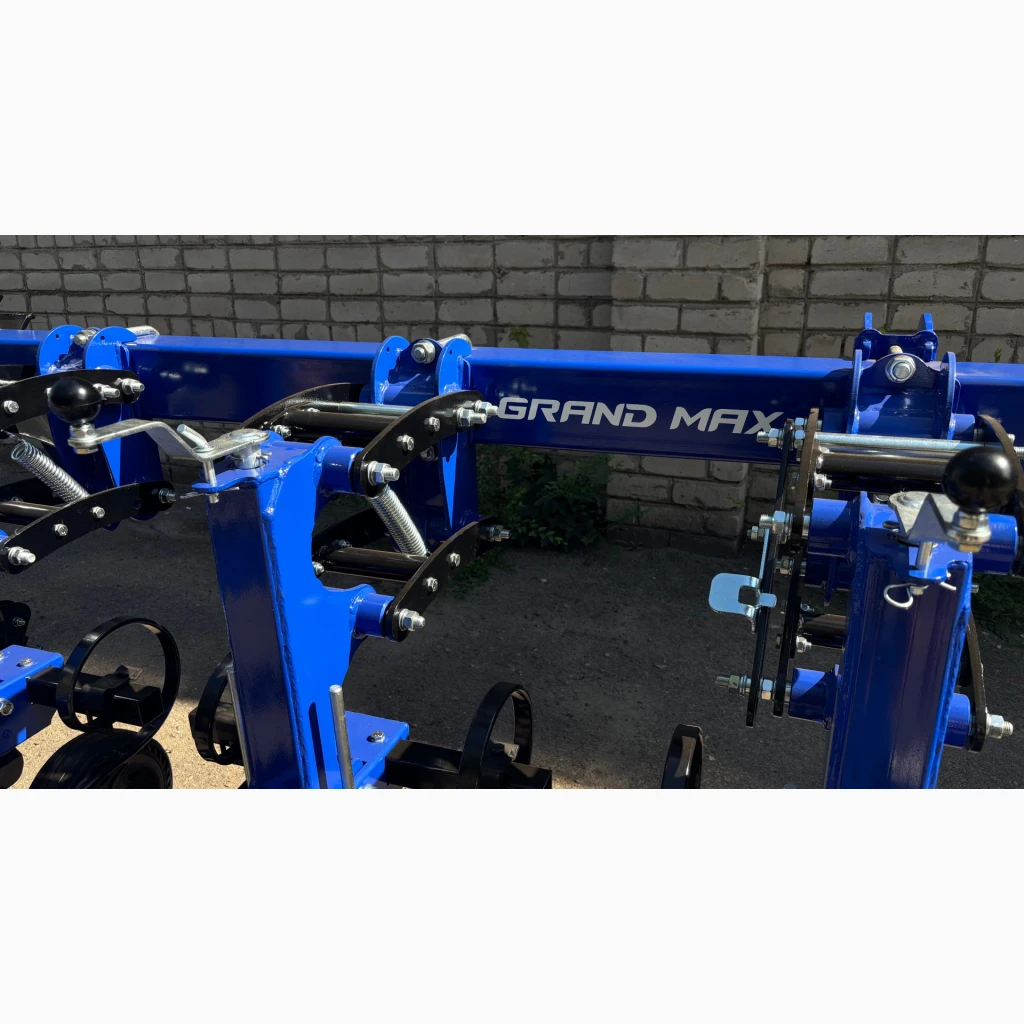

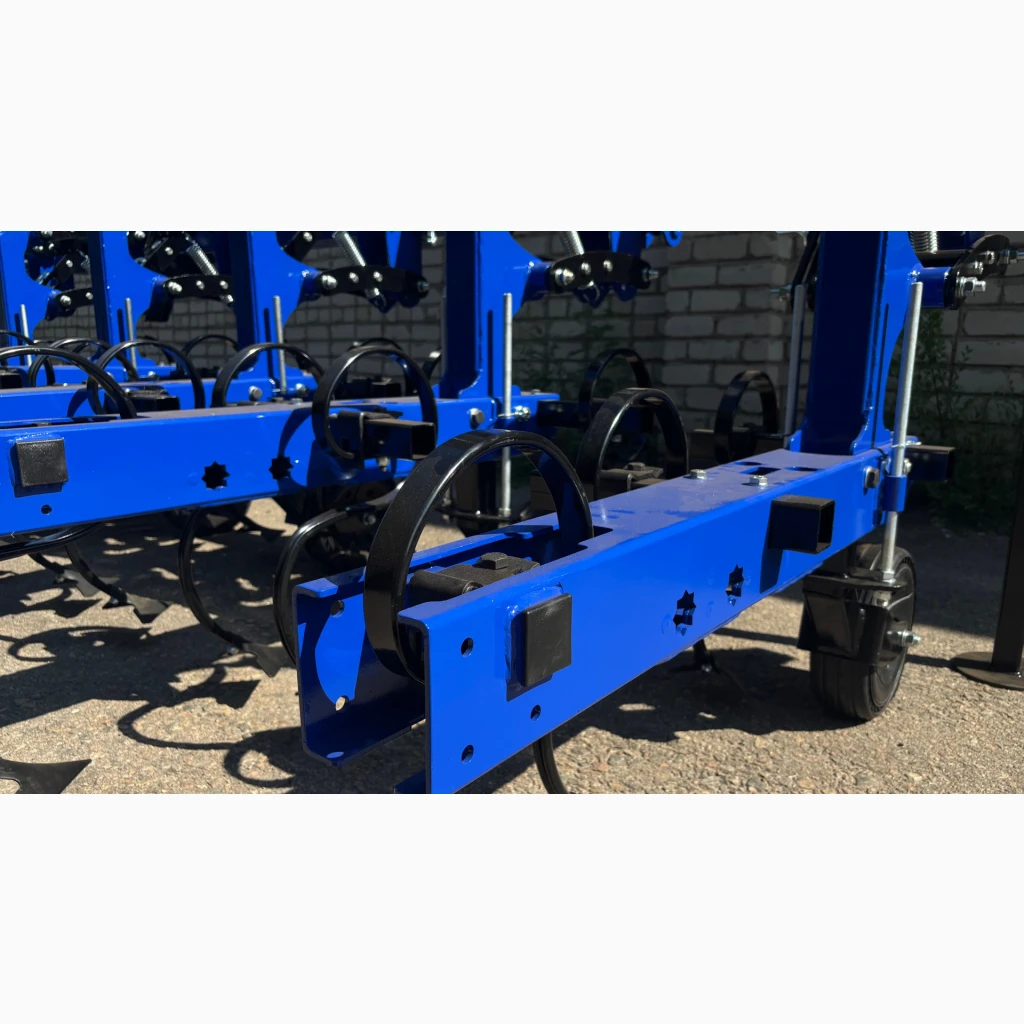

The reinforced frame is made of a profile beam 140×140×8 mm, which guarantees durability and reliability even with intensive use.

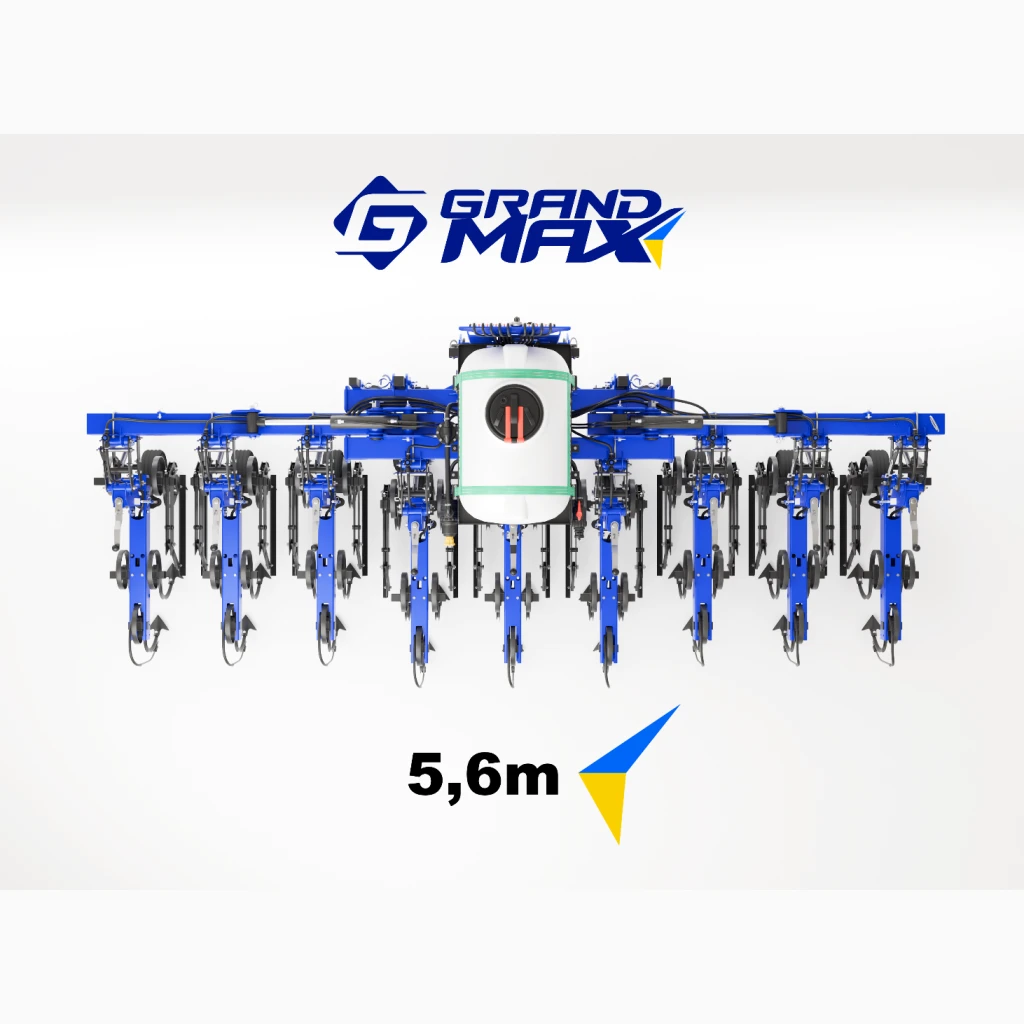

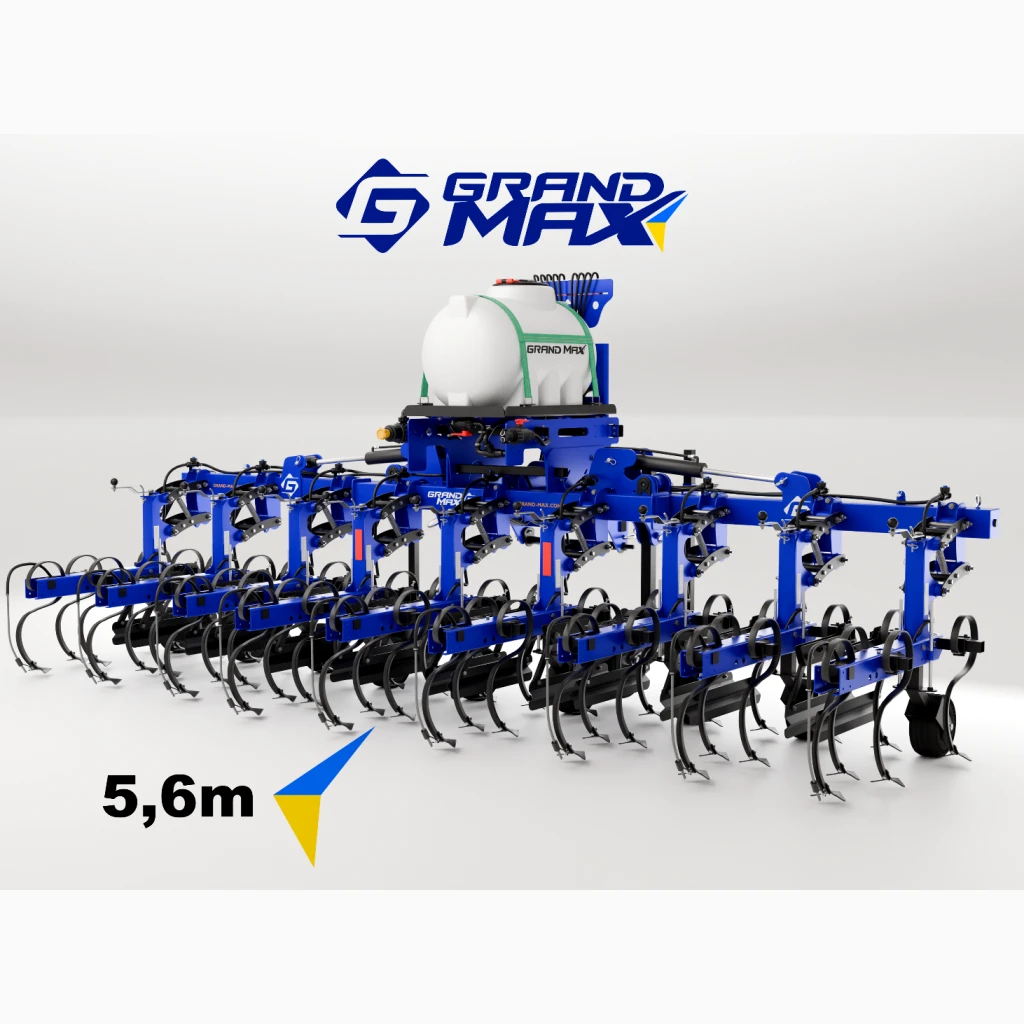

Ferti liquid fertilizer application system

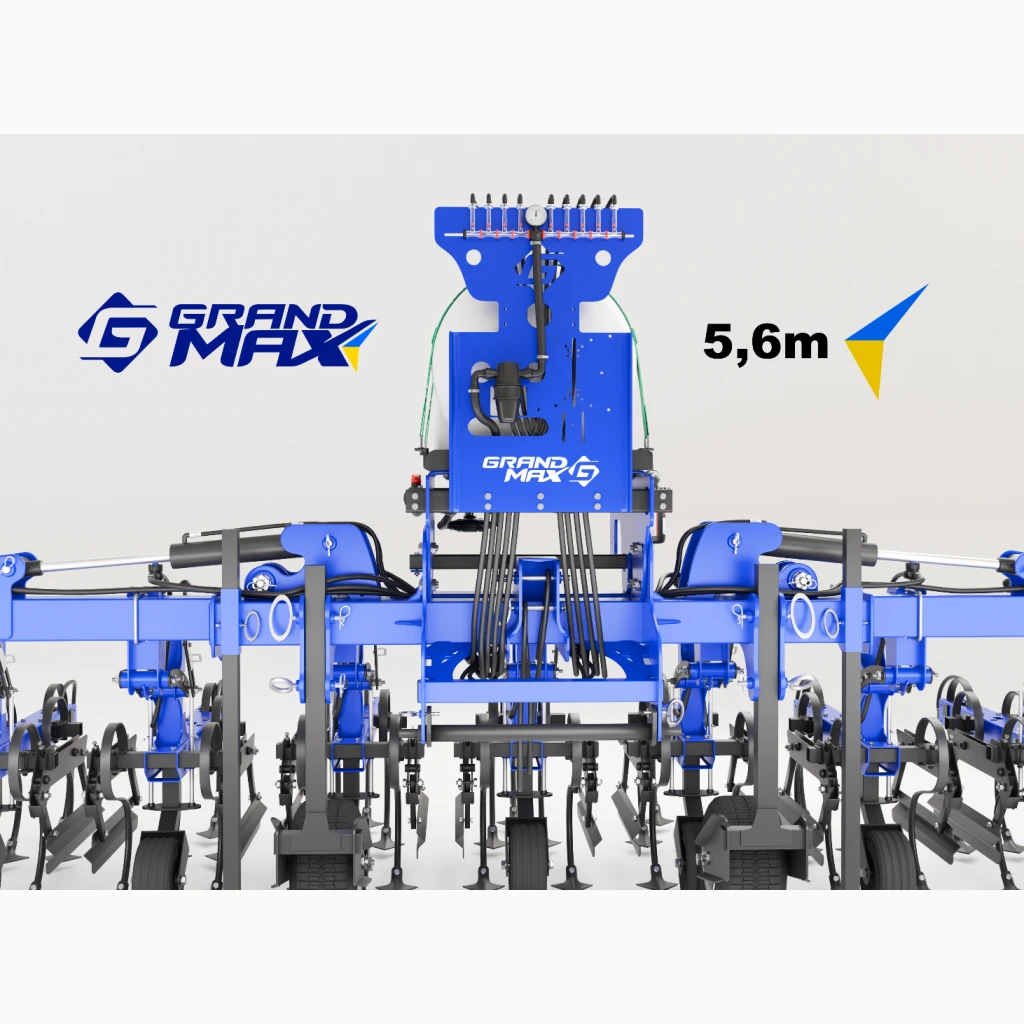

The cultivator is equipped with a built-in system for applying KAS and ZhKP, which is mounted directly on the frame of the unit. This allows you to perform inter-row cultivation and crop feeding at the same time.

The main advantages of the system:

local application of fertilizers in the root zone;
increasing the rate of assimilation of nutrients;
saving fertilizers;
reduction of the number of passes of equipment on the field;
reduction of fuel costs;
increasing the yield of agricultural crops.

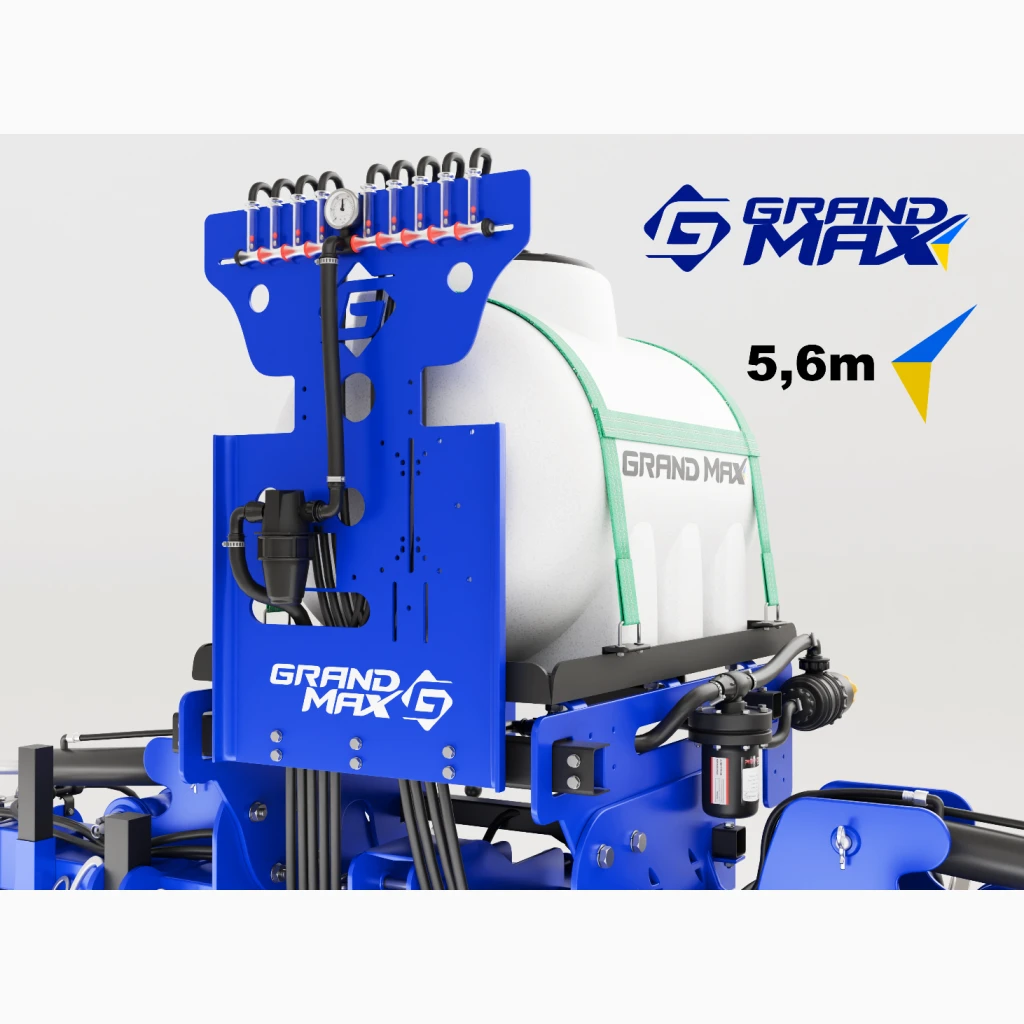

The system is equipped with a polyethylene tank with a volume of 500 liters, which is resistant to the aggressive effects of fertilizers and temperature changes.

A high-qualitydiaphragm pump Remco (USA) with a capacity of up to 20 l/min and a working pressure of up to 10 bar is used to supply the working solution.

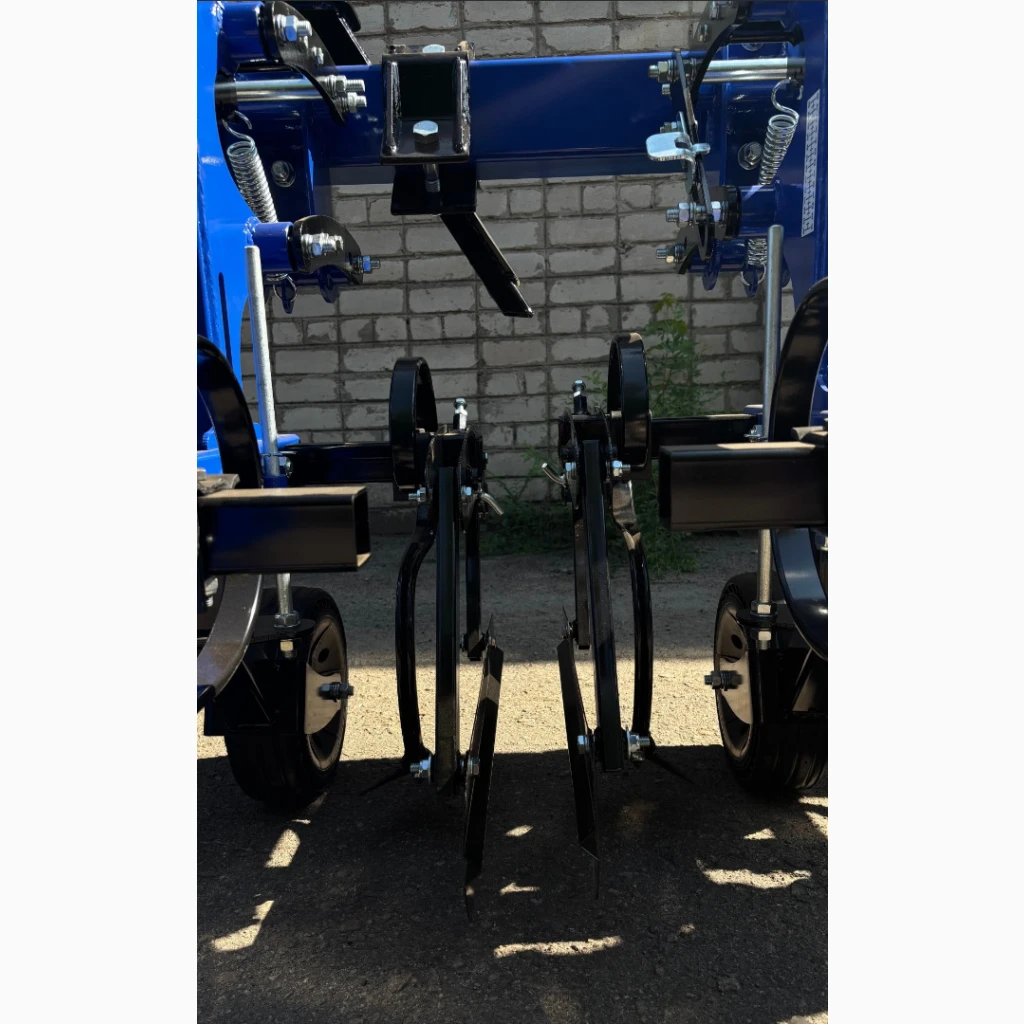

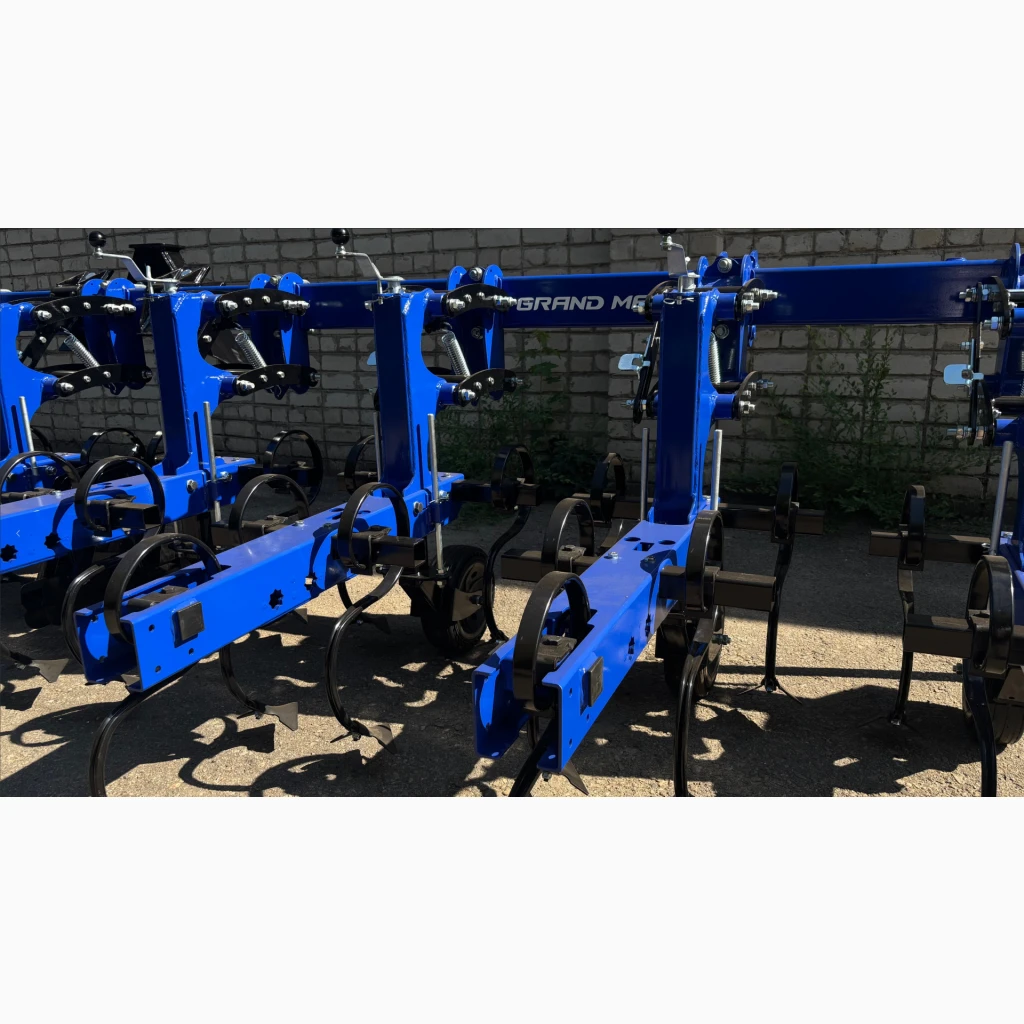

Quality working bodies

The cultivator is equipped with proven working bodies of European production.

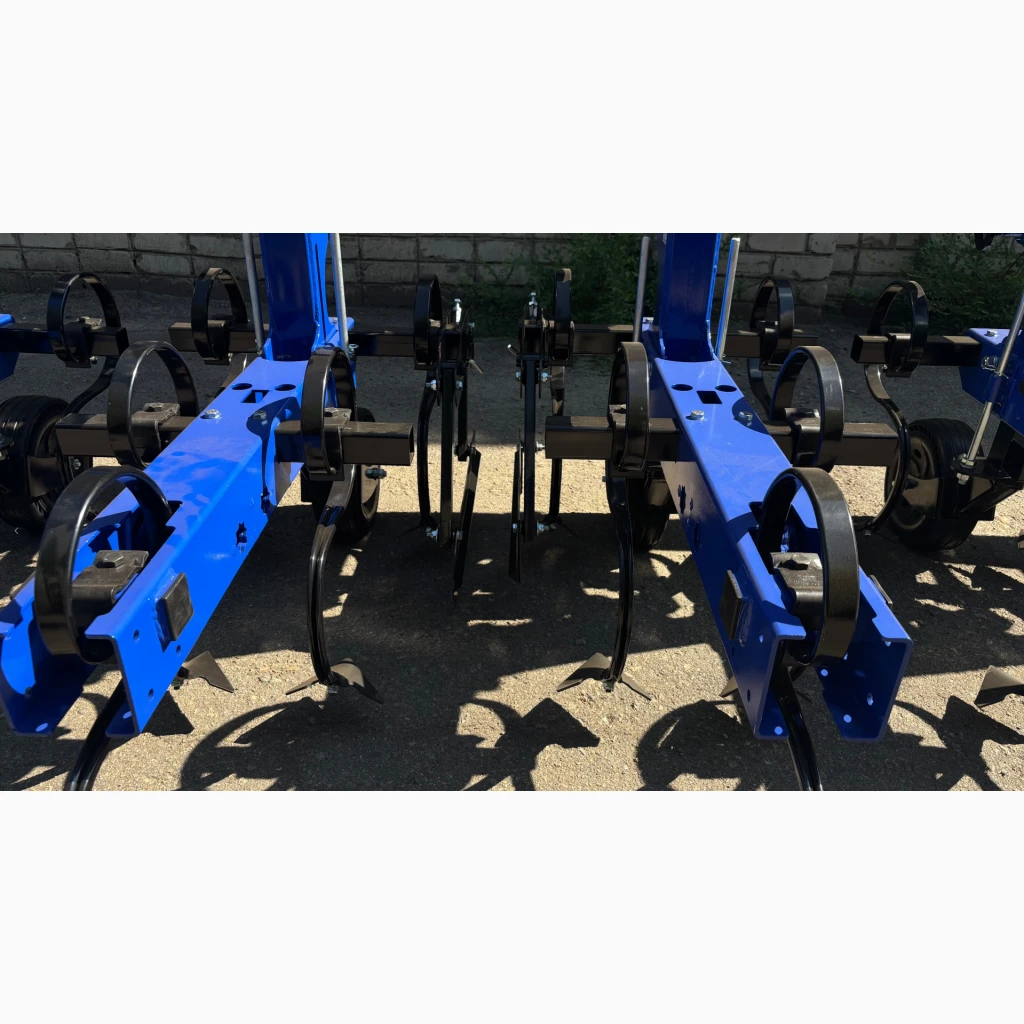

The package includes:

racks Bianchi (Italy);
S-shaped spring struts 32×10 mm;
arrow feet 150 mm wide;
parallelogram suspension of sections.

Thanks to this construction, it is ensured:

quality cutting of weeds;
uniform loosening of the soil;
stable processing depth;
exact copying of the relief of the field;
minimal damage to cultivated plants.
Maximum efficiency of inter-row processing

Grand Max ROW CONTROL Fold FertiKRN-5,6 allows to effectively carry out inter-row cultivation at various stages of plant development.

Recommended terms of use:

the first processing — 5–10 days after the emergence of seedlings;
the second processing — in the phase of 3–5 leaves;
the third treatment is to close the rows.(//tractor-service.com)

Depth adjustment allows you to adapt the unit to different types of soil and working conditions.

Technical characteristics

Model: Grand Max ROW CONTROL Fold Ferti KRN-5,6

Type: inter-row inter-row cultivator with fertilization

Gripping width: 5.6 m

Number of lines: 8

Number of sections: 9

Number of working bodies: 41

Spacing: 45–75 cm

Processing depth: from 3 to 8 cm

Working speed: 8–12 km/h

Weight: 1280 kg

Diameter of support wheels: 450 mm

Tractor power: from 80 hp.

Tank volume for KAS: 500 l

Production: Ukraine

What cultures is it suitable for?

The cultivator is successfully used for cultivation:

of corn;
sunflower;
soybeans;
rape;
of sugar beet;
vegetable crops.
Advantages of Grand Max ROW CONTROL Fold Ferti KRN-5,6

✔ inter-row cultivation and application of fertilizers in one pass

✔ fuel savings up to 30%

✔ reduction of soil compaction

✔ accurate entry of the CAS and the housing stock.

✔ effective destruction of weeds

✔ increase in productivity

✔ reliable folding frame

✔ high-quality European components

✔ minimal maintenance costs

✔ high work productivity

Grand Max ROW CONTROL Fold Ferti KRN-5,6 is a modern inter-row cultivator with a fertilizer application system, created for farms that seek to increase the efficiency of field work, reduce production costs and obtain consistently high yields.
