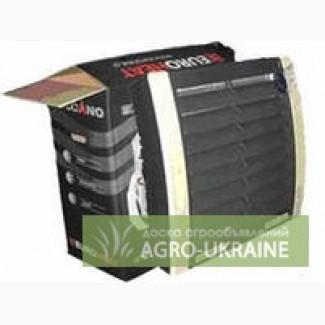

Volcano water heaters, Volyn region.

Volcano VR 1 water heaters are intended for indoor air heating and are successfully used in industrial facilities, supermarkets, shopping centers, warehouses of any structure.

The heating process with VOLCANO VR 1 fan heaters is based on the principle of recirculation, when a powerful flow of warm air causes convective movement of air masses and active heat exchange. In the warm season, installed in rooms without air cooling systems, VOLCANO VR 1 units cause forced movement of air masses, thereby increasing convective movement and cooling the air in places near working mechanisms.

Volcano VR 1 heats the interior space of the premises, the advantages of its use include the use of high-quality component brands of well-known companies, modern design, unique technical characteristics, ease of installation and economical maintenance.

Parameters
Unit
VOLCANO VR2

Number of heater rows
-
2

Maximum air flow
[m3/h]
5200

Range of heating power
kW
30-60

Increase in air temperature*
°C
40

The maximum temperature of the coolant
°C
130

Maximum working pressure
MPa
1.6

The maximum range of a jet of warm air
m
25

Volume of water in the heater(//tractor-service.com)
dm3
3.1

The diameter of the connecting pipes
'
3\4

Mass together with water
kg
32

Power supply voltage
V/Hz
2 x 230/50

Engine power
kW
0.61

Nominal current
A
2.8

Engine speed
rpm
1310

Engine protection class
-
54

According to its design, the Volcano VR 1 fan heater consists of:
a heat exchanger of a special design, which, despite its small dimensions, is capable of providing high heat output,
a low-noise fan that creates a noise level of 30 dB at low speeds (comparable to a reading room), at maximum power - 51 dB,
plastic body, the heat resistance of which allows the use of a coolant heated to 130 degrees.

Installed in the water heater VOLCANO VR 1: servo drive, powered by 220-230 V; connecting the pipeline with the coolant through a two-position valve with a ¾ thread, allowing a thermostat that automatically regulates the temperature of air heating; a programmable temperature controller that allows you to use both factory settings and make individual settings; the regulator providing five modes of operation guarantee reliability and trouble-free operation and convenience in servicing the equipment. pressure drop up to 100 kPa.

The installation is carried out by fastening the mounting console in the place specified by you and installing the heat exchanger on it with the help of mounting bushings.
