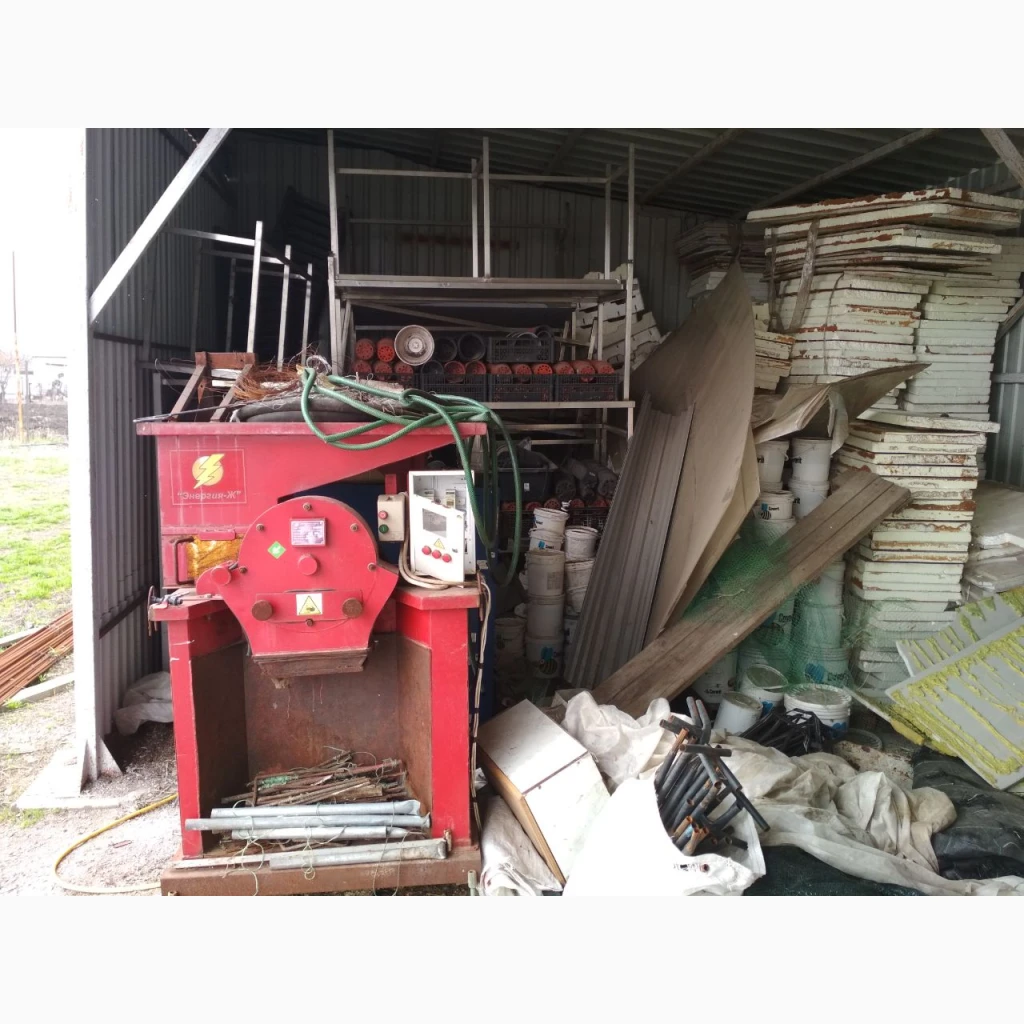

Grain crusher DKU K-7.5M mill, Dnepropetrovsk region.

Grain crusher DKU K-7.5M Energy-Zh, used for repair, restoration, worked, idle

7.5 kW 380 V

Energiya-Z Grain crusher of DKU K-7.5M mills is intended for

for grinding grain crops, cobs, hay and straw

Technical data: -

H*138 cm. W*110 cm. D*90 cm. -Weight 290 kg

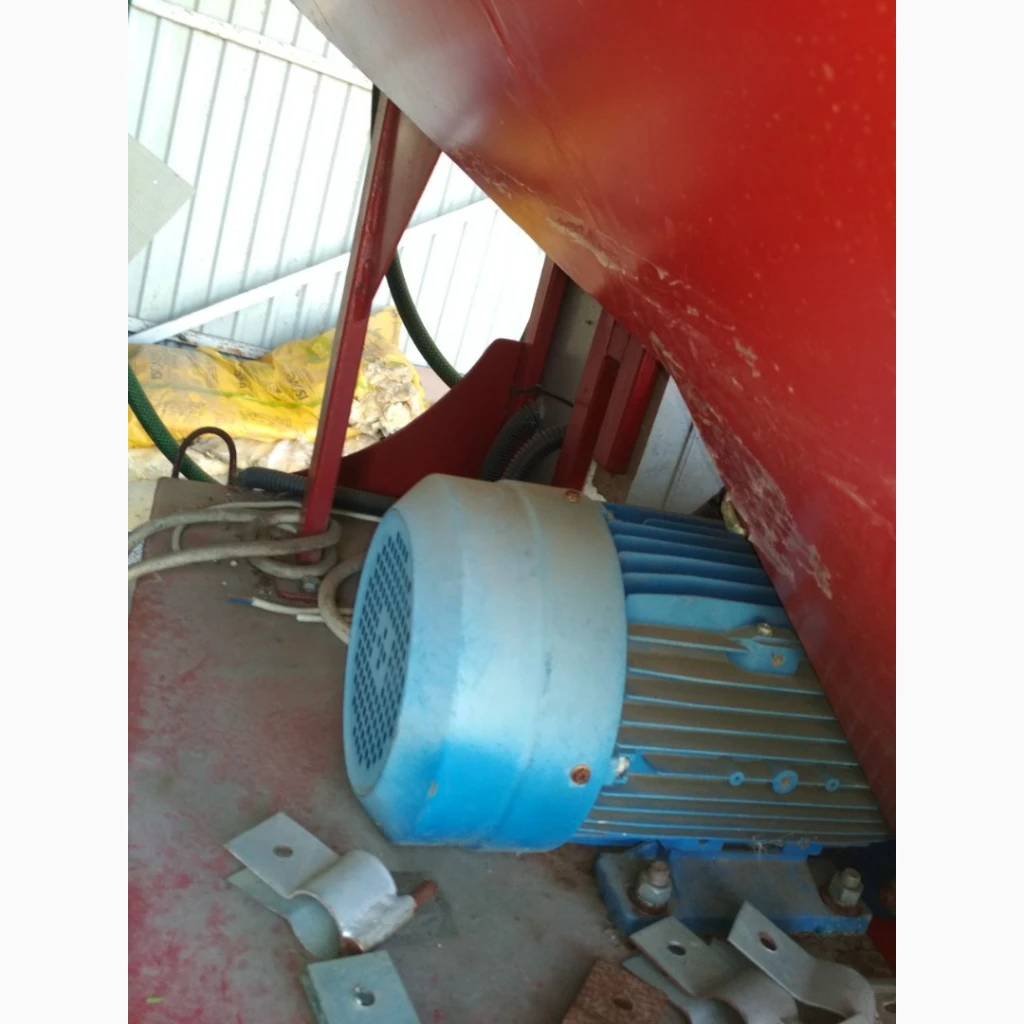

Power 7.5 kW (industrial electric motor) - Power supply 380V

- thermal protection against electric motor overload

- short circuit protection

- an electric motor load control device up to 15 A is installed.

- 3-phase break monitoring sensors

- Productivity from 800 to 1400 kg/hour of grain (fraction of grain 0.4 mm, regulated by the sieve size)

-Type: hammer (bull) 36 pieces, heat-treated knife steel 65G.

- capacity for grain 60 kg, 176

-Дополнительные возможности !!! (//tractor-service.com)

Grinding cabbage - 1 bag 5 min.

1 bag 3.5 min Straws

1 bag 4 min of hay

Description

The DKU K-7.5M grain crusher is intended for grinding grain crops, cobs, hay and straw

Hammer-type grain crusher, equipped with a working drum Diameter 450 mm.
Inside the drum there is an impeller with hammers. Hammers made of special steel 65-G, heat-treated.
The grain grinding fraction is regulated by the diameter of the holes in the sieve.
The grain crusher is equipped with a drum for 1 bag, but it is also possible for 2 bags with a handle for adjusting from one bag to another, which is very convenient for uninterrupted work. While one bag is being filled, the other can be removed and replaced with an empty one.

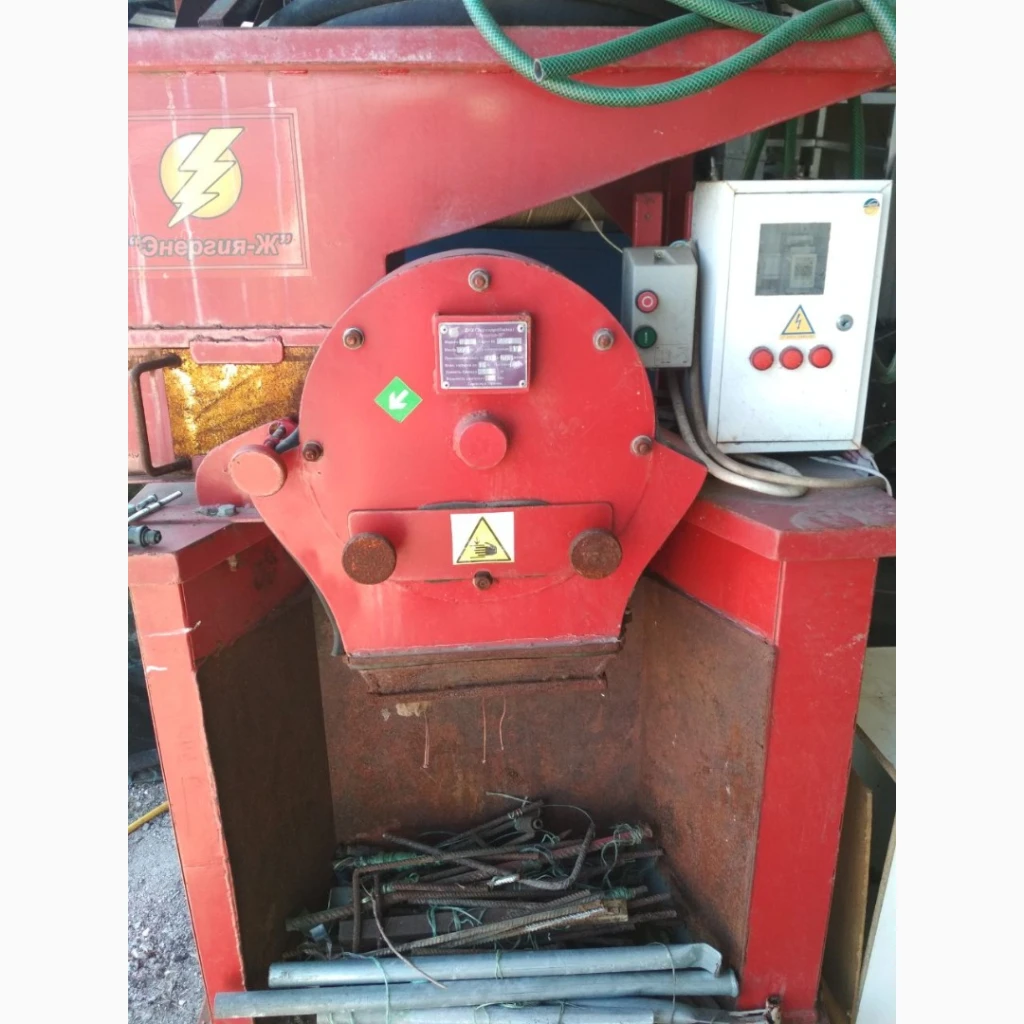

There is a hatch on the front of the crusher. If the grain crusher is overloaded and stops, we turn off the crusher and open the hatch for quick removal of grain residues fromgrain crusher.
The K-7.5M is made of a strong one-piece body for maximum strength, stability and minimal vibration.
The loadinghopper of the grain crusher is made of sheet metal with a thickness of 2 mm. and with a capacity of 60 kg, more can be ordered. Inlet in working condition 170*70 mm.

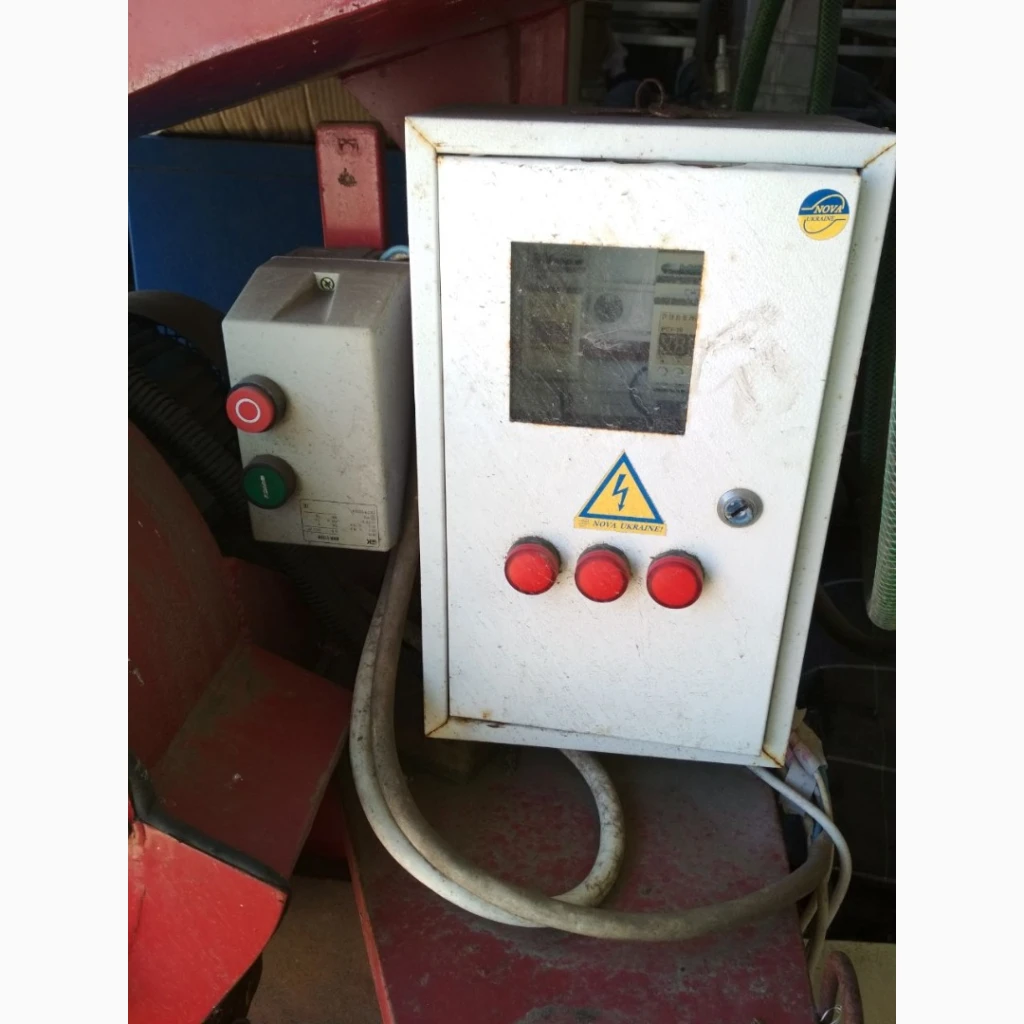

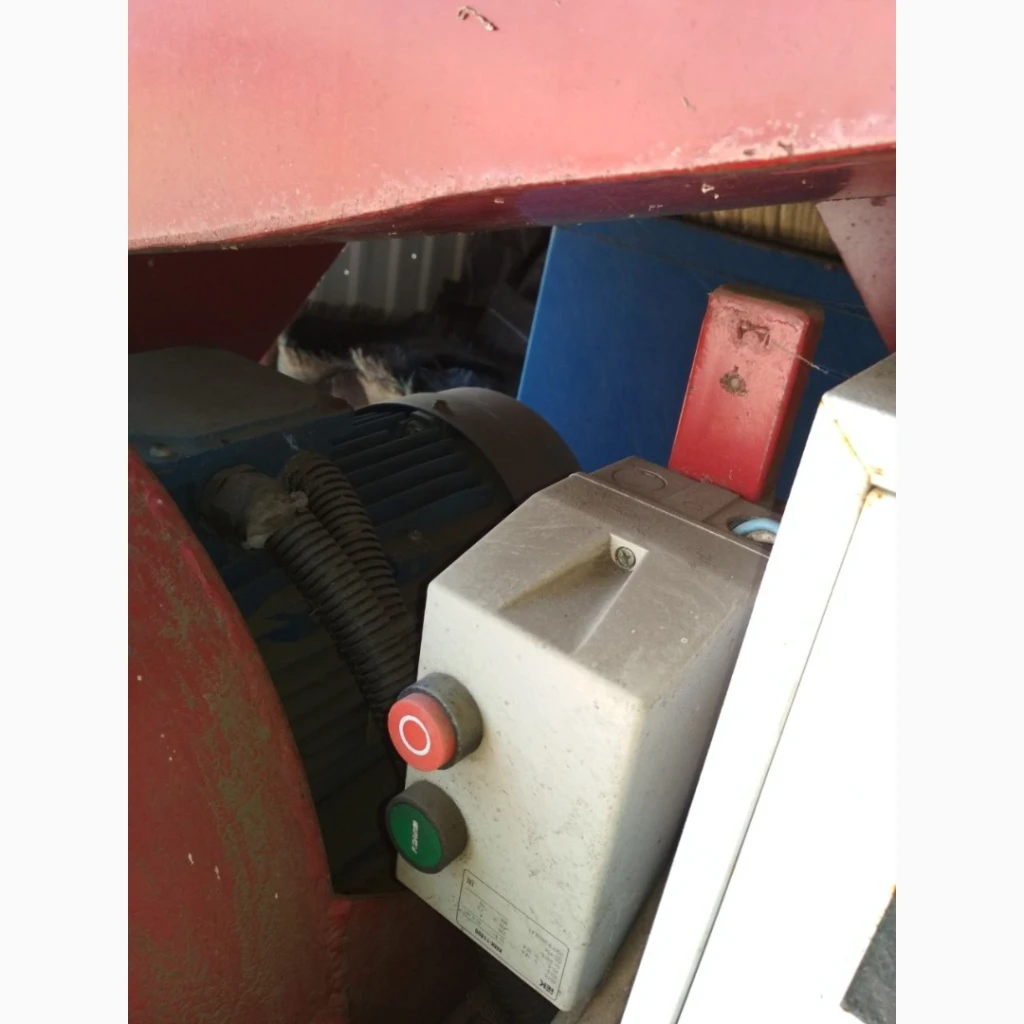

Let's write a few words about electrical equipment. It consists of: a connector (plug and socket), a metal box, a magnetic starter with a thermal relay and a button to start the electric motor, automatic, short-circuit protection. Ammeter for monitoring the electric motor load. Three control sensors for a break in 3 phases of the electric motor and the electric motor itself.
A few words about technical safety:
a) necessarily ground the grain crusher

b) do not open the hatch during operation.

c) carefully with hands in the receiving hopper near the knives

d) read in more detail in the operating instructions

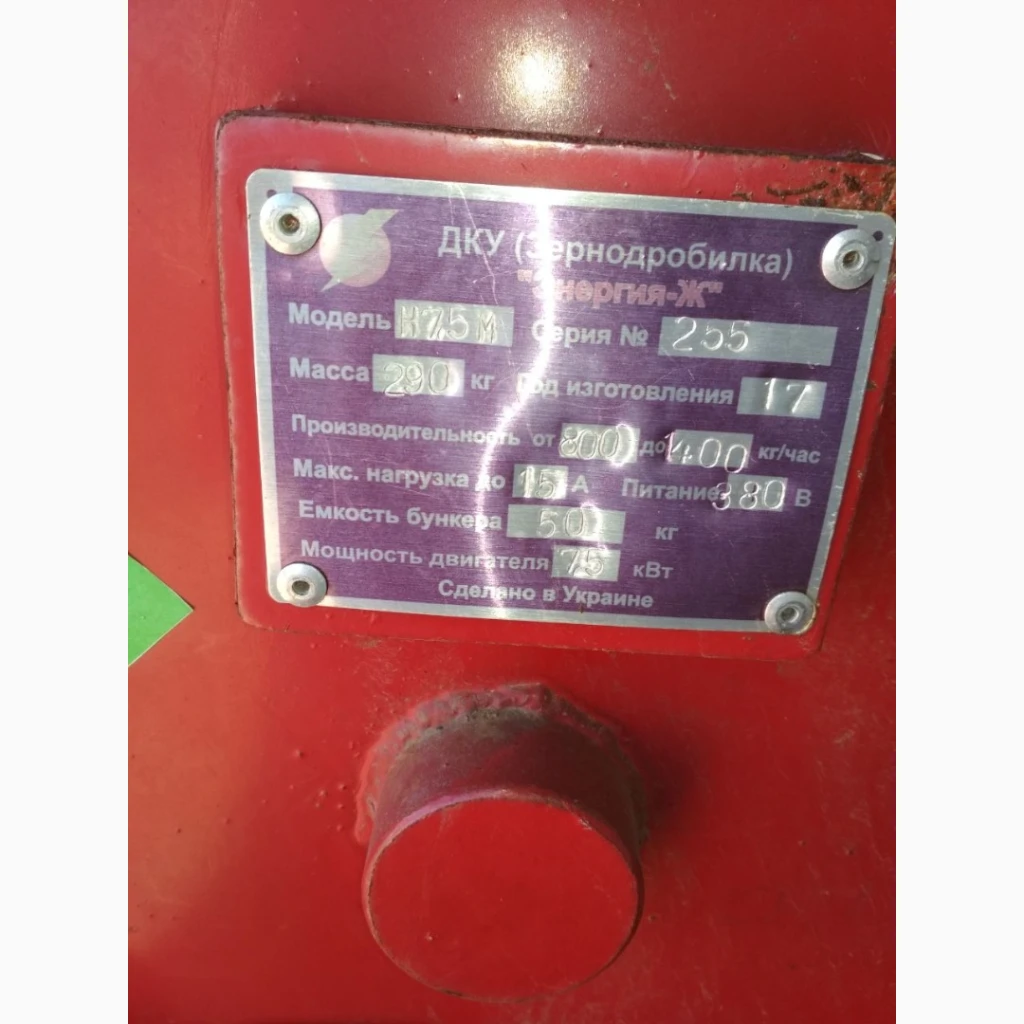

Preparation for work. Plug in the outlet, turn on the automatic machine, close the grain feed valve from the receiving hopper to the working drum, connect empty bags 2 or 1. Pourgrain into the receiving hopper. We make sure that the working drum is empty and turn on the start button. Slowly open the valve and look carefully at the load on the ammeter (the maximum load is indicated on the plate)
It is possible to send the grain crusher by New Post.
