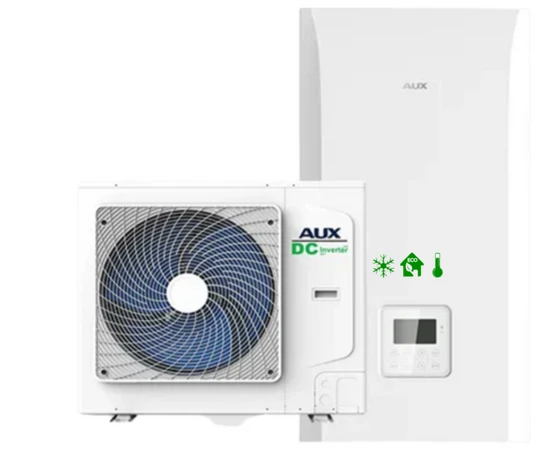

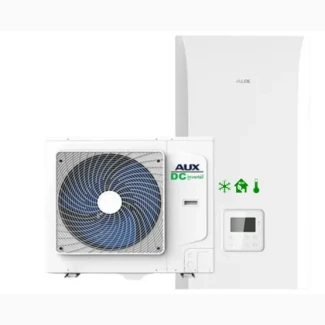

Inverter + EVI SPLIT heat pump, 10kW 230V, model - AXHP-EVIDC-10S, Kyiv

The principle of operation of the heat pump is based on the reverse thermodynamic cycle: the device absorbs heat from the environment and, with the help of freon, transfers it to the heating system to heat the coolant, usually water or an aqueous solution of glycol.

Heat pump Inverter + EVI SPLIT - AXHP-EVIDC-10S, AXIOMA energy is a modern solution for those who want maximum comfort and minimum costs for heating, cooling and hot water. The inverter technology with EVI ensures stable operation even in frosts down to -25°C, and the energy efficiency class A+++ allows you to significantly save on electricity. Panasonic compressor, Grundfos pump and R32 refrigerant guarantee reliability, durability and high performance. Intelligent Wi-Fi control makes the system convenient and fully adapted to your lifestyle. This is an investment that immediately increases home comfort and lowers monthly expenses.

Advantages of using Inverter + EVI SPLIT, 10kW 230V, model - AXHP-EVIDC-10S

• Refrigerant R32

• Energy efficiency (heating): A+++/A++

• Stable operation at -25°С

• Smart control via Wi-Fi

• Antifreeze function

• SG Ready technology: use of free electricity

• Heating + Cooling + DHW

• Simple and fast maintenance

• Compact design

• Fully inverter Panasonic DC compressor and fan motor

Application:

General characteristics

Model AXHP-EVIDC-10S
Power supply (V/Phase/Hz) 220-240/1/50
Test standard: EN14511 Ambient temperature 7°C / 6°C, inlet / outlet water: 30°C / 35°C
Heating Heating power (kW) min./max. 4.20-12.20
Power consumption (electric network, kW) min./max. 0.86-2.88
Nominal power (kW) 10.58
The coefficient of performance of the system in heating mode (COP) 4.62
Test standard: EN14511 Ambient temperature 7°C / 6°C, inlet / outlet water: 47°C / 55°C
Heating Heating power (kW) min./max. 3.85-11.20
Power consumption (electric network, kW) min./max. 1.13-3.75
Nominal power (kW) 9.28
The coefficient of performance of the system in heating mode (COP) 3.12
Test standard: EN14511 Ambient temperature 35°C / 24°C, inlet / outlet water: 12°C / 7°C
Cooling Cooling power (kW) 2.60-10.30
Power consumption from the network (kW) 0.91-3.65
Nominal power (kW) 8.54
System performance coefficient in cooling mode (EER) 3.01
Ambient temperature: 20°C / 15°C, water temperature from 15°C to 55°C
Hot water supply Water heating capacity (kW) 4.83-14.04
Power consumption from the network (kW) 0.99-3.32(//tractor-service.com)
Power nominal water heating (kW) 11.91
The coefficient of performance of the system in hot water supply mode (COP) 4.52
Test standard: EN14825
Energy efficiency class (water temperature 35℃) A+++
Energy efficiency class (water temperature 55°C) A++
Working range of ambient temperatures (heating) -25~35 °C
Outlet water temperature range (heating) 20~60 °C
Operating range of ambient temperature (cooling) 16~45 °C
Outlet water temperature range (cooling) 5~25 °C
Working range of ambient temperature (hot water supply) -25~45 °C
Outlet water temperature range (hot water supply) 20~55 °C

Outdoor unit

Model AXHP-EVIDC-10S
Refrigerant / Weight (kg) R32 / 1.9
Panasonic compressor
Maximum permissible pressure (MPa) 4.4
Power consumption (kW) 3.83
Maximum operating current (A) 17
Protection against electric shock 1
IP protection class IPX4
Sound pressure level (dBA) 52
Sound power level (dBA) 66
Dimensions (W×H×D), mm 1100×445×850
Dimensions in the package (W×H×D), mm 1160×565×1010
Net weight (kg) 92
Gross weight (kg) 102

Indoor unit

Model AXHP-EVIDC-10S
Grundfos pump
Expansion tank (l) 6
Electric heater (kW) 3
Power consumption (kW) 3.5
Maximum operating current (A) 15.6
Water pump connection G1″
Water pressure (kPa) 27
Water pressure min./max. (MPa) 0.1 / 0.3
Nominal water consumption (m³/h) 1.75
Sound pressure level (dBA) 35
Protection against electric shock 1
IP protection class IPX1
Dimensions (W×H×D), mm 495×800×280
Dimensions in the package (W×H×D), mm 560×920×355
Net weight (kg) 47
Gross weight (kg) 52
