Solar panel Inter Energy IE182x182/M620/72/МН 620W N-TYPE, Kyiv

Producer
Inter energy

Country of manufacture China
Panel type Monocrystalline
The material for making the module is pure silicon.
Frame material Fiberglass
Power 620 W
Current at maximum power 14.31 A
Voltage at maximum power 43.34 V
Short circuit current 14.88 A
No-load voltage 52.26 V
The number of elements is 144 pcs.
The minimum working temperature is -40 degrees.
The maximum working temperature is 85 degrees.
Degree of protection IP 68
Efficiency, not less than 23.99%
The warranty period is 144 months.
Overall dimensions
Weight 28 kg
Length 2279 mm
Width 1134 mm
Thickness 30 mm
Temperature coefficients
The temperature coefficient of the current is 0.046 %/° С
Temperature coefficient of voltage -0.26 %/° С
Temperature coefficient of power -0.31 %/° С

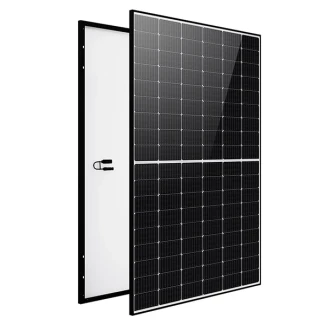

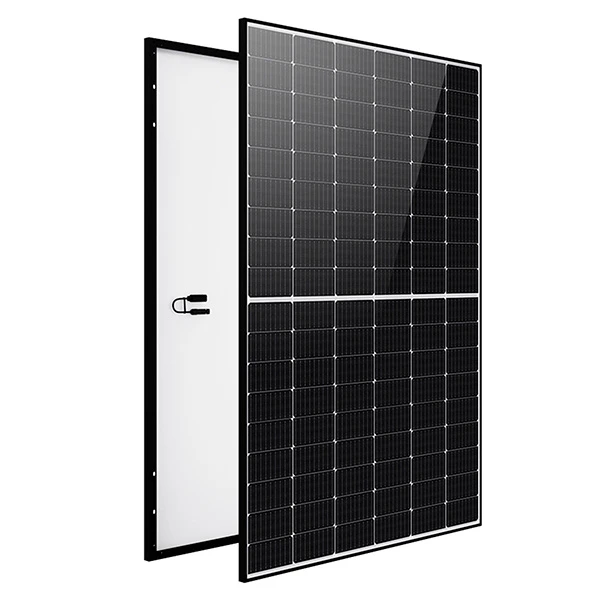

Monocrystalline solar panel Inter Energy IE182x182/M620/72/МН​​​​ 620W N-TYPE
The Inter Energy IE182x182/M620/72/МН​​​​ 620W N-TYPE solar panel is a high-performance module designed to maximize the use of solar energy using advanced technologies. With a high efficiency of 23.99%, reliable construction and durable materials, this panel is an ideal choice for commercial, industrial and residential applications.

Main technical characteristics of Inter Energy IE182x182/M620/72/МН​​​​ 620W N-TYPE

Rated power: 620 W.(//tractor-service.com)
Efficiency: up to 23.99% - one of the best in its class.
No load voltage (Voc): 52.26 V.
Maximum operating voltage (Vmp): 43.34 V.
Short circuit current (Isc): 14.88 A.
Maximum operating current (Imp): 14.31 A.
Dimensions: 2279 × 1134 × 30 mm.
Weight: 28 kg.
Cell type: monocrystalline N-type, size 182 * 182 mm.
Junction box: IP68 - the maximum level of protection againstdust and moisture.
Operating temperature: from -40°C to +85°C.
Maximum system voltage: 1500V.
Advantages of the solar panel Inter Energy IE182x182/M620/72/МН​​​​ 620W N-TYPE

Maximum efficiency:
Thanks to N-type monocrystalline cells and advanced Half-Cell technology, the panel achieves high performance even in low light conditions.
Minimum power degradation:
N-type cells provide minimal energy losses (LID and PID), which guarantees stable generation for a long time.
Durability and reliability:
High resistance to mechanical loads (up to 5400 Pa) allows the panel to be used in any climatic conditions - from extreme frost to scorching heat.
Energy efficiency in the heat:
Low thermal coefficient (-0.31%/°C) reduces power losses even at high temperatures, ensuring stable operation.
Modern design:
The thin and elegant design of the panel allows you to integrate it into any projects, while maintaining an aesthetic appearance.
Fields of application

Household systems: Private houses, cottages, dachas.
Commercial facilities: Office buildings,warehouses, shops.
Solar power plants: Large industrial installations for energy generation.
Inter Energy Solar Panel Warranties

12-year warranty on the quality of materials and production.
25 year linear performance guarantee (up to 87.4% of initial capacity after 25 years).
