Vibrating sieve and inspection table for raspberries, Poltava region.

We offer a complex of equipment for processing frozen raspberries, designed for calibration, sorting and product inspection.

1. Calibrator for raspberries (1500 × 1200 mm)
Working length: 1300 mm

Equipment width: 1000 mm

Equipped with a sieve (step of rods - 8 mm) to separate rot fromberries

Vibration motor with a frequency converter

Tray for safe transfer of the product to the inspection table

Materials in contact with the product — stainless steel AISI 304

Frame and supports — structural steel with painting.

Color: gray

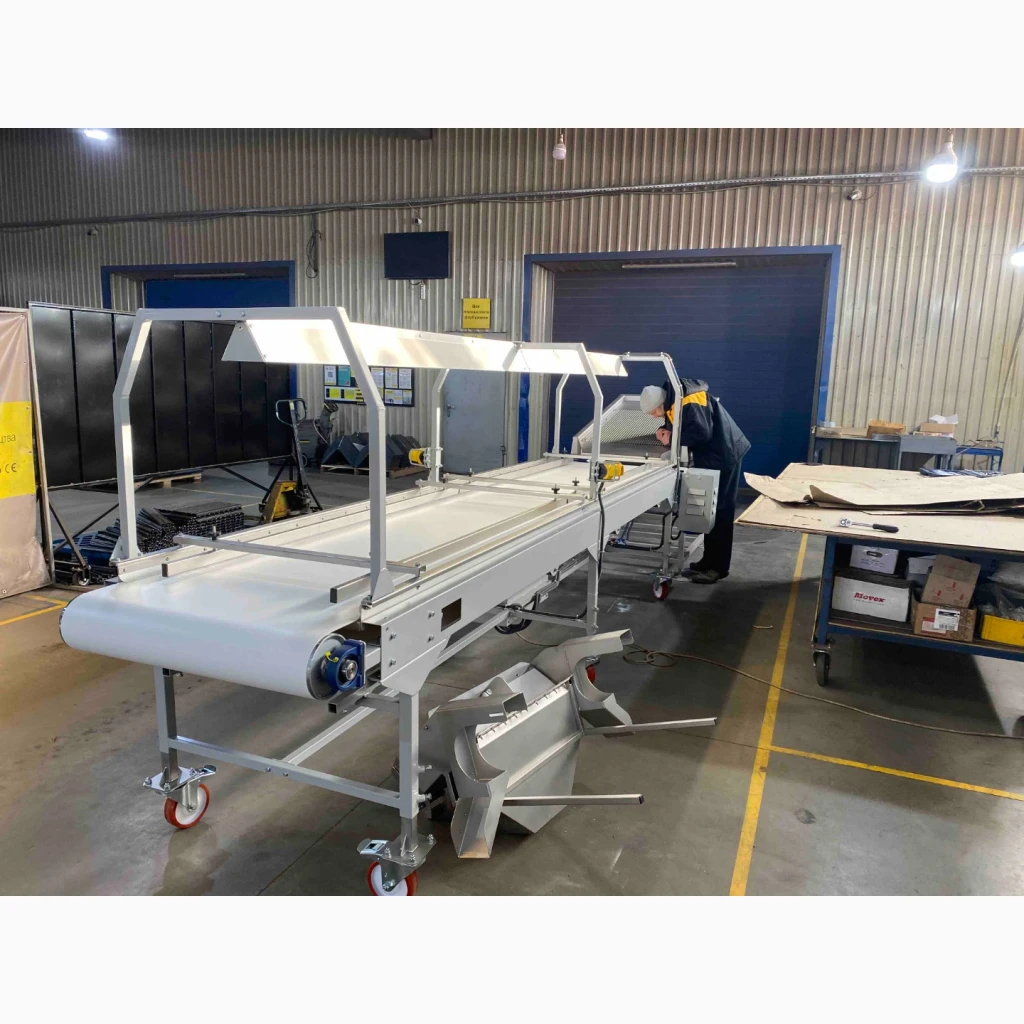

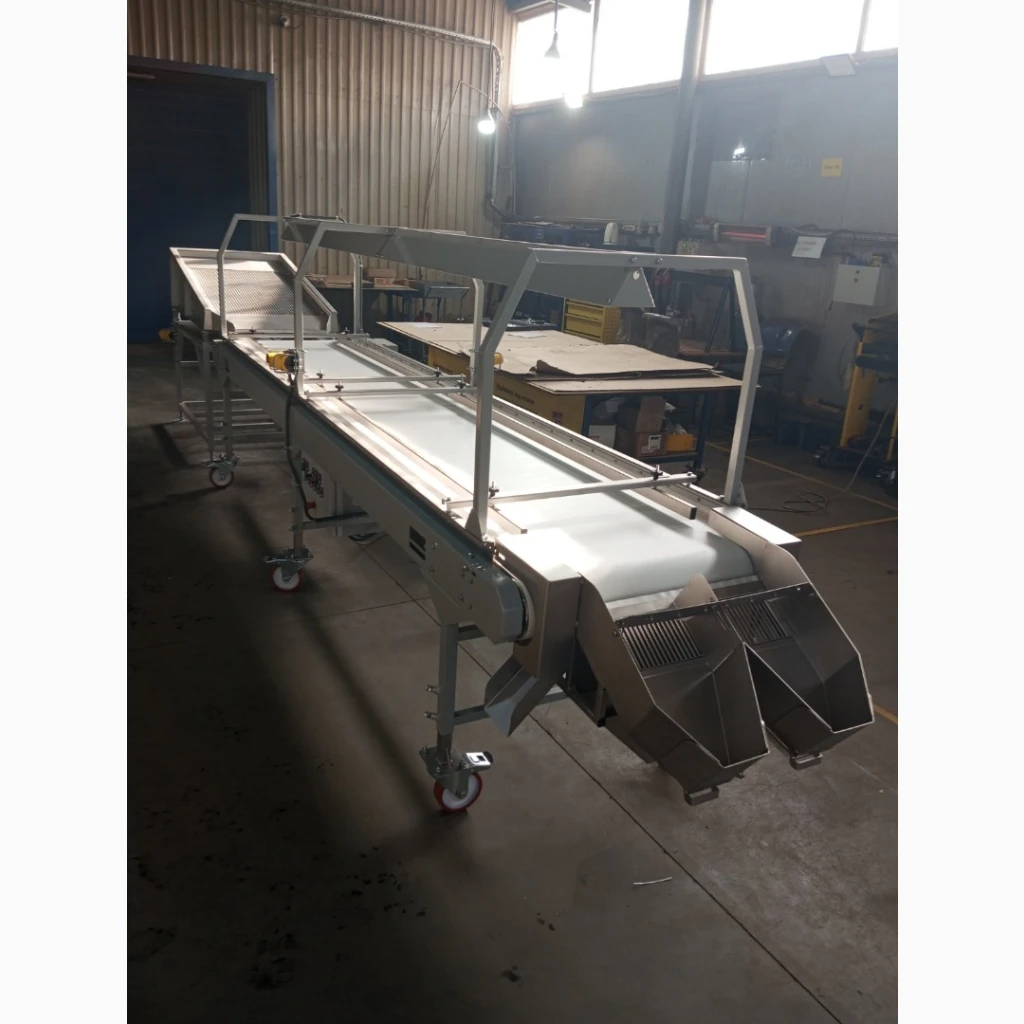

2. Inspection conveyor for raspberries
Purpose: raspberry sorting(//tractor-service.com)

Frame length: 4000 mm

Tape width: 800 mm

Loading/unloading height: 900 mm

Ribbon: white, food grade (PU)

Equipment: sides, lighting, flow dividers

Drive: gross

Bearings: ChM

Working speed: 0.2–0.3 m/s

Temperature regime: up to –10°C

Product: frozenraspberries

Material: AISI 304, frame — painted steel
