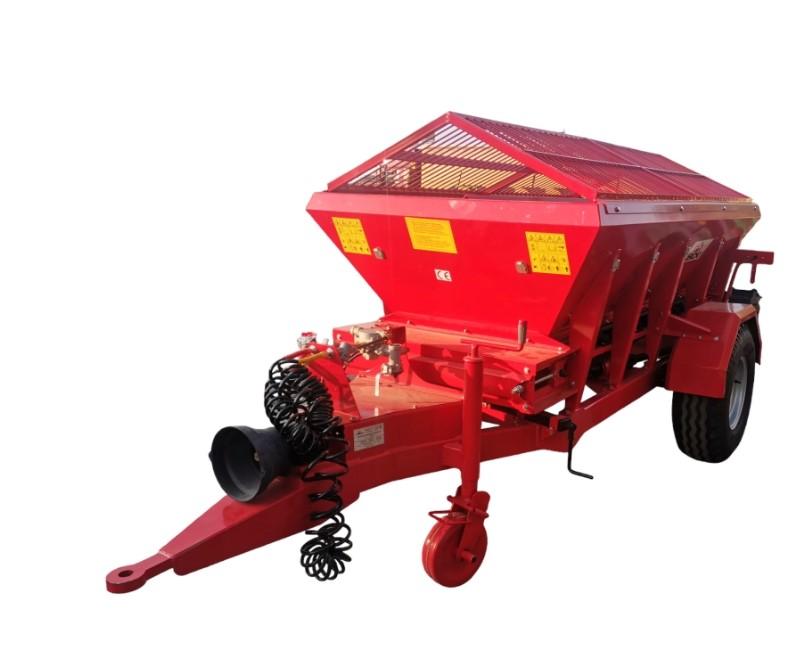

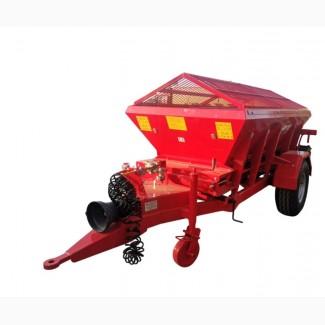

Sand spreader, salt Lisicki N062, Kyiv

The trailed belt spreader is designed for spreading sand, salt, road reagents in autumn and winter on roads, highways, squares, sidewalks.

It is aggregated with tractors with a power of 60 hp or more, equipped with a power take-off shaft and a traction coupling device.

The spreading mixture is fed on the belt conveyor through the metering valve to theworking disks with blades.

The drive of the belt anddiscs spreading is carried out through the cardan shaft from the PTO of the tractor.

The spreader is equipped with pneumatic service brakes and a mechanical parking brake.

12 V lighting equipment is installed for traffic on public roads.

Technical characteristics:

Length: 4600 mm

Width: 1880 mm

Height: 1430 mm

Capacity: 2.1 (m³)
(//tractor-service.com)
Maximum load capacity: 3 t

Working spreading width: 4-12 m.

Operating speed: 4-10 km/h.

Transport speed: up to 25 km/h.

Number of working disks: 2 pcs.

Conveyor: belt

Disc drive: mechanical

Required power of the tractor: from 60 l.

Working speed: 4 - 10 km/h

PTO speed: 540 rpm

Sizetire: 11.5/80-15.3

Weight: 960 kg
