Equipment for the production of pipes with polymer coating, ECORESIST.

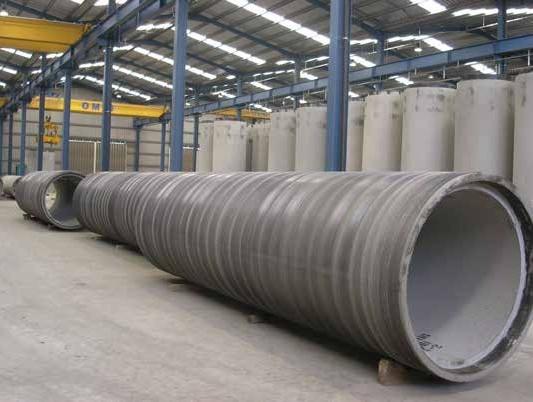

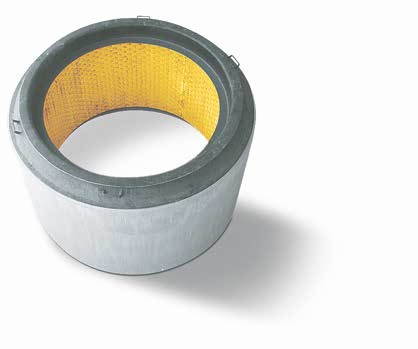

Concrete pipes made by the ECORESIST-liner system machine are continuously covered with a corrosion-resistant polymer material in the middle.

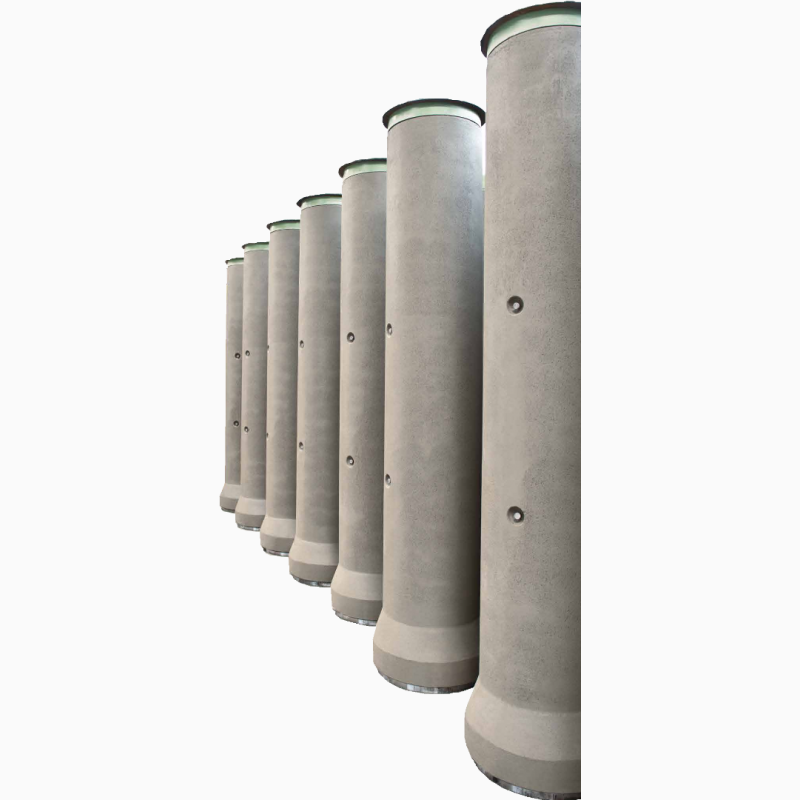

Securely encased in a load-bearing and bend-resistant concrete shell, ECORESIST pipes with polymer sockets and plugs guarantee an accurate fit, resistance to lateral loads and ease of installation.

ECORESIST pipe bell and bell consists of ready-made impact-resistant cast elements, the properties of which complement those of the lining.

Installation is simplified with two ball-head anchors embedded in the pipe material and a spacer ridge embedded in the socket base.

Certificate of the German Institute of Building Technologies DIBt No. Z-42.1-515

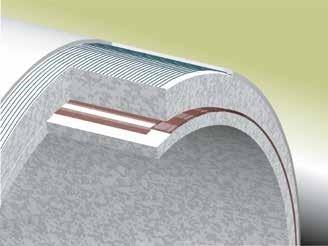

 A high-strength, 3-layer wash-resistant polymer jacket with material properties conforming to DIN 8061 covers the entire pipe thread.

These precision fit lined pipe joints (butt and sleeve) provide shock and impact protection.

Generative fixation.

Integrated sealing system.

Between the concrete and the polymer pipe is achieved in the shrinkage phase during the hardening of the concrete. This polymer concrete compound compensates for elongation caused by temperature fluctuations.

The integrated sealing system prevents installation failures and guarantees absolute watertightness at 100% shear forces and maximum deflection, even up to 2.5 bar.

Pipe after pipe - the highest quality standard.

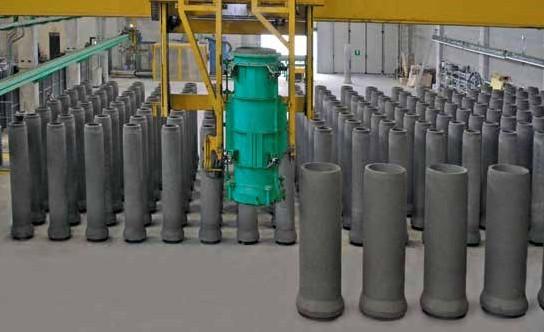

Developed for large volumes, the ECORESIST system has convincing economic advantages.

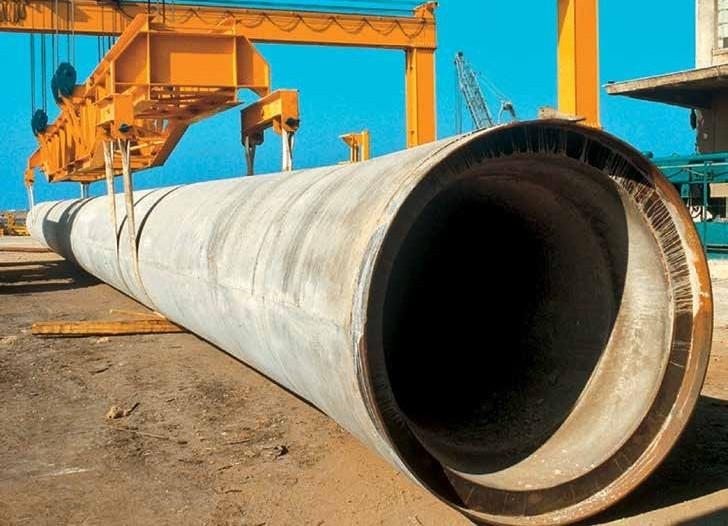

Thanks to the patented ECORESIST production technology, concrete pipes are manufactured with a solid internal polymer coating resistant to corrosion.
(//tractor-service.com)
This allows them to withstand contact with aggressive environments, such as biogenic sulfuric acid. In addition, high resistance to pressure washing and absolute waterproofing make them the best choice for long-lasting sewage pipelines.

ECORESIST is a proven technology for the highest quality products.

Concept:

A fully automated production process with computer control ensures consistently high product quality.

A short period of readjustment is an additional guarantee of perfect efficiency of the equipment.

Low wear, low operating costs and low energy consumption are guaranteed.

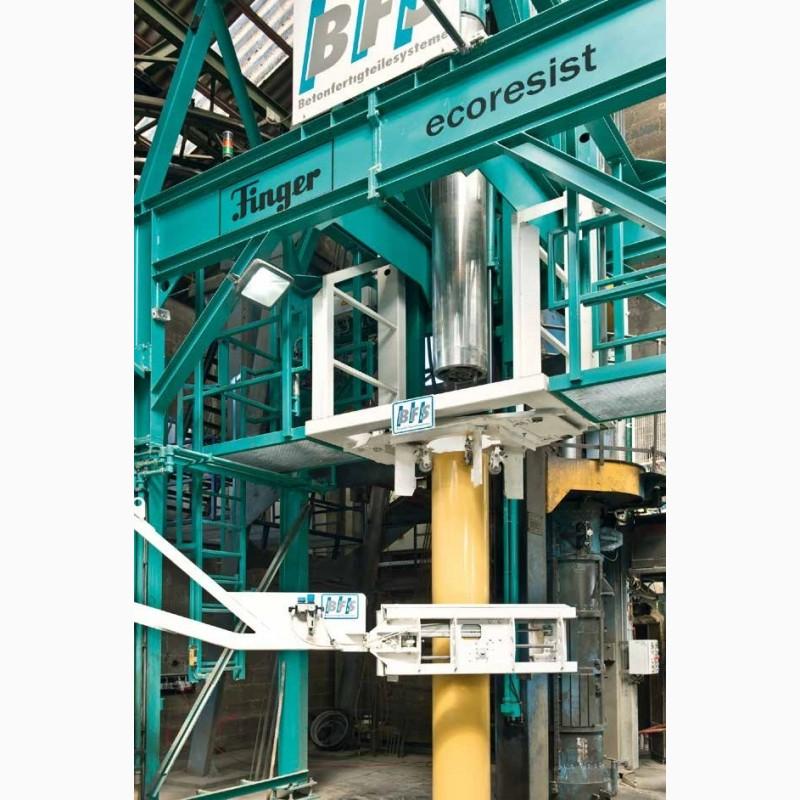

ECORESIST Thanks to the combined control of the pipe-forming machine and the installation of the liner, the sequence of operation of the system is perfectly coordinated.

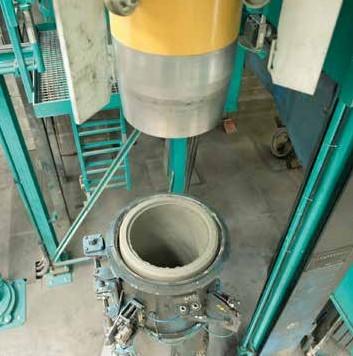

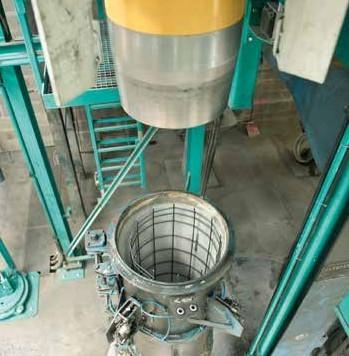

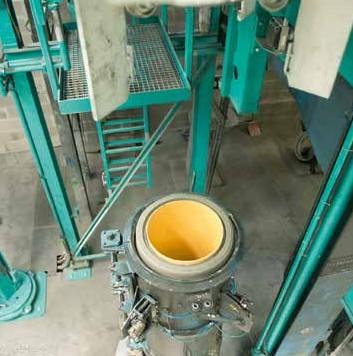

As soon as the mold with the raw pipe rotates to the insertion station, the polymer pipe is pressed from the top.

New BFS ideas are additional benefits for our customers.

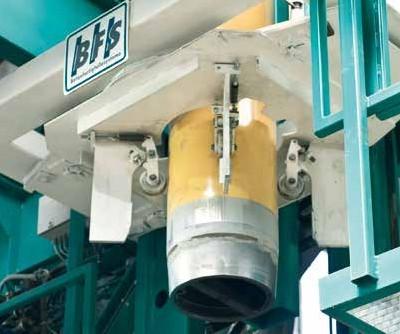

The installation of the BFS liner unit can be integrated into both new and existing Afinitas-BFS concrete forming machines.

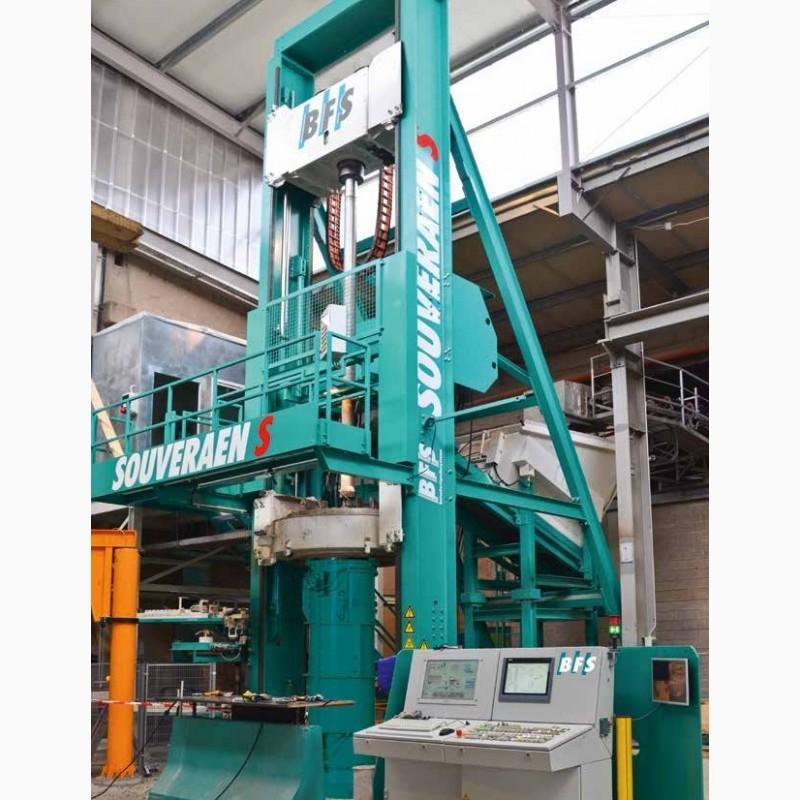

As an additional option, it complements the BFS-SOUVERAEN installation.

S-Compact is a sealing system.

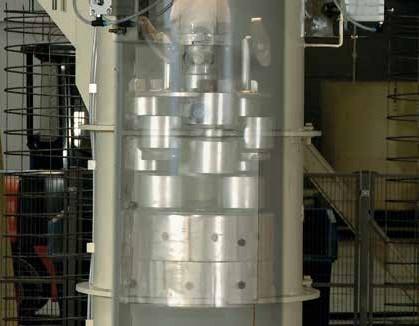

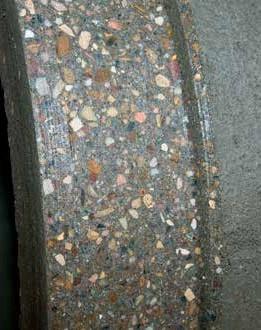

The patented BFS compaction tool is the basis of the compaction process.

Roller head technology with four (4) layers of rollers ensures no loose areas.

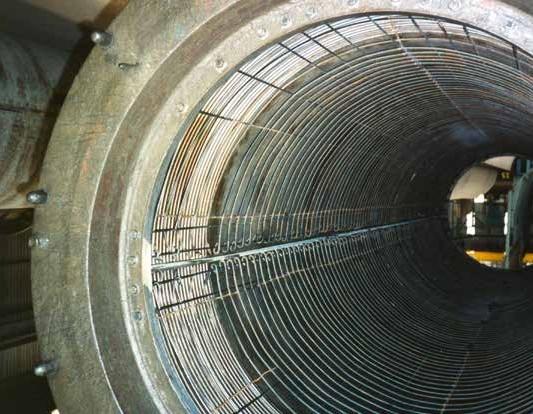

Thanks to counter rotation, the reinforcing frame is perfectly immersed in the concrete, and its twisting is minimized.

Obviously, all components are designed for a long service life.
