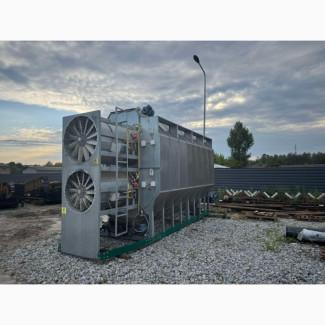

Second-hand grain dryer Sapphire 200 tons per day, Kyiv

Galvanized grain dryer, modular. Model 1082. Designed to work in streaming mode. In good condition.

The grates are stainless, equipped to work on propane - butane. Can work in two modes: "Full Mode" and "Heating/Cooling" mode.

The productivity of thisgrain dryer in "full mode" mode is 200 tons per day

In the "heating/cooling" mode - 110 tons per day.

Consumption of propane - butane for removal of 1 ton - percentage of moisture, l

2.2

Productivity of grain dryer 1082 (for corn) chilled grain

Reduction of 15% moisture from 29% to 14%, t/h

3.2

Reduction of 10% moisture from 24% to 14%, t/h
(//tractor-service.com)
4.6

Reduction of 5% moisture from 19% to 14%, t/h

6.5

Electric power of grain dryer

Total capacity of the grain dryer, kW/h

31

WORKING PRINCIPLE:

The fan injects a flow of air from the environment into the chamber. The air stream is heated by passing through the burner. Next, the heated air passes through the inner chamber 1 m long, ensuring the uniformity of the temperature of the drying reagent at any point of the chamber. The inner chamber is a cylinder 1 meter long, which allows you to place the burner near the very entrance to the grain dryer and prevents the direct flame from hitting thegrain column.

The grain enters the upper hopper, and the auger located there gradually fills the columns. The columns form a jacket around the mine, on which hot air is forced. When all columns are fully loaded, the grain loading auger automatically turns off.

The inner and outer walls of the columns are made in the form of sieves with appropriate perforation, which allows to effectively blow the grain layer (36 cm), maintaining the temperature set by the operator.

In the lower part of the dryer there are dosing rollers, the speed of rotation of which regulates the time the grain stays in the columns. This is what ensures certain drying modes. Metering rollers feed the dried grain to the lower discharge auger, which transports the grain to the conveyor systems for further feeding into transport or storage.
