Harrow BSH-9, 6 m. Harrow from the manufacturer. Toothed harrow, Poltava region.

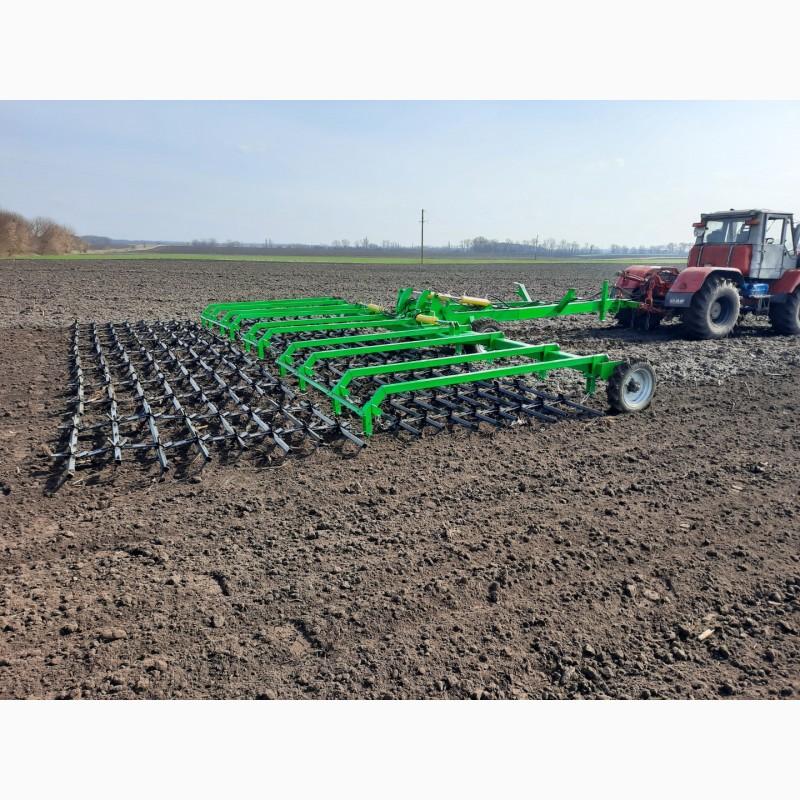

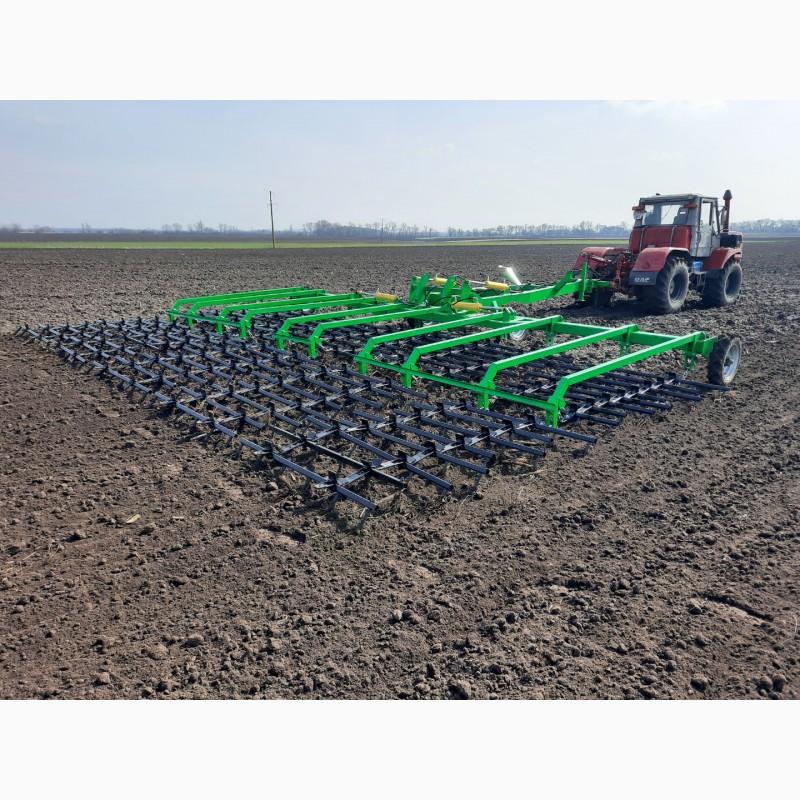

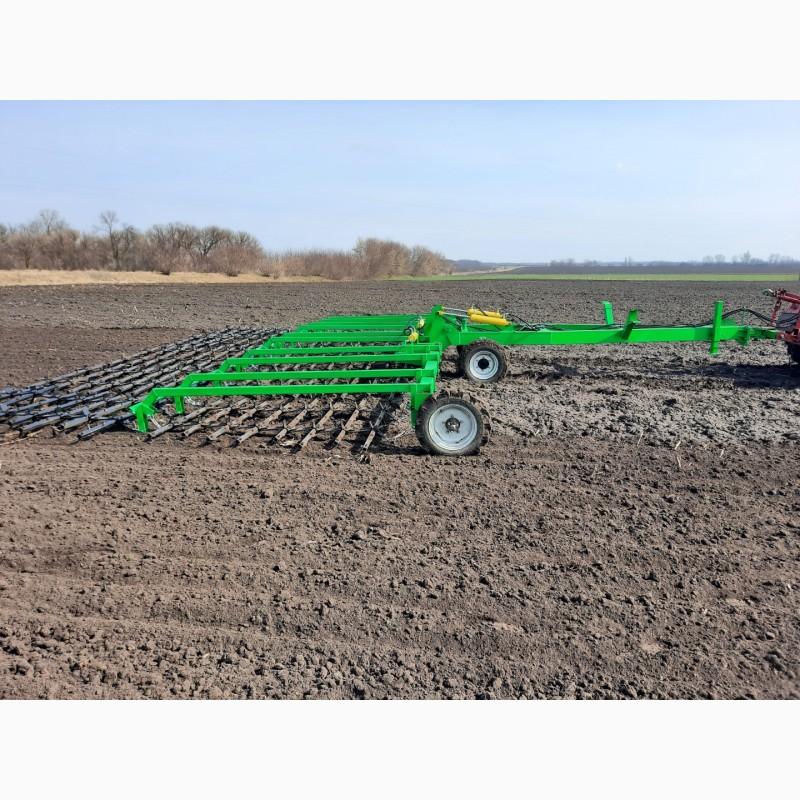

BSH-9.6 trail harrow has good performance. This is the main unit for farming, intended for surface and deep loosening of the soil. The harrowing process flattens the surface of the soil, contributes to the destruction of the crust, prevents the soil from drying out and prepares the fields for further agricultural work.

The trail harrow BSH-9.6 provides:

- loosening and leveling of the field surface;

- destruction of the crust in the soil to fight weeds in the "white thread" stage;

- creation of a uniform loose layer of soil to reduce moisture evaporation;

- processing of wintergrain crops at high speeds;

- closure of soilherbicides;

- reduction of soil erosion;

- soil preparation for sowing.

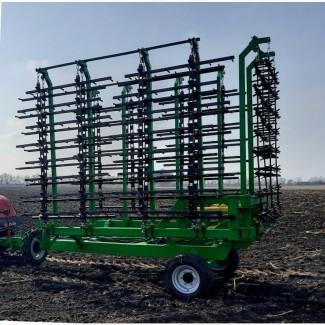

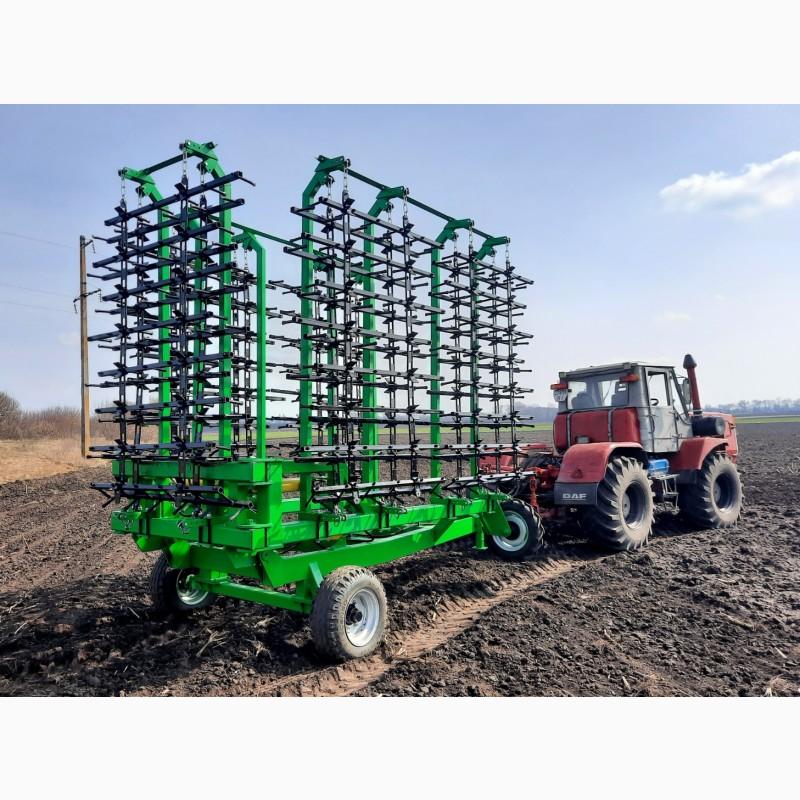

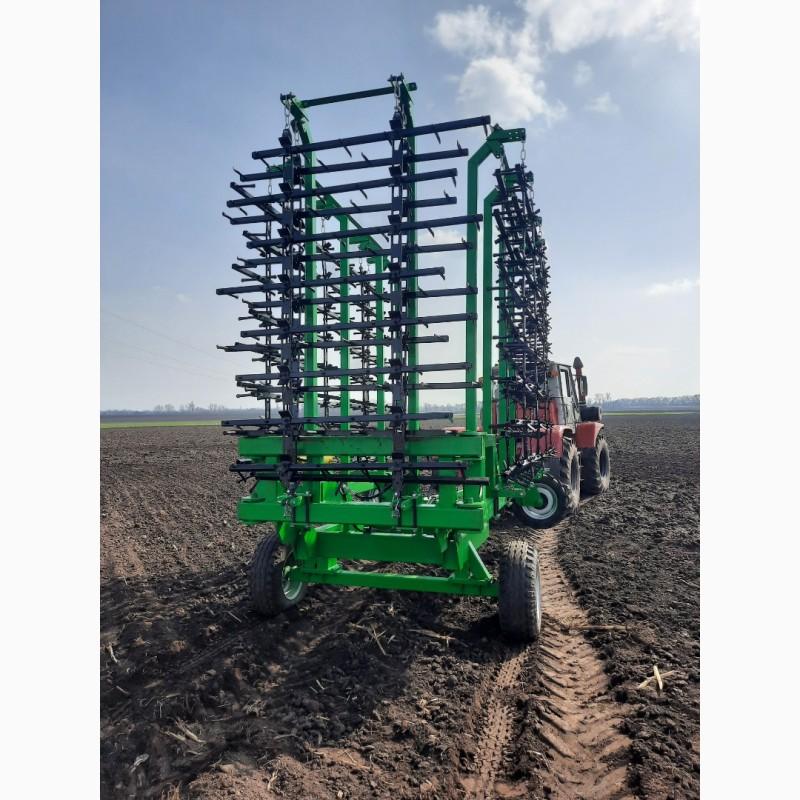

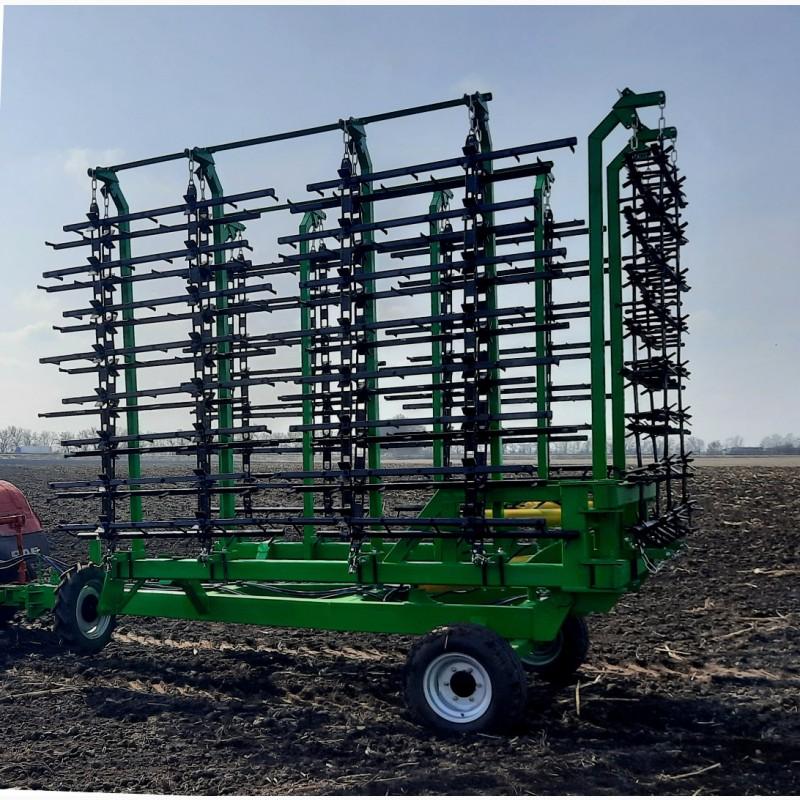

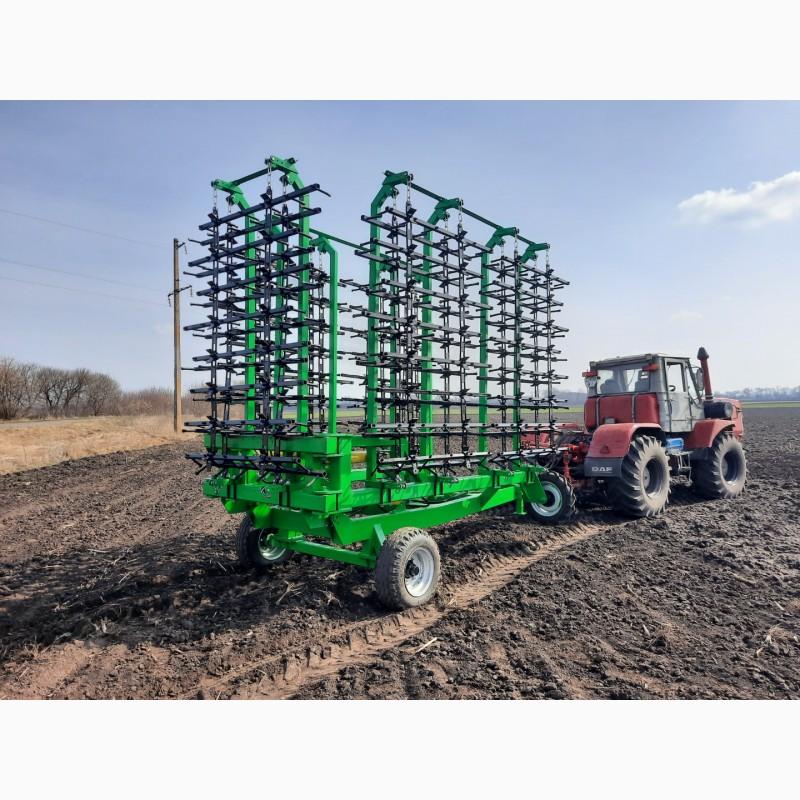

The trailing harrow also has significant advantages when folding the working sections of the harrow into the transport position, which provides optimal dimensions for easy transportation of the unit to the place of work on general purpose roads.

The working body is a tooth made from a square of 65G steel with appropriate heat treatment. The use of a square stamped at a high temperature on a sharp wedge ensures the operation of its cutting edge and wedge working surface with a self-sharpening effect. A sharp wedge easily penetrates the soil. It is attached to the section using an M14 self-tapping nut. The links that collect the beams in the train are made with minimal backlash, which provides stability to the train during operation without wear from track to track. Stops stamped from sheet steel, installed on the tooth beam, ensure the necessary angle of installation of the teeth - 30° or 45° from the vertical. The structure of the train consists of sixteen load-bearing beams with teeth. The distance between the bars is 310 mm. The arrangement of the teeth with an interaxial distance of 40 mm. ensures complete coverage of the working area over the entire width of the grip.

The name of the unit is the trailing harrow BSH-9.6

Harrow type - trailed.

Aggregated with tractors -180-240 hp.

Productivity - 7.5 ha/h.

Working speed - 8-12 km/h.(//tractor-service.com)

Transport speed - up to 20 km/h.

Gripping width - 9.6 m.

Processing depth - 40-80 mm.

Number of sections - 10 pcs.

Number of rows (bars) – 16 pieces.

Number of teeth - 480 pcs.

Angle of inclination of the tooth - 30° or 45°

Overall dimensions during operation, no more than: 195

довжина - 10750 мм

width - 9640 mm

height - 1200 mm

Overall dimensions in transport position, no more than:

length - 6000 mm.

width - 2800 mm.

height - 4100 mm.

Unit weight - 3100 kg.
