Excavating plough. A clamp for digging seedlings. Pidkopkka saplings, Poltava region.

We provide compensation of 25% of the cost of the bracket.

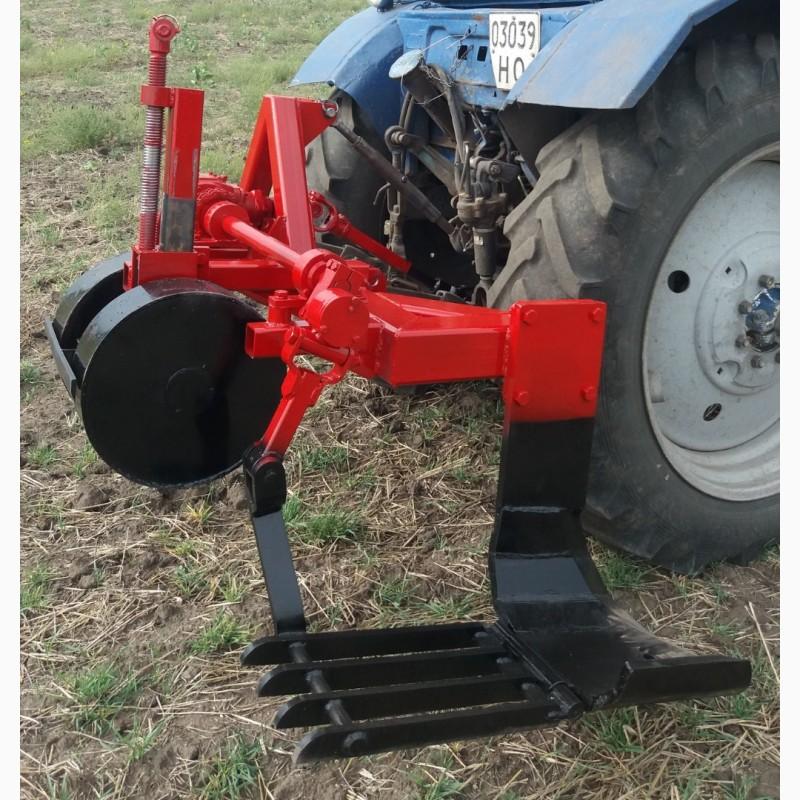

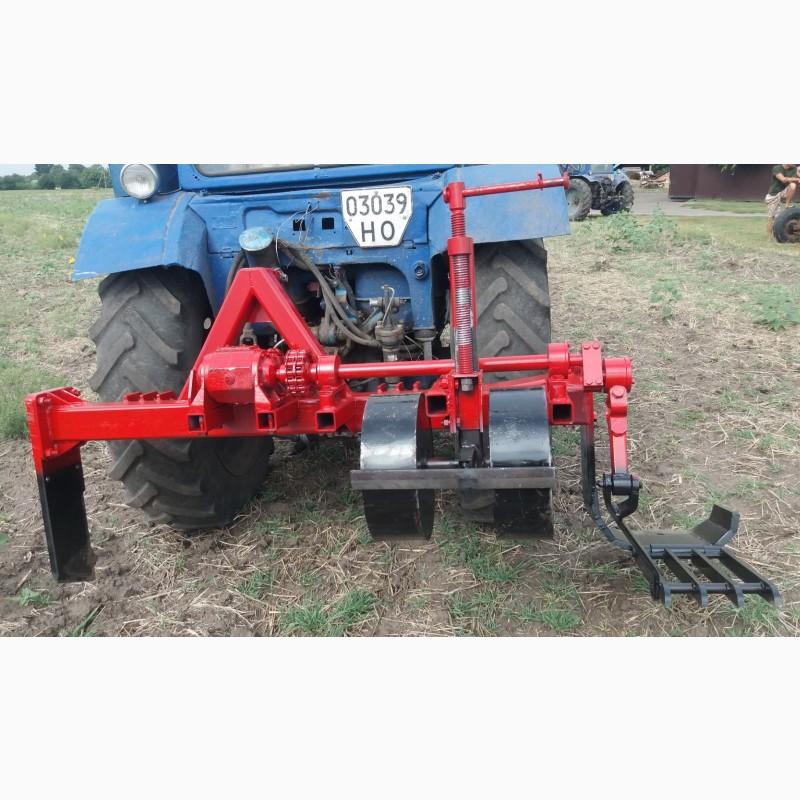

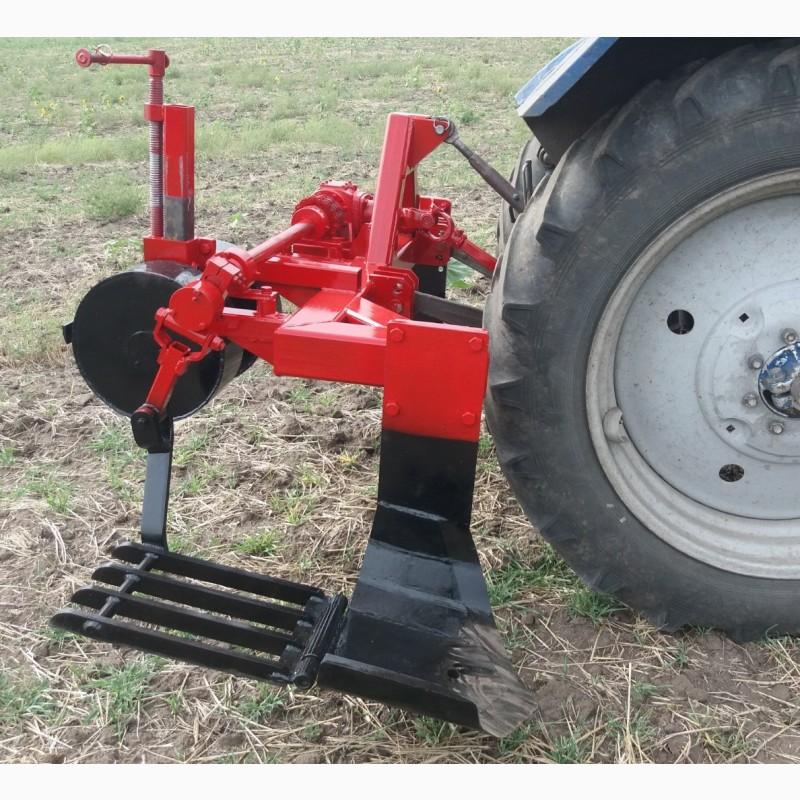

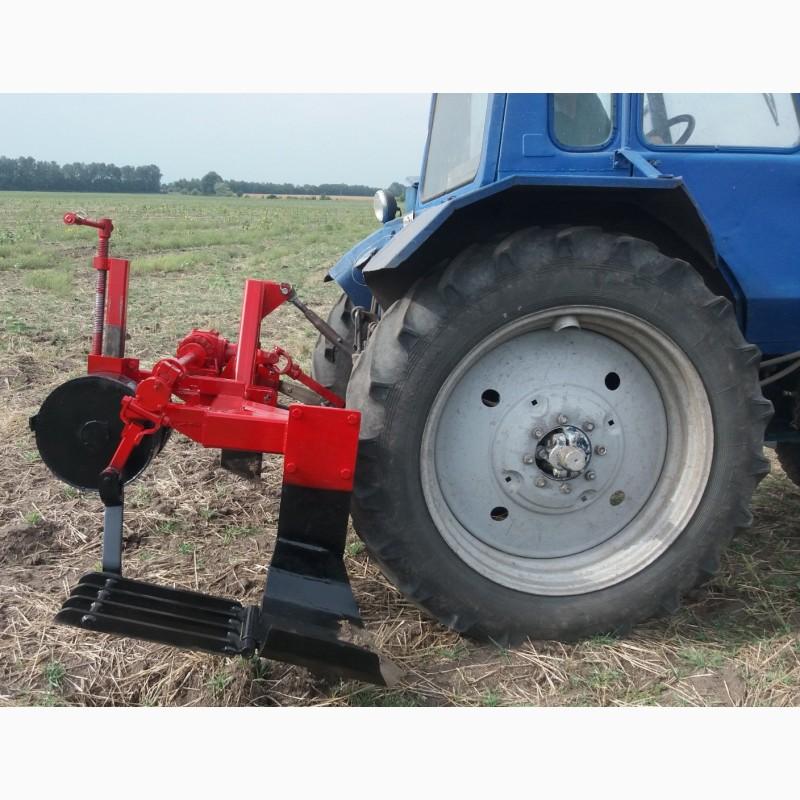

Side excavation clamp SVB-1 New clamp with vibrator

We make excavation brackets. The price is negotiable.
The digging clamp has been tested and has good performance. For digging, it is not necessarya tractor with great effort, in general, an MTZ-80 or YuMZ is sufficient. A vibrating shaker is installed on the bracket, which facilitates the collection of seedlings during digging. The bracket has two supportwheels, which gives us the advantage of smoothly moving the bracket along the row following the excavation. For a more detailed review, we recommend watching the video on the YouTube channel.
General characteristics
Brand: SVB-1
The method of attachment to the tractor: mounted
Aggregated with tractors: MTZ 80/82, MTZ 890/892, YuMZ
Working speed - up to 2.5 km/h.
The main working body - fossil knife - 1 pc.
Characteristics of the knife:
Knife thickness - 25 mm. Art. 3
The angle of inclination of the knife is 15 ° degrees.
Excavation width - 450 mm.(//tractor-service.com)
Excavation depth - 450 mm.
Height adjustment: support wheels, 2 pcs.
The method of adjustment is manual.
Overall dimensions of the wheel base of the tractor, 1900 mm.
Additional digging mechanism - staple shaker - 1 pc.
The shaker is located parallel to the fossil knife.
Oscillations of the shaker, mm. - 60-70
The drive of the vibration mechanism is a PTO gearbox 540 rpm. or by the movement of the wheels
Type single-stage - conical
Gear ratio 1:1
Side knife of staple support, 1 pc.
Overall dimensions:
Length 2400
Width 1300
height 1200
Weight - 400 kg.
