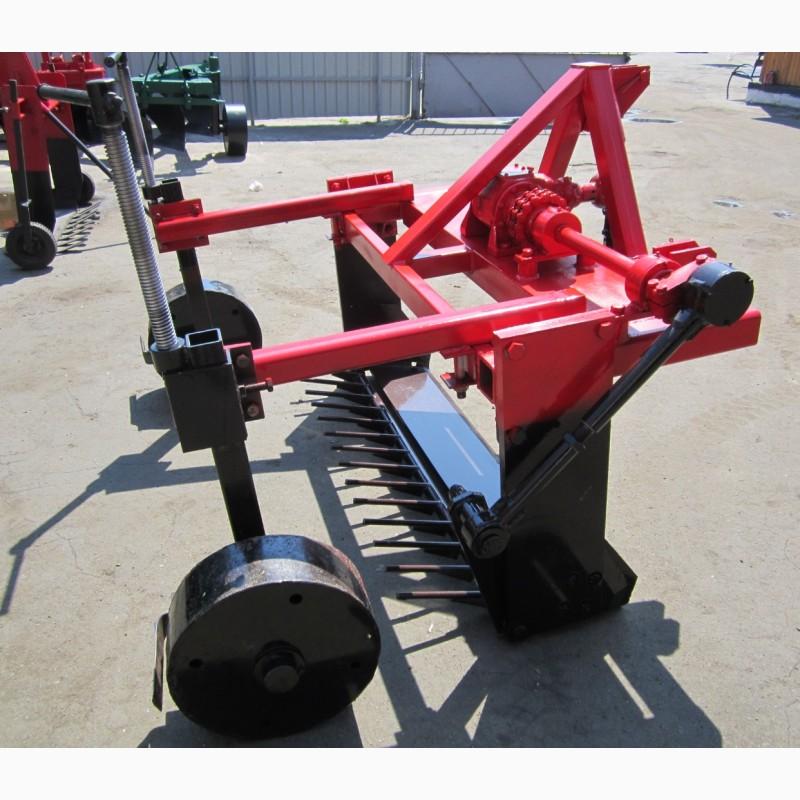

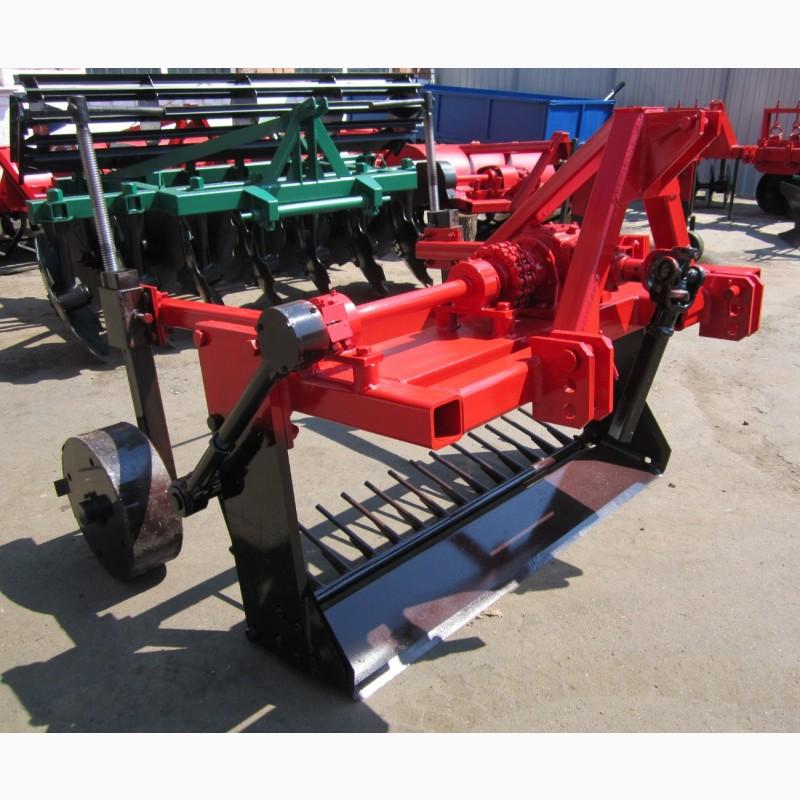

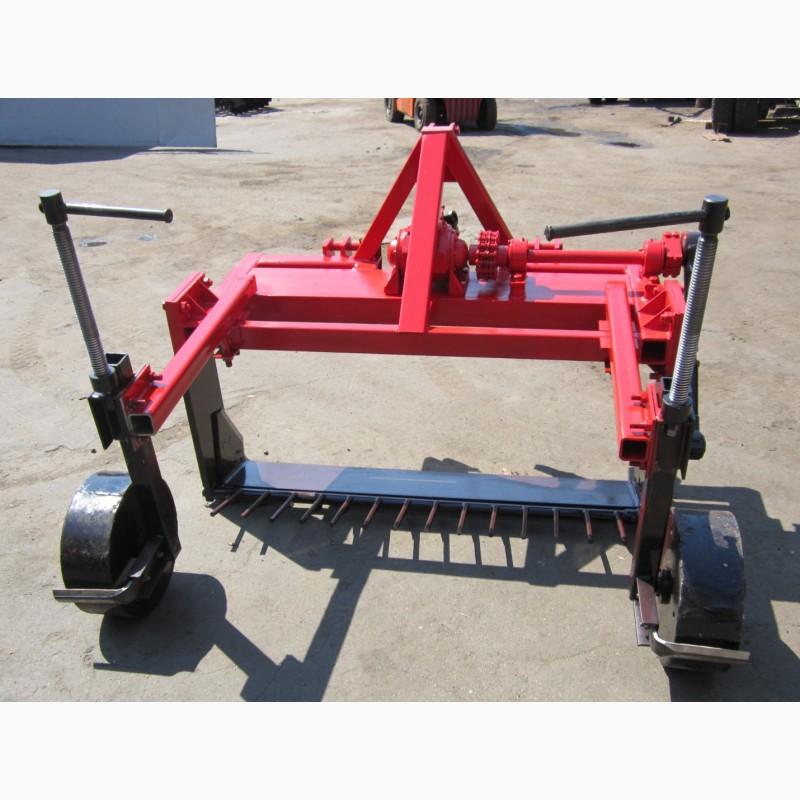

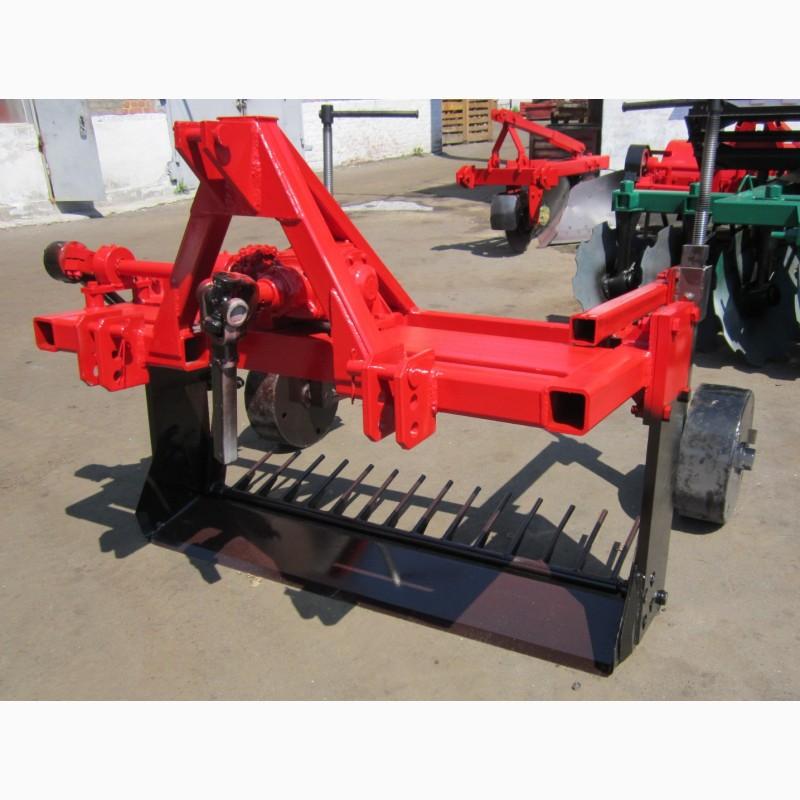

A clamp for digging up garlic, onions, carrots. Excavation bracket SVCH-1, 45, Poltava region.

Clamp for digging garlic SVCH-1.45 with a shaker - designed for digging garlic to a depth of 300 mm.
General characteristics
Brand - Microwave-1.45
The method of attachment to thetractor - hinged
It is aggregated with tractors of class 1.4; MTZ 80/82, MTZ 890/892.
Excavation width - 1450 mm.
Excavation depth - 300 mm.
Height adjustment - supportwheels.
The method of adjustment is manual.
Working speed - up to 2.5 km/h.
The main working body - a knife, - 1 pc.(//tractor-service.com)
Characteristics of the knife - B=12 Art. 65G
Excavation mechanism: staple shaker, - 1 pc.
Adjusting the tilt of the shaker is manual.
Oscillation of the shaker - 60-70 mm.
The drive of the vibration mechanism is a 540 rpm PTO gearbox. or by the movement of the wheels.
Type - single-stage, conical.
Gear ratio - 1:1
Overall dimensions:
Length 2100 mm.
Width - 1400 mm.
Height - 1100 mm.
Weight 450 kg.
