Line for frozen berries, Poltava region.

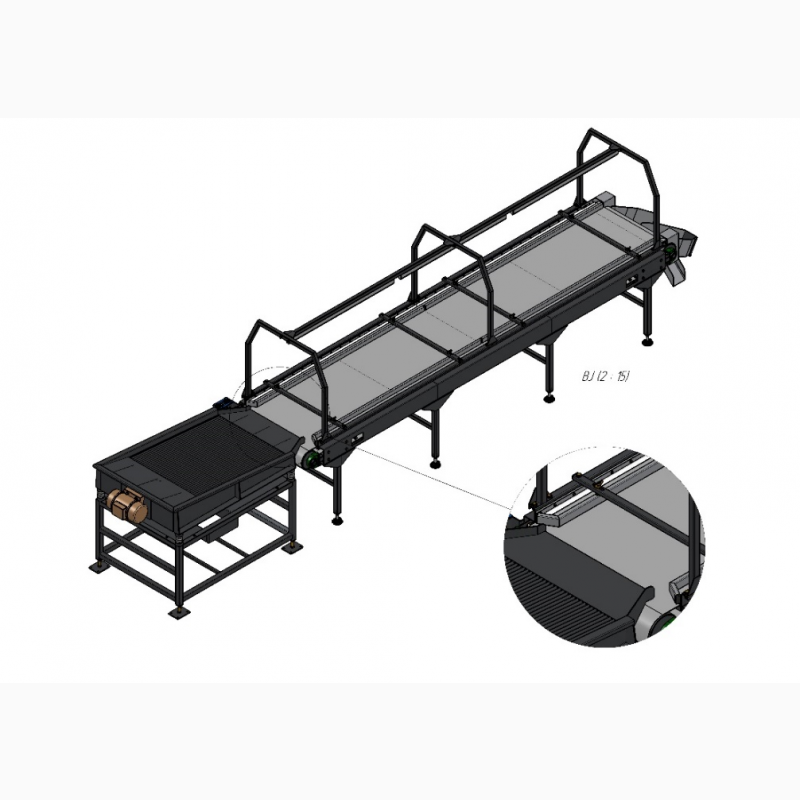

Line for calibration and inspection of berries (strawberry,raspberry, frozenberries)
We offer a comprehensive solution for calibration and inspection of berries, which consists of: a calibrator for frozen berries and an inspection table.

Calibrator:

Overall dimensions: 1620×1100×1300 mm
Working length: 1000 mm
Equipment width: 720 mm

Complete set:

Vibro sieve with slotted sieve - 1 pc. (removable)
Pitch of sieve bars: 10 mm
A tray at the end of the calibrator for safe transfer of the product to theinspection table
A 0.37 kW vibration motor with a frequency converter is installed.
The wire of the control box is protected by a corrugated pipe.
Contact parts: stainless steel AISI 304
Frame and supports: structural steel with powder coating.

Inspection table for berries
Suitable for inspection of any frozen berries.(//tractor-service.com)

Main characteristics:

The length of the conveyor along the axes of the drums: 3000 mm.
Belt width: 800 mm
Belt speed: 0.2–0.3 m/s
Adjustable height: 850-950 mm
Conveyor: stationary
Complete with: flow divider and lighting
Drive: 0.75 kW gear motor + frequency converter
Contact parts: stainless steel AISI 304
Frame and supports: structural steel with powder coating.

Advantages of the solution:
 -  High quality berry calibration
 - Ability to work with frozen berries
 - Speed and height adjustment of the inspection table
 -  Compactness and ease of maintenance
 -  High reliability and ease of integration into the production line

It is also possible to purchase the equipment separately.
