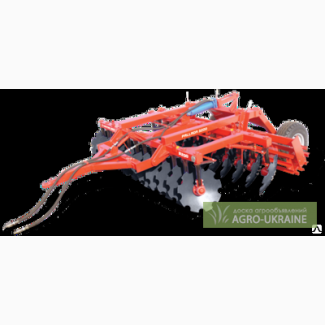

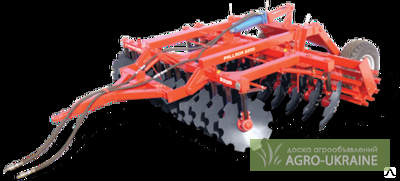

Trailed disc harrow BDP 3200 (Pallada 3200), Kharkiv region.

Pallada 3000 and Pallada 3200 - trailed disk harrows intended for resource-savingpre-sowing soil treatment for sowing grain, industrial and fodder crops, destruction of weeds and grinding of crop residues after harvesting crops, as well as grinding, leveling and compaction of the soil after disking.

Disk harrows are intended for use in soil and climatic conditions with soil moisture up to 27% and soil hardness in the cultivated layer up to 3.5 MPa, as well as in fields with a large amount of crop residues.

Each disc of the harrow is installed on an individual stand, which allows the harrow to work in fields with a large amount of plant residues and weeds, excluding the winding of plant residues on the axis of the disk and clogging of the space between the disks, and also ensures high maintainability of the unit.

The design of the unit provides smooth adjustment of the angle of attack of each row of disks within the range from 0° to 30°, which allows you to optimally adjust the harrow for different types of soil.

The train-roller is intended for mixing plant residues with the soil, leveling and compacting the soil.

MAIN CHARACTERISTICS
Pallas 3000 Pallas 3200
Unit type
trailer trailer
Productivity
ha/time
to 2.9 to 3.6
Working speed
km/h
to 10 to 10
Transport speed
km/h
to 20 to 20
Width of capture
m
3.0 3.2
Processing depth
mm
120±20 120±20
Angle of attack of disks
hail
0...30 0...30
Number of rows
piece(//tractor-service.com)
2 2
Number of cutting units
piece
22 24
Distance between rows of discs
mm 950 950
Diameter of working bodies
mm
560 560
Distance between disk blades
mm
250 250
Overall dimensions in working position
mm
4430x3000x1770 4430x3350x1770
Structural mass
kg
1470 1665
Powertractor (not less)
hp
90 90
QUALITY INDICATORS OF THE PERFORMANCE OF THE TECHNOLOGICAL PROCESS OF SOIL TREATMENT
Ridged soil, no more
mm
50
Lumps with a size of 0...25 mm, not less than
%
85-100
Weed trimming
%
100
Grinding plant residues
%
100
