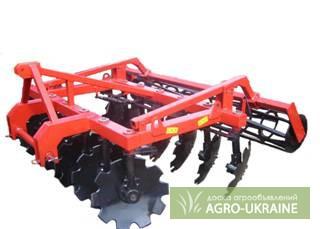

Harrow harrow LDV-2.4, Kharkiv region.

Purpose: loosening of untreated compacted soil of different mechanical composition, crushing post-harvest residues of long-stemmed crops, cutting weeds and other vegetation in untreated fields after harvesting agricultural crops.The peeler works at humidity up to 30%

Distinctive features: each disc is placed on an individual rack and is deflected from the vertical plane. The absence of disk batteries in the design of the common axis, which allows you to work in wet weather, on lands with a large amount of weed vegetation, while winding on the axis of the disk and clogging of the disks is excluded. There is no need to use cleaners in the design, as the disc is self-cleaning during operation. The frame is made of a square solid pipe.
Technical characteristics

Brand
LDV - 2.4
It is aggregated with tractors of the traction class
1.4
Type
in the spring
Productivity, ha/hour
to 1.42
Working width of capture
2.4
Processing depth for one pass, cm
to 15(//tractor-service.com)
Working speed, km/h
to 15
Dimensions in working position, mm :
length
2220
width
2500 height
1400
Dimensions in transport position, mm :
length
2220
width
2500
height
1400
Total mass, kg
890
