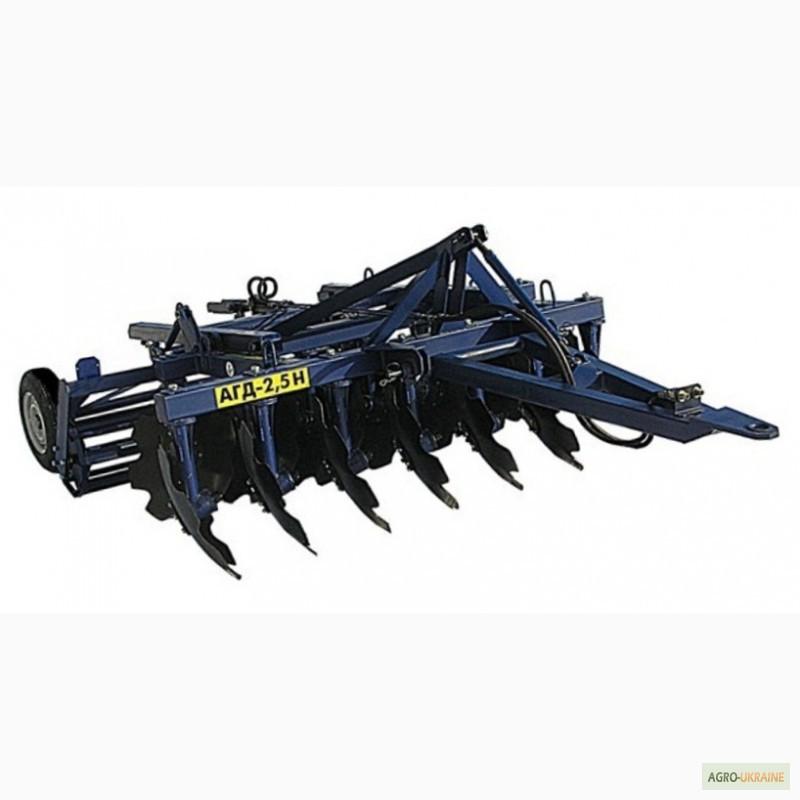

Aggregate disc trailer AGD – 2.5N, Kharkiv region.

Unitdisc trailed AHD - 2.5Н
intended for the processing of compacted soils of different mechanical composition with grinding and embedding of harvest residues in the soil at
The unit is aggregated with tractors of the 14 kN class (80 hp and higher)
The unit can be operated in all soil and climatic zones.

Trailed/mounted type
Gripping width, m 2.5
Productivity ha/h, 1.8...2.2
Soil tillage depth, cm 8...18
Working speed of movement, km/h 8.0...12.0
Transport speed, km/h 20
Weight of the product, kg 1160(//tractor-service.com)
Overall dimensions, mm, no more.
length 4800 ± 150
width 2800± 150
Ground clearance, mm, not less
Service personnel, people (tractor driver) 1
Guaranteed resource, ha 1240
Transfer to transport and working position hydraulic.
Options for using AGD-2, 5Н: 170
- как прицепной агрегат, присоединяется к трактору с помощью прицепного устройства;
- as an intermediate option, half-mounted;
- as a mounted tool, the towing device will be moved to a vertical position,
disconnect the wheel drive, hang the unit on the three-point systemtractor
