Disk soil tillage unit AGD - 4.5, Kharkiv region.

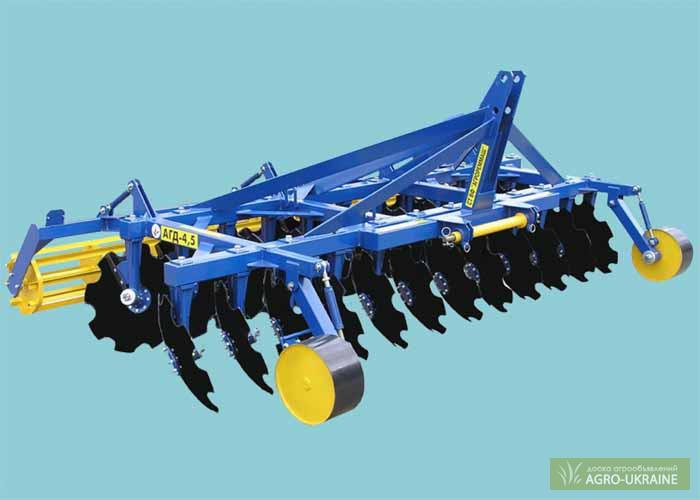

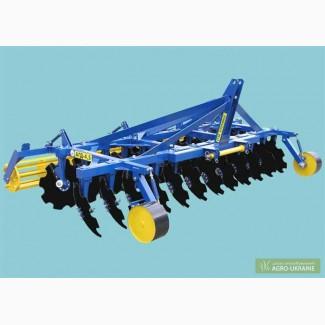

Aggregate soil tillage disc AGD - 4.5

The unit is intended for the cultivation of compacted soils of variousmechanical composition with grinding and incorporation of harvest residues into the soil.

TECHNICAL CHARACTERISTICS

Hinged type
The width of the grip is constructive, m 4.5±0.1
Fuel consumption, l/ha 11.5-13.5
Productivity per hour of prime time, ha, not less than 3.6...5.1(//tractor-service.com)
Depth of tillage, cm 8...18
Operating speed, km / h 8.0...12.0
Transport speed, km / h, no more than 20
Weight of the product (without ZIP), kg 1750 ± 20
Overall dimensions, mm, no more than 155
довжина 2700
width 4900
height 1700
Ground clearance, mm, not less than 300
Service personnel, person. (tractor driver) 1
Guaranteed resource, 2200 ha.
