Soil cultivation unit trailed disc AGD - 3.5 N, Kharkiv region.

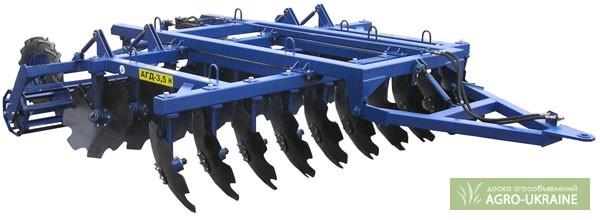

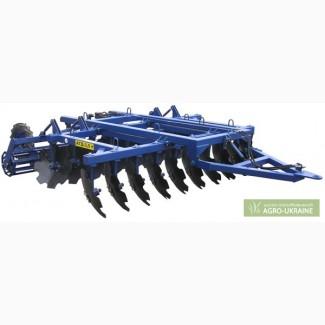

Aggregate soil tillage disk trailed AGD - 3 .5 N

The unit is intended for the processing of compacted soils of various mechanicalcomposition with grinding and incorporation of harvest residues into the soil under the following conditions:

- soil hardness no more than 3.5 MPa, 145

- вологість ґрунту не більш 27%,

- height of harvest and plant residues up to 30 cm.

The unit is designed to work with tractors of the 30 kN class ( T-150 )

The unit can be operated in all soil and climatic zones.
(//tractor-service.com)
TECHNICAL CHARACTERISTICS

Trailer type

Constructive width of capture, m 3.5±0, Depth of tillage, cm 8...18
Productivity, ha \h 2.6...4.2
Operating speed, km/h 8.0...12.0
Weight of the product (without ZIP), kg 1750
Transfer to the transport and working position hydraulic Overall dimensions, mm, no more
length 5300
width 4200
height 1000
Ground clearance, mm, not less than 300
Service personnel, person. (tractor driver)1
Guaranteed resource, ha 1830
